High Speed Injection Molding Machine Press Machine For Making Auto Parts
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001-2015 |
| Model Number: | JC-VI-AO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $35,000.00/sets 1-1 sets |
| Packaging Details: | container |
| Delivery Time: | 50 days |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor, Pump | Machine Type: | Silicone Injection Molding Machine |
| Voltage: | 380v | Dimension(L*W*H): | 2600*2000*4000mm |
| Weight: | 11000 | Warranty: | 1 Year |
| Power (kW): | 30.3kw | Key Selling Points: | Famous Brand PLC |
| Applicable Industries: | Manufacturing Plant | Clamp Force Ton: | 200 |
| Injection Volume Cc: | 2000 | Injection Pressure: | 1800 |
| Plunge Stroke(mm): | 400 | Heater Capacity(kw): | 15.3 |
| Gross Weight: | 7.5 | Total Power Kw: | 30.3 |
| Port: | Guangzhou | Clamp Force: | 50-1000 |
| Injection Volume: | 500-4000 | Plunger Stroke: | 300-500 |
| Opening Mold: | 2RT3RT4RT | Gross Weight: | 5.5-10ton |
| Highlight: | High Speed Injection Molding Machine,Auto Parts Injection Molding Machine |
||
Product Description
High Speed Injection Molding Machine Press Machine For making auto parts
Technical parameter
Technical Parameters:
| Model | Unit | 200VI-AO | 300VI-AO | 400VI-AO | 600VI-AO |
| Clamping Force | Ton | 200 | 300 | 400 | 600 |
| Injection Capacity | cc | 2000 | 3000 | 4000 | 6000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 | 1800 |
| Operation table size | mm | 550*560 | 700*700 | 700*700 | 850*850 |
| Min. Mold Thickness | mm | 100 | 100 | 100 | 100 |
| Plunger stroke | mm | 400 | 400 | 400 | 500 |
| Distance of Thermo-plate | mm | 500~600 | 500~600 | 500~600 | 600~700 |
| Distance of Tie bar | mm | 640*310 | 820*395 | 820*395 | 970*500 |
| Die sinking type | 2RT/ 3RT/ 4RT-Upper Ejector-Bottom Ejector | ||||
| Max. Operating Pressure | Mpa | 20 | 20 | 20 | 20 |
| Motor Power | hp | 15 | 15 | 15 | 20 |
| Electric Heating Power | Kw | 15.3 | 24 | 24 | 29.75 |
| Total Power | Kw | 30.3 | 39 | 39 | 48.75 |
| Gross weight | Ton | 7.5 | 9 | 10 | 14.2 |
| Dimension | mm | L2600*W2000*H4000 | L2750*W2265*H4200 | L2750*W2265*H4200 | L3200*W2500*H4350 |
Mahcine Applications :
-

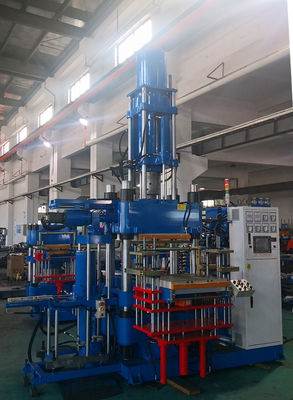

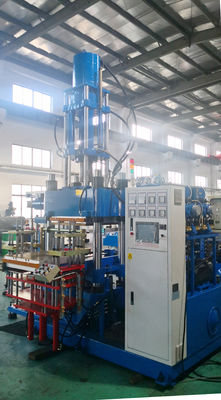

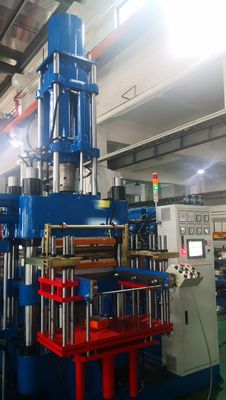

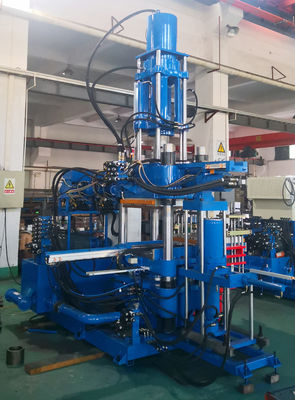

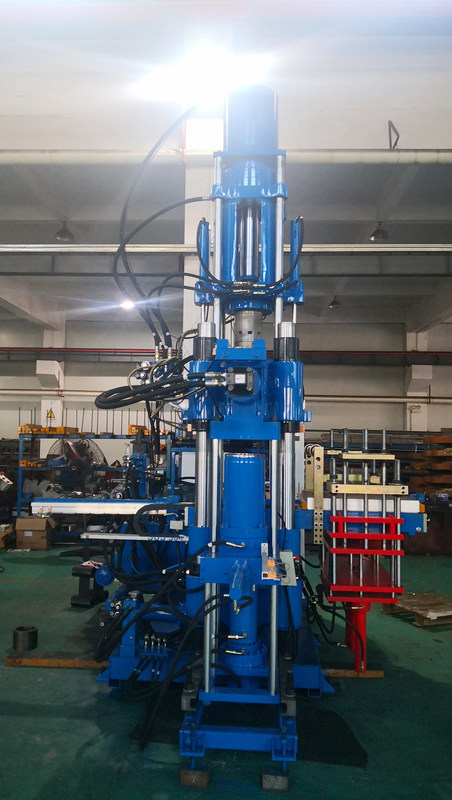

"all-in-out" series silicone rubber injection molding machine is advanced rubber molding machine, it's structure is compact with wide applicability, high efficiency and high precision.
-
Especially it is suitable for the rubber products of complex shapes, exhausting difficultly, difficult to molding, high presision injection molding.
-
Suitable for multilateral, polygonal and other complicated shape products, especially for NBR products, O ring products.
-
Particularly for cooking utensil, sporting goods , medical supplies, auto accessories,high and low voltage electricity, electronic accessory and other high precision applications
-
Cost efficient recommendations and high quality products with continuous improvement is key to our service for customer.
-
we are committed to providing full after-market service to all of our customers by online instructions or video reference.
-
Installation and debugging: Our engineers will teach you about the installation and debugging for free when the machine are finished.
-
After-sales service: We will supply the free repairment on this machine for one year. ( the service is only for natural damage)
