Silicone Rubber Injection Molding Machine for Making Food Grade Silicone Kitchenware and Cookery
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JuChuan |
| Certification: | ISO9001-2015 |
| Model Number: | VI-AO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $26,800.00/sets >=1 sets |
| Packaging Details: | container |
| Delivery Time: | 15 - 20 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Plastic Processed: | RUBBER/SILICONE | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 500 Mm |
| Ejector Force(kN): | 200 KN | Theoretical Shot Volume(cm³): | 2000 Cm³ |
| Injection Rate (g/s): | 100g/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 200 G | Screw Diameter (mm): | 40 Mm |
| Distance Between Tie Bars: | TBD | Weight (KG): | 7500 Kg |
| Type: | Silicone/Rubber Injection Machine | Open Stroke(mm): | 400 Mm |
| Power (kW): | 26.3 KW | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Turkey, Pakistan, India, Russia, Thailand, Malaysia | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, PLC | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Clamp Force(Ton): | 50~1000 | Injection Volume(cc): | 500~10000 |
| Injection Pressure(kgf/xm2): | 1800 | Platen Size(mm): | 300*300~1200*1200 |
| Plunge Stroke(mm): | 300~500 | Heater Capacity(kw): | 8.4~42 |
| Gross Weight(Ton): | 5.5~21 | Port: | Guangzhou |
| Clamp Force: | 50-1000 | Injection Volume: | 500-4000 |
| Injection Pressure: | 1800 | Plunger Stroke: | 300-500 |
| Opening Mold: | 2RT3RT4RT | Gross Weight: | 5.5-10ton |
| High Light: | Silicone Rubber Plastic Injection Parts,100g/s Silicone Rubber Injection Molding Machine,Injection Molding Plastic Injection Parts |
||
Product Description

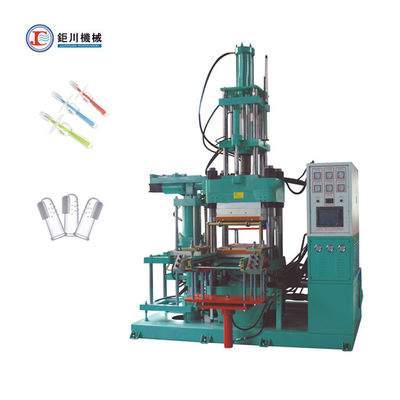

Silicone Rubber Injection Molding/Plastic Injection Parts For Making Silicone Baby Products
Product Description

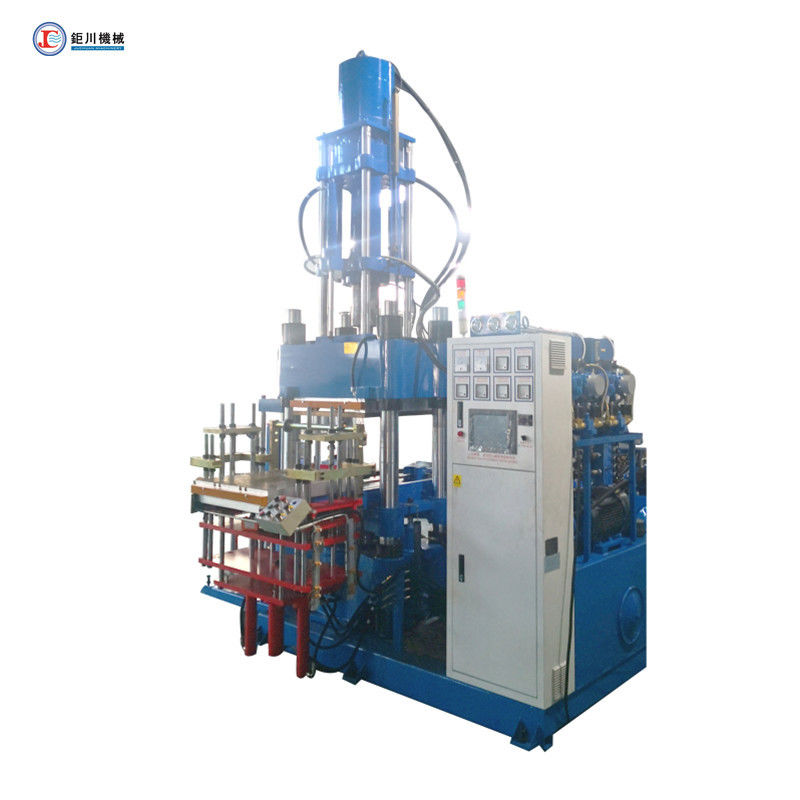

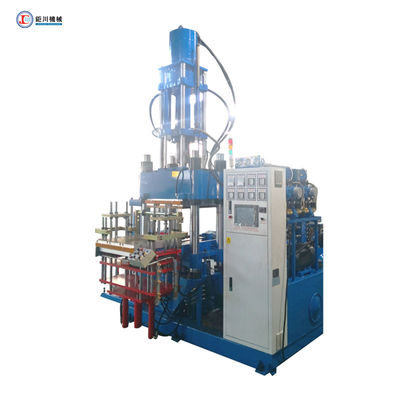

VI-AO Series Vertical "all-in-out" Silicone/Synthetic Rubber Injection Machine
Feature:
- The machine is suitable for automotive, electronic, and high/cold temp precision rubber parts, especially NBR products.
- The machine has an all-in-out structure that eliminates material loss and allows for controllable injecting material temperature.
- The machine is excellent for high precision molding parts with a measuring precision of 1000cc injection volume up to ±0.1 g.
- The machine is 5-10 times more accurate than conventional injection machines, with a measuring precision of 1000cc injection volume up to ±0.1 g.
- The machine has an anti-collision molding system that prevents mold damage occurring from misalignment.
- The machine uses a servo-controlled system that saves energy up to 40%.
- The machine has a proportional backpressure controlling characteristic that ensures accuracy.
| Model | Unit | 50VI-AO | 100VI-AO | 200VI-AO | 300VI-AO | 400VI-AO | 600VI-AO | 800VI-AO | 1000VI-AO |
| Clamping Force | Ton | 50 | 100 | 200 | 300 | 400 | 600 | 800 | 1000 |
| Injection Capacity | cc | 500 | 500 | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Operation table size | mm | 300*300 | 400*400 | 550*560 | 700*700 | 700*700 | 850*850 | 1000*1000 | 1200*1200 |
| Min. Mold Thickness | mm | 50 | 50 | 100 | 100 | 100 | 100 | 150 | 150 |
| Plunger stroke | mm | 300 | 350 | 400 | 400 | 400 | 500 | 500 | 500 |
| Distance of Thermo-plate | mm | 350~450 | 400~500 | 500~600 | 500~600 | 500~600 | 600~700 | 650~800 | 650~800 |
| Distance of Tie bar | mm | 400*140 | 515*230 | 640*310 | 820*395 | 820*395 | 970*500 | 1140*600 | 1340*800 |
| Die sinking type | 2RT-3RT-4RT-Upper Mold-Lower Mold | ||||||||
|
Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 7.5 | 10 | 15 | 15 | 15 | 20 | 20 | 25 |
|
Electric Heating Power |
Kw | 8.4 | 10 | 15.3 | 24 | 24 | 29.75 | 35 | 42 |
| Total Power | Kw | 16.9 | 20.5 | 30.3 | 39 | 39 | 48.75 | 54 | 64.5 |
| Gross weight | Ton | 5.5 | 6 | 7.5 | 9 | 10 | 14.2 | 17.5 | 21 |
|
Dimension (L*W*H) |
mm |
2000*1500 *H2800 |
2400*1650 *3200 |
2600*2000 *4000 |
2750*2265 *4200 |
2750*2265 *4200 |
3200*2500 *4350 |
L3450*W2750 *H4500 |
3750*3050 *5000 |
