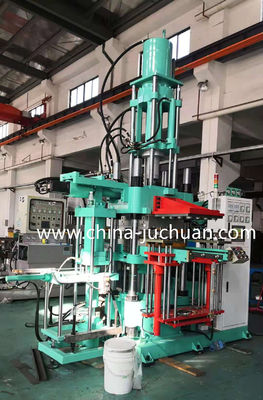

200 Ton Hydraulic Silicone Injection Moulding Machine For Making Silicone Swimming Cap
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUCHUAN |
| Certification: | CE ISO9001:2015 |
| Model Number: | JC-VI-AO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $20,000.00 - $46,800.00/acres |
| Packaging Details: | shrink film packing |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Unit/Units per Month |
|
Detail Information |
|||
| Plastic Processed: | PET | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Injection Rate (g/s): | 18 |
| Machine Type: | Hydraulic | Injection Weight (g): | 1800 |
| Screw Diameter (mm): | 250 | Distance Between Tie Bars: | 500-600 |
| Weight (KG): | 7500 | Type: | Injection Molding Machine |
| Power (kW): | 30.3 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Applicable Industries: | Manufacturing Plant |
| Plastic Type: | Thermoplastic | Automatic: | Yes |
| After-sales Service Provided: | Free Spare Parts, Online Support, Engineers Available To Service Machinery Overseas | Opening Stroke: | 280-1500 Mm |
| Clamping Force (kN): | 200 | Clamp Force(Ton): | 50~1000 |
| Injection Volume(cc): | 500~10000 | Injection Pressure(kgf/xm2): | 1800 |
| Platen Size(mm): | 300*300~1200*1200 | Plunge Stroke(mm): | 300~500 |
| Heater Capacity(kw): | 8.4~42 | Gross Weight(Ton): | 5.5~21 |
| Port: | Guangzhou | ||
| Highlight: | swimming cap injection moulding machine,silicone injection moulding machine,200 ton injection moulding machine |
||
Product Description
200 ton hydraulic silicone injection moulding machine for making silicone swimming cap
Finished product:
Technical parameter
Technical Parameters:
| Model | Unit | 200VI-AO | 300VI-AO | 400VI-AO | 600VI-AO |
| Clamping Force | Ton | 200 | 300 | 400 | 600 |
| Injection Capacity | cc | 2000 | 3000 | 4000 | 6000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 | 1800 |
| Operation table size | mm | 550*560 | 700*700 | 700*700 | 850*850 |
| Min. Mold Thickness | mm | 100 | 100 | 100 | 100 |
| Plunger stroke | mm | 400 | 400 | 400 | 500 |
| Distance of Thermo-plate | mm | 500~600 | 500~600 | 500~600 | 600~700 |
| Distance of Tie bar | mm | 640*310 | 820*395 | 820*395 | 970*500 |
| Die sinking type | 2RT/ 3RT/ 4RT-Upper Ejector-Bottom Ejector | ||||
| Max. Operating Pressure | Mpa | 20 | 20 | 20 | 20 |
| Motor Power | hp | 15 | 15 | 15 | 20 |
| Electric Heating Power | Kw | 15.3 | 24 | 24 | 29.75 |
| Total Power | Kw | 30.3 | 39 | 39 | 48.75 |
| Gross weight | Ton | 7.5 | 9 | 10 | 14.2 |
| Dimension | mm | L2600*W2000*H4000 | L2750*W2265*H4200 | L2750*W2265*H4200 | L3200*W2500*H4350 |
Mahcine Applications :
-
"all-in-out" series silicone rubber injection molding machine is advanced rubber molding machine, it's structure is compact with wide applicability, high efficiency and high precision.
-
Especially it is suitable for the rubber products of complex shapes, exhausting difficultly, difficult to molding, high presision injection molding.
-
Suitable for multilateral, polygonal and other complicated shape products, especially for NBR products, O ring products.
-
Particularly for cooking utensil, sporting goods , medical supplies, auto accessories,high and low voltage electricity, electronic accessory and other high precision applications
Our Services
Our Services Conception:
-
Cost efficient recommendations and high quality products with continuous improvement is key to our service for customer.
-
we are committed to providing full after-market service to all of our customers by online instructions or video reference.
-
Installation and debugging: Our engineers will teach you about the installation and debugging for free when the machine are finished.
-
After-sales service: We will supply the free repairment on this machine for one year. ( the service is only for natural damage)
