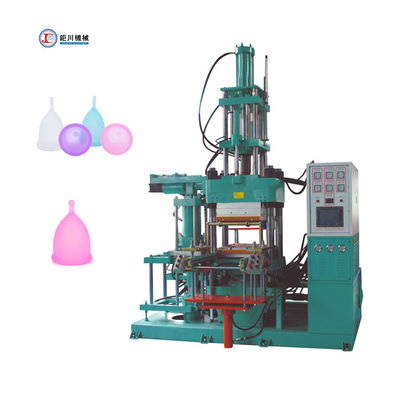

High Accuracy Silicone Injection Molding Machine for Making Silicone Menstrual Cup
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUCHUAN |
| Certification: | SGS CE ISO9001:2015 |
| Model Number: | JC-VF |
Payment & Shipping Terms:
| Price: | $20,000.00 - $46,800.00/sets |
|---|---|
| Packaging Details: | shrink film packing |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Unit/Units per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Clamping Force: | 50~1000Ton | Type: | Injection Molding Machine |
| Plastic Type: | Thermoplastic | Automatic: | Yes |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Injection Weight: | 500~10000cc |
| Injection Rate: | Adjustable | Opening Stroke: | 280-1500 Mm |
| Power: | 16.90~64.5Kw | Clamp Force(Ton): | 50~1000 |
| Injection Volume(cc): | 500~10000 | Injection Pressure(kgf/xm2): | 1800 |
| Platen Size(mm): | 300*300~1200*1200 | Plunge Stroke(mm): | 300~500 |
| Heater Capacity(kw): | 8.4~42 | Gross Weight(Ton): | 5.5~21 |
| Port: | Guangzhou | Clamp Force: | 50-1000 |
| Injection Volume: | 500-4000 | Injection Pressure: | 1800 |
| Plunger Stroke: | 300-500 | Opening Mold: | 2RT3RT4RT |
| Gross Weight: | 5.5-10ton | ||
| High Light: | Menstrual Cup Silicone Injection Molding Machine,High Accuracy Silicone Injection Molding Machine |
||
Product Description
Silicone Menstrual Cup Moulding Injection Machine Price
New Arrival "all-in-all-out" Injection Molding Technology:
- Visible Feeding System:
- Excellent Plasticizing Effects:
- High Temperature Ranges:
- Save Raw Rubber Material:
Machine Technical Charateristics:
- Suitable for automotive and electronic rubber parts, high/cold temperature precision rubber parts, with a focus on NBR products.
- All-in-out structure allows sprueless injection, minimizing material loss, and provides precise control over injecting material temperature.
- Excellent for high precision molding parts.
- Achieves 5-10 times better accuracy compared to conventional injection machines, with a measuring precision of ±0.1g for a 1000cc injection volume.
- Patented Anti-collision Molding System prevents mold damage caused by misalignment.
- Servo-controlled system enables up to 40% energy savings during operation.
- Features a proportional backpressure controlling characteristic for optimal molding conditions.
Technical Parameters:
| Model | Unit | 200VI-AO | 300VI-AO | 400VI-AO | 600VI-AO |
| Clamping Force | Ton | 200 | 300 | 400 | 600 |
| Injection Capacity | cc | 2000 | 3000 | 4000 | 6000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 | 1800 |
| Operation table size | mm | 550*560 | 700*700 | 700*700 | 850*850 |
| Min. Mold Thickness | mm | 100 | 100 | 100 | 100 |
| Plunger stroke | mm | 400 | 400 | 400 | 500 |
| Distance of Thermo-plate | mm | 500~600 | 500~600 | 500~600 | 600~700 |
| Distance of Tie bar | mm | 640*310 | 820*395 | 820*395 | 970*500 |
| Die sinking type | 2RT/ 3RT/ 4RT-Upper Ejector-Bottom Ejector | ||||
| Max. Operating Pressure | Mpa | 20 | 20 | 20 | 20 |
| Motor Power | hp | 15 | 15 | 15 | 20 |
| Electric Heating Power | Kw | 15.3 | 24 | 24 | 29.75 |
| Total Power | Kw | 30.3 | 39 | 39 | 48.75 |
| Gross weight | Ton | 7.5 | 9 | 10 | 14.2 |
| Dimension | mm | L2600*W2000*H4000 | L2750*W2265*H4200 | L2750*W2265*H4200 | L3200*W2500*H4350 |
Mahcine Applications :
-
The "all-in-out" series silicone rubber injection molding machine is an advanced and compact rubber molding machine with wide applicability, high efficiency, and high precision. It is particularly well-suited for molding rubber products with complex shapes, challenging exhaust requirements, and high precision injection molding needs.
This versatile machine can handle multilateral, polygonal, and other intricate product shapes, with a special focus on NBR products and O-ring products. It is ideal for various high precision applications, including cooking utensils, sporting goods, medical supplies, auto accessories, high and low voltage electricity, electronic accessories, and more.
Our Services Conception:
-
Cost efficient recommendations and high quality products with continuous improvement is key to our service for customer.
-
we are committed to providing full after-market service to all of our customers by online instructions or video reference.
-
Installation and debugging: Our engineers will teach you about the installation and debugging for free when the machine are finished.
-
After-sales service: We will supply the free repairment on this machine for one year. ( the service is only for natural damage)
|
|
|
