China High-accuracy Silicone Injection Molding Press Machine for making car parts auto parts
Product Details:
| Place of Origin: | China Guangzhou |
| Brand Name: | Juchuan |
| Certification: | ISO9001:2015 |
| Model Number: | JC-VI-AO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 15000 - 35000 per set |
| Packaging Details: | container |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Sets per Month |
|
Detail Information |
|||
| Machine Dimension: | 2RT-3RT-4RT-Upper Hanging Die-Lower Hanging Die | Operation Language: | English/Chinese |
|---|---|---|---|
| Gross Weight: | 5.5-11ton | Type: | Vertical |
| Clamp Force: | 50-400ton | Plunger Stroke: | 300-500mm |
| Motor Power: | 5.5-11KW | Heating Power: | 8.4-24KW |
Product Description

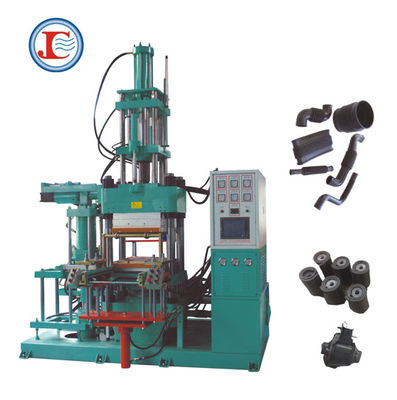

China High-accuracy Silicone Injection Molding Press Machine
for making car parts auto parts
Application Products
Technical Parameters
| Model | Unit | 200VI-AO | 300VI-AO | 400VI-AO | 100VI-AO |
| Clamping Force | Ton | 200 | 300 | 400 | 100 |
| Injection Capacity | cc | 2000 | 3000 | 4000 | 500 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 | 1800 |
| Operation table size | mm | 550*560 | 700*700 | 700*700 | 400*400 |
| Min. Mold Thickness | mm | 100 | 100 | 100 | 50 |
| Plunger stroke | mm | 400 | 400 | 400 | 350 |
| Distance of Thermo-plate | mm | 500~600 | 500~600 | 500~600 | 400*400 |
| Distance of Tie bar | mm | 640*310 | 820*395 | 820*395 | 515*230 |
| Die sinking type | 2RT/ 3RT/ 4RT-Upper Ejector-Bottom Ejector | ||||
| Max. Operating Pressure | Mpa | 20 | 20 | 20 | 20 |
| Motor Power | hp | 15 | 15 | 15 | 7.5 |
| Electric Heating Power | Kw | 15.3 | 24 | 24 | 10 |
| Total Power | Kw | 30.3 | 39 | 39 | 17.5 |
| Gross weight | Ton | 7.5 | 9 | 10 | 6 |
| Dimension | mm | L2600*W2000*H4000 | L2750*W2265*H4200 | L2750*W2265*H4200 | L2400*W1650*H3200 |

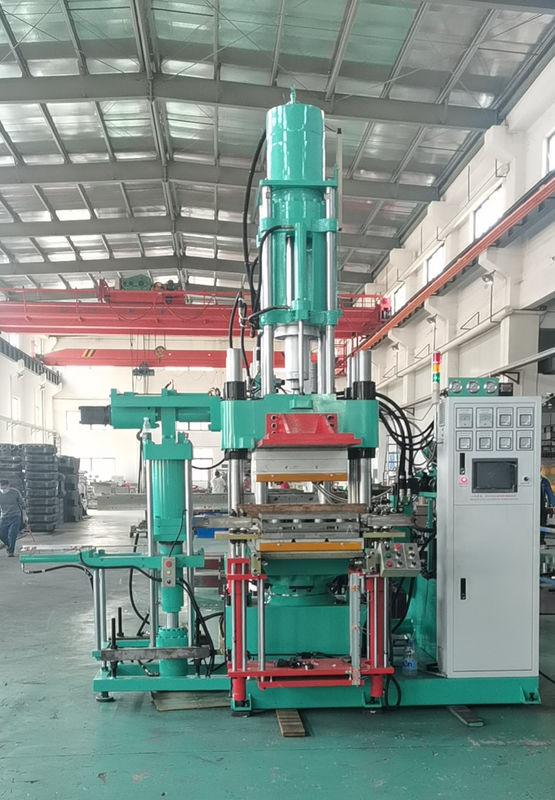

Mahcine Features:
-
"all-in-out" series silicone rubber injection molding machine is advanced rubber molding machine, it's structure is compact with wide applicability, high efficiency and high precision.
-
Especially it is suitable for the rubber products of complex shapes, exhausting difficultly, difficult to molding, high presision injection molding.
-
Suitable for multilateral, polygonal and other complicated shape products, especially for NBR products, O ring products.
-
Particularly for cooking utensil, sporting goods , medical supplies, auto accessories,high and low voltage electricity, electronic accessory and other high precision applications
-
Cost efficient recommendations and high quality products with continuous improvement is key to our service for customer.
-
we are committed to providing full after-market service to all of our customers by online instructions or video reference.
-
Installation and debugging: Our engineers will teach you about the installation and debugging for free when the machine are finished.
-
After-sales service: We will supply the free repairment on this machine for one year. ( the service is only for natural damage)
* Guangzhou JuChuan Machinery Co.,Ltd has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Car brake pads hot press machine
Vacuum compression machine
Silicone rubber hot press machine
Exhibition
| Our service | |||||||||
| 1. Free technology training: you can come for inspection and training for free. | |||||||||
| 2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free. | |||||||||
| 3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage) | |||||||||
| 4. Online remote control for software problems, whatspp or wechat for video checking. |
