Hot Sale Automatic Green color Silicone Injection Molding Press Machine For Silicone Products

Hot Sale Automatic Green color Silicone Injection Molding Press Machine For Silicone Products

Product Details:

Place of Origin: Guangdong China
Brand Name: Juchuan
Certification: SGS CE ISO9001
Model Number: JC-VI-AO

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD 21800-40000one set
Packaging Details: container
Delivery Time: 50days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Color: Blue & Green Or As Per Your Choice Clamp Force(Ton): 50 - 400
Injection Volume(cc): 500 - 4000 Plunger Stroke(mm): 300 - 500
Molding Opening Type: 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die Max. Operating Pressure(MPa): 20
Motor Power(KW): 5.5 - 11 Heating Power(KW): 8.4 - 24
Total Power(KW): 13.9 - 35 Gross Weight(Ton): 5.5 - 10
High Light:

6000cc Superb Silicone Injection Molding Machine

,

Silicone Baby Products Injection Molding Machine

,

600Ton Silicone Injection Molding Machine

Product Description

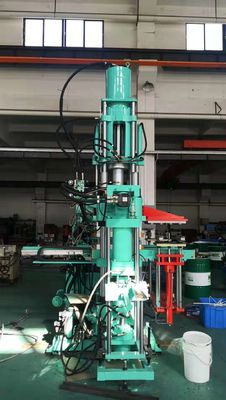

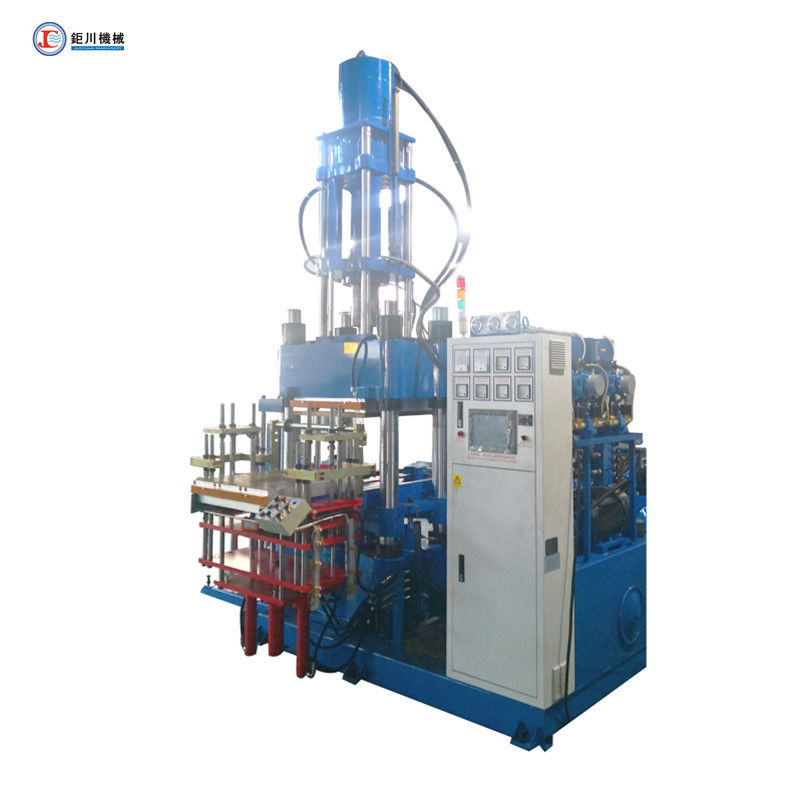

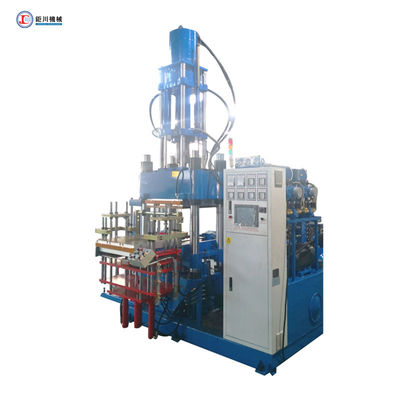

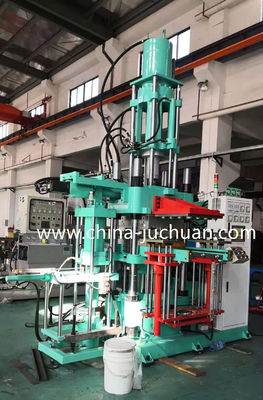

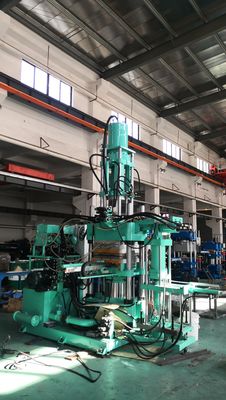

Automatic Silicone Injection Molding Press Machine
For Silicone Products


Hot Sale Automatic Green color Silicone Injection Molding Press Machine For Silicone Products 0

Detailed Product Description
Application Feild: Electronic Rubber Parts Clamp Force: 600Ton
Raw Material: Rubber Material Machine Structure: All-in-all-out
Position Type: Vertical Injection Volume: 6000cc
High Light:

hydraulic power press machine

,

silicone bracelet maker machine

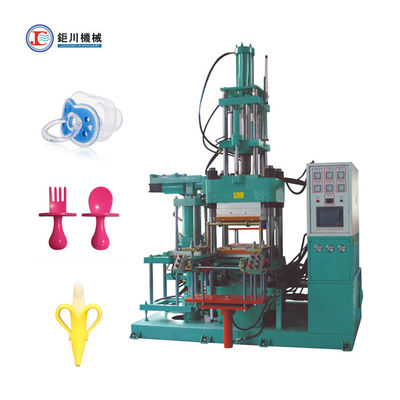

Automatic Silicone Injection Molding Press Machine For Silicone Baby Products/Silicone Baby Nipple

Own Intellectual Property Rights for "all-in-all-out" Technology:

  1. Visible Feeding System:
  • Avoid the traditional techniques which cannot know about the situations like temperature/hardness/ Plasticizing before vulcanizing,
  • Efficiently get control of the raw material Plasticizing status, can make adjustment in time.
  1. Excellent Plasticizing Effects:
  • Excellent Plasticizing effects, reduce the waste rubber material, avoid blocking the cylinder, save much more raw material when plasticizing.
  • Easy to switch the different colors of raw material,easy for cleaning.
  1. High Temperature Ranges:
  • Simple structure, Plasticizing temperature between 90 ℃ and 100 ℃, ensure good Plasticizing effects.
  • Good Plasticizing effects can ensure a good injection products.
  1. Save Raw Rubber Material:
  • Can handle with the raw rubber material as hardness as 85°.
  • Improve coefficient of utilization of raw material.
  1. all material in, and all out:
  • ​All-in-out structure, sprueless injection without material loss controlable injecting material temperature
  • Excellent for high precision molding parts
  •

Specific Charateristics:

  1. Suitable for automotive and electronic rubber parts, high / cold temprature precision rubber parts, especially NBR products.
  2. All-in-out structure, sprueless injection without material loss controlable injecting material temperature.
  3. Excellent for high precision molding part
  4. 5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1g
  5. Anti-collision molding system prevent mold damage occurring from misalignment(patented)
  6. Servo-controlled system up to 40% energy saving
  7. Proportional backpressure controlling characteristic

Services Conception:

  • Installation and debugging: Our engineers will teach you about the installation and debugging for free.
  • Technology training : Our company will offer technology training for your operation.
  • After-sales service: We will supply the free repairment on this machine for one year, but will supply the maintenance lifetime. ( the service is only for natural damage)

Business Conception:

  • quality oriented and provide optimum productivety and profitability for customers.
  • To be the leader of the rubber machine manufacturer in China, even thoug-out the world.



Intellectual Property Rights:

  • "all-in-out" injection structure technology
  • Anti-collision molding system
  • Energy saving for 40%



Main Technical Parameters:



Model Unit 50VI-AO 100VI-AO 200VI-AO 300VI-AO 400VI-AO 600VI-AO 800VI-AO 1000VI-AO
Clamping Force Ton 50 100 200 300 400 600 800 1000
Injection Capacity cc 500 500 2000 3000 4000 6000 8000 10000
Injection pressure kgf/cm² 1800 1800 1800 1800 1800 1800 1800 1800
Operation table size mm 300*300 400*400 550*560 700*700 700*700 850*850 1000*1000 1200*1200
Min. Mold Thickness mm 50 50 100 100 100 100 150 150
Plunger stroke mm 300 350 400 400 400 500 500 500
Distance of Thermo-plate mm 350~450 400~500 500~600 500~600 500~600 600~700 650~800 650~800
Distance of Tie bar mm 400*140 515*230 640*310 820*395 820*395 970*500 1140*600 1340*800
Die sinking type 2RT-3RT-4RT-Upper Mold-Lower Mold

Max. Operating

Pressure

Mpa 20 20 20 20 20 20 20 20
Motor Power hp 7.5 10 15 15 15 20 20 25
Electric Heating Power Kw 8.4 10 15.3 24 24 29.75 35 42
Total Power Kw 16.9 20.5 30.3 39 39 48.75 54 64.5
Gross weight Ton 5.5 6 7.5 9 10 14.2 17.5 21

Dimension

(L*W*H)

mm

2000*1500

*H2800

2400*1650

*3200

2600*2000

*4000

2750*2265

*4200

2750*2265

*4200

3200*2500

*4350

L3450*W2750

*H4500

3750*3050

*5000
