380v Rubber Silicone Injection Molding Machine PLC Control
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001:2015 |
| Model Number: | JC-VI-AO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $16800-$35,000.00/sets 1-1 sets |
| Packaging Details: | shrink film packing |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor, Pump | Machine Type: | Rubber Injection Machine |
| Voltage: | 380V | Dimension(L*W*H): | 2600*2000*4000mm |
| Weight: | 11000 | Warranty: | 1 Year |
| Power (kW): | 30.3kw | Key Selling Points: | Famous Brand PLC |
| Showroom Location: | None | Applicable Industries: | Manufacturing Plant |
| Clamp Force Ton: | 200 | Injection Volume Cc: | 2000 |
| Injection Pressure: | 1800 | Plunge Stroke(mm): | 400 |
| Heater Capacity(kw): | 15.3 | Gross Weight: | 7.5 |
| Total Power Kw: | 30.3 | Marketing Type: | New Product 2020 |
| Port: | Guangzhou | Clamp Force: | 50-1000 |
| Injection Volume: | 500-4000 | Plunger Stroke: | 300-500 |
| Opening Mold: | 2RT3RT4RT | Gross Weight: | 5.5-10ton |
| High Light: | 380V Silicone Injection Molding Machine,Rubber Injection Machine PLC Control,PLC Control Rubber Injection Machine |
||
Product Description
380v Rubber Silicone Injection Molding Machine PLC Control
Technical Parameters:
| Model | Unit | 200VI-AO | 300VI-AO | 400VI-AO | 600VI-AO |
| Clamping Force | Ton | 200 | 300 | 400 | 600 |
| Injection Capacity | cc | 2000 | 3000 | 4000 | 6000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 | 1800 |
| Operation table size | mm | 550*560 | 700*700 | 700*700 | 850*850 |
| Min. Mold Thickness | mm | 100 | 100 | 100 | 100 |
| Plunger stroke | mm | 400 | 400 | 400 | 500 |
| Distance of Thermo-plate | mm | 500~600 | 500~600 | 500~600 | 600~700 |
| Distance of Tie bar | mm | 640*310 | 820*395 | 820*395 | 970*500 |
| Die sinking type | 2RT/ 3RT/ 4RT-Upper Ejector-Bottom Ejector | ||||
| Max. Operating Pressure | Mpa | 20 | 20 | 20 | 20 |
| Motor Power | hp | 15 | 15 | 15 | 20 |
| Electric Heating Power | Kw | 15.3 | 24 | 24 | 29.75 |
| Total Power | Kw | 30.3 | 39 | 39 | 48.75 |
| Gross weight | Ton | 7.5 | 9 | 10 | 14.2 |
| Dimension | mm | L2600*W2000*H4000 | L2750*W2265*H4200 | L2750*W2265*H4200 | L3200*W2500*H4350 |
Mahcine Applications :
-
"all-in-out" series silicone rubber injection molding machine is advanced rubber molding machine, it's structure is compact with wide applicability, high efficiency and high precision.
-
Especially it is suitable for the rubber products of complex shapes, exhausting difficultly, difficult to molding, high presision injection molding.
-
Suitable for multilateral, polygonal and other complicated shape products, especially for NBR products, O ring products.
-

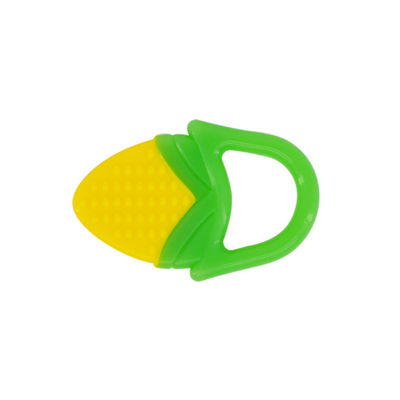

Particularly for cooking utensil, sporting goods , medical supplies, auto accessories,high and low voltage electricity, electronic accessory and other high precision applications
-
Cost efficient recommendations and high quality products with continuous improvement is key to our service for customer.
-
we are committed to providing full after-market service to all of our customers by online instructions or video reference.
-
Installation and debugging: Our engineers will teach you about the installation and debugging for free when the machine are finished.
-
After-sales service: We will supply the free repairment on this machine for one year. ( the service is only for natural damage)
Our main products:
1.Silicone rubber injection molding machine
2.Vertical hydraulic rubber injection machine
3.Horizontal silicone rubber injection machine
4.Car brake pads hot press machine
5.Vacuum compression machine
6.Silicone rubber hot press machine
Exhibition Show:
Our Service
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
