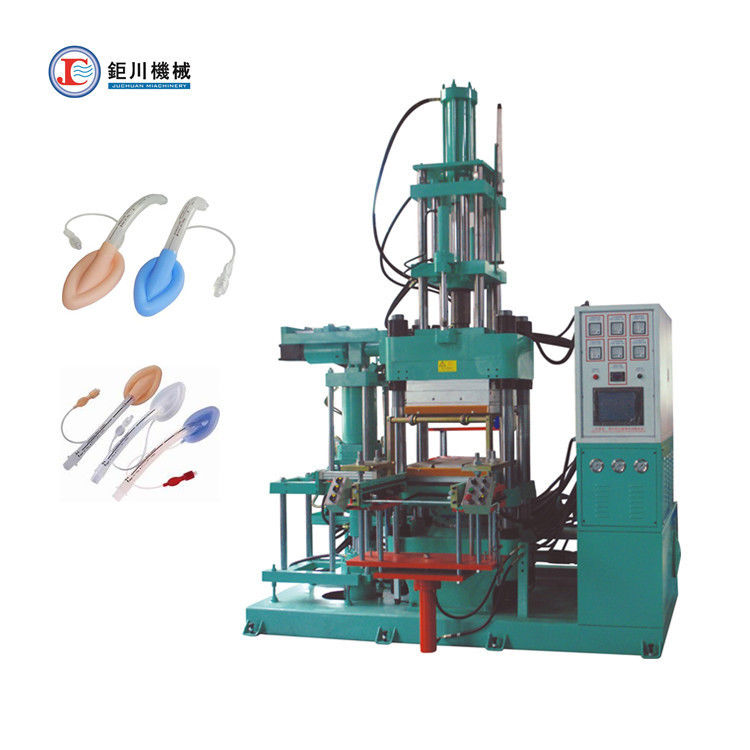

Silicone Injection Moulding Machine/Silicon Rubber Molding Machine for Make Medical Laryngeal Mask Balloon
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | juchuan |
| Certification: | ISO9001-2015 |
| Model Number: | JC-VI-AO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD32200 set |
| Packaging Details: | container |
| Delivery Time: | 15 - 20 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1set per 30 days |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor, Pump | Machine Type: | Rubber Injection Machine |
| Voltage: | 380v | Dimension(L*W*H): | 2600*2000*4000mm |
| Weight: | 7.5 | Warranty: | 1 Year |
| Power (kW): | 30.3kw | Key Selling Points: | Famous Brand PLC |
| Showroom Location: | None | Applicable Industries: | Manufacturing Plant |
| Clamp Force: | 200 Ton | Injection Volume: | 2000cc |
| Injection Pressure: | 1800 (kgf/cm2) | Plunge Stroke(mm): | 400mm |
| Heater Capacity(kw): | 15.3kw | Gross Weight: | 7.5ton |
| Plate Size: | 550*560mm | Mold Opeing Type: | 2RT-3RT-4RT |
| Total Power: | 30.3KW | After-sales Service Provided: | Free Spare Parts |
| Marketing Type: | New Product 2020 | Port: | Guangzhou |
| Clamp Force: | 50-1000 | Injection Volume: | 500-4000 |
| Injection Pressure: | 1800 | Plunger Stroke: | 300-500 |
| Opening Mold: | 2RT3RT4RT | Gross Weight: | 5.5-10ton |
| High Light: | 2000cc Silicone Injection Moulding Machine,Silicone Injection Moulding Machine 2000cc,Medical Laryngeal Mask Balloon silicone injection machine |
||
Product Description
Silicone Injection Moulding Machine/Silicon Rubber Molding Machine
for Make Medical Laryngeal Mask Balloon
Technical Parameters:
| Model | Unit | 200VI-AO | 300VI-AO | 400VI-AO | 600VI-AO |
| Clamping Force | Ton | 200 | 300 | 400 | 600 |
| Injection Capacity | cc | 2000 | 3000 | 4000 | 6000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 | 1800 |
| Operation table size | mm | 550*560 | 700*700 | 700*700 | 850*850 |
| Min. Mold Thickness | mm | 100 | 100 | 100 | 100 |
| Plunger stroke | mm | 400 | 400 | 400 | 500 |
| Distance of Thermo-plate | mm | 500~600 | 500~600 | 500~600 | 600~700 |
| Distance of Tie bar | mm | 640*310 | 820*395 | 820*395 | 970*500 |
| Die sinking type | 2RT/ 3RT/ 4RT-Upper Ejector-Bottom Ejector | ||||
| Max. Operating Pressure | Mpa | 20 | 20 | 20 | 20 |
| Motor Power | hp | 15 | 15 | 15 | 20 |
| Electric Heating Power | Kw | 15.3 | 24 | 24 | 29.75 |
| Total Power | Kw | 30.3 | 39 | 39 | 48.75 |
| Gross weight | Ton | 7.5 | 9 | 10 | 14.2 |
| Dimension | mm | L2600*W2000*H4000 | L2750*W2265*H4200 | L2750*W2265*H4200 | L3200*W2500*H4350 |
Mahcine Applications :
The "all-in-out" series silicone rubber injection molding machine is a compact and advanced rubber molding machine, specifically designed for complex rubber products with high precision needs. It is ideal for various applications, including NBR products and O-ring products, with a focus on cooking utensils, sporting goods, medical supplies, and more. We prioritize customer satisfaction through cost-efficient recommendations, high-quality products, and comprehensive after-sales support. Our engineers provide free installation and debugging assistance, and we offer a one-year free repair service for natural damage.
Guangzhou JuChuan Machinery Co., Ltd. is a reputable factory with 22 years of experience in manufacturing silicone rubber injection molding machines.
Our machines have been successfully sold to various countries, including Thailand, Malaysia, Vietnam, Israel, Russia, Germany, Afghanistan, and Sudan. We take pride in our global presence and the trust placed in our products by customers worldwide.
Our main products:
1.Silicone rubber injection molding machine,
2.Vertical hydraulic rubber injection machine,
3.Horizontal silicone rubber injection machine,
4.Car brake pads hot press machine,
5.Vacuum compression machine
6.Silicone rubber hot press machine.
Thailand exhibition show:
