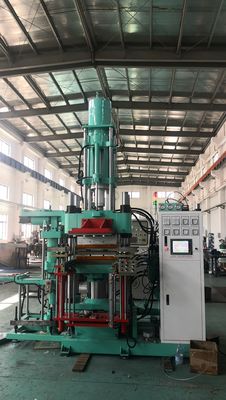

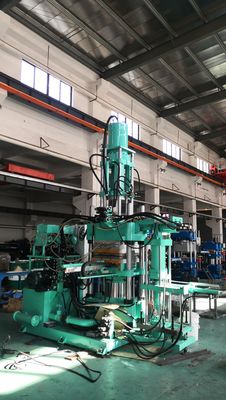

100T-1000T Silicone Injection Molding Machine Rubber Product Making Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JuChuan |
| Certification: | CE ISO9001 |
| Model Number: | VI-AO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $34,567.00 - $43,567.00/sets |
| Packaging Details: | container |
| Delivery Time: | 15 - 20 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Unit/Units per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Clamping Force: | 50~1000Ton | Type: | Injection Molding Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Plastic Type: | Thermoplastic |
| Power: | 16.90~64.5Kw | Injection Rate: | Adjustable |
| Automatic: | Yes | Injection Weight: | 500~10000cc |
| Clamp Force(Ton): | 50~1000 | Injection Volume(cc): | 500~10000 |
| Injection Pressure(kgf/xm2): | 1800 | Platen Size(mm): | 300*300~1200*1200 |
| Plunge Stroke(mm): | 300~500 | Heater Capacity(kw): | 8.4~42 |
| Gross Weight(Ton): | 5.5~21 | Port: | Guangzhou |
| Clamp Force: | 50-1000 | Injection Volume: | 500-4000 |
| Injection Pressure: | 1800 | Plunger Stroke: | 300-500 |
| Opening Mold: | 2RT3RT4RT | Gross Weight: | 5.5-10ton |
| High Light: | 100T Silicone Injection Molding Machine,100T Aluminum Injection Machine,1000T Aluminum Injection Machine |
||
Product Description
100-1000T Energy-Saving Used Aluminum Injection Machine
VI-AO Series Vertical "all-in-out" Silicone/Ssynthetic Rubber Injeciton Molding Machine
Key Features:
1. Versatile Application: The machine is well-suited for automotive and electronic rubber parts, high/cold temp precision rubber parts, with a special focus on NBR products.
2. All-in-Out Structure: Featuring a sprueless injection process, the machine ensures minimal material loss and allows for precise control of the injecting material temperature.
3. High Precision Molding: The machine excels in producing high precision molded parts, achieving 5-10 times better accuracy compared to conventional injection machines. It can achieve a measuring precision of ±0.1 g for a 1000cc injection volume.
4. Anti-Collision Molding System: A patented system is in place to prevent mold damage resulting from misalignment, ensuring smooth and reliable operation.
5. Energy-Efficient: The machine is equipped with a Servo-Controlled system, which can lead to energy savings of up to 40% during operation.
6. Proportional Backpressure Control: The machine features a proportional backpressure controlling characteristic, ensuring optimal molding conditions and enhancing the overall efficiency of the process.
| Model | Unit | 50VI-AO | 100VI-AO | 200VI-AO | 300VI-AO | 400VI-AO | 600VI-AO | 800VI-AO | 1000VI-AO |
| Clamping Force | Ton | 50 | 100 | 200 | 300 | 400 | 600 | 800 | 1000 |
| Injection Capacity | cc | 500 | 500 | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Operation table size | mm | 300*300 | 400*400 | 550*560 | 700*700 | 700*700 | 850*850 | 1000*1000 | 1200*1200 |
| Min. Mold Thickness | mm | 50 | 50 | 100 | 100 | 100 | 100 | 150 | 150 |
| Plunger stroke | mm | 300 | 350 | 400 | 400 | 400 | 500 | 500 | 500 |
| Distance of Thermo-plate | mm | 350~450 | 400~500 | 500~600 | 500~600 | 500~600 | 600~700 | 650~800 | 650~800 |
| Distance of Tie bar | mm | 400*140 | 515*230 | 640*310 | 820*395 | 820*395 | 970*500 | 1140*600 | 1340*800 |
| Die sinking type | 2RT-3RT-4RT-Upper Mold-Lower Mold | ||||||||
|
Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 7.5 | 10 | 15 | 15 | 15 | 20 | 20 | 25 |
|
Electric Heating Power |
Kw | 8.4 | 10 | 15.3 | 24 | 24 | 29.75 | 35 | 42 |
| Total Power | Kw | 16.9 | 20.5 | 30.3 | 39 | 39 | 48.75 | 54 | 64.5 |
| Gross weight | Ton | 5.5 | 6 | 7.5 | 9 | 10 | 14.2 | 17.5 | 21 |
|
Dimension (L*W*H) |
mm |
2000*1500 *H2800 |
2400*1650 *3200 |
2600*2000 *4000 |
2750*2265 *4200 |
2750*2265 *4200 |
3200*2500 *4350 |
L3450*W2750 *H4500 |
3750*3050 *5000 |
|
|
|
