VI-AO Series Vertical Automatic Rubber Injection Molding Machine For Making Auto Parts
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JuChuan |
| Certification: | CE ISO9001:2015 |
| Model Number: | JC-VI-AO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $20,000.00 - $45,000.00/sets |
| Packaging Details: | container |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Clamping Force: | 50~1000Ton | Type: | Injection Molding Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Power: | 16.90~64.5Kw |
| Automatic: | Yes | Injection Weight: | 500~10000cc |
| Clamp Force(Ton): | 50~400 | Injection Volume(cc): | 500~10000 |
| Injection Pressure(kgf/xm2): | 1800 | Platen Size(mm): | 300*300~1200*1200 |
| Plunge Stroke(mm): | 300~500 | Heater Capacity(kw): | 8.4~42 |
| Gross Weight(Ton): | 5.5~21 | Port: | Guangzhou |
| High Light: | Auto Parts Injection Molding Machine,CE Rubber Injection Molding Machine,10kw Auto Parts Making Machine |
||
Product Description

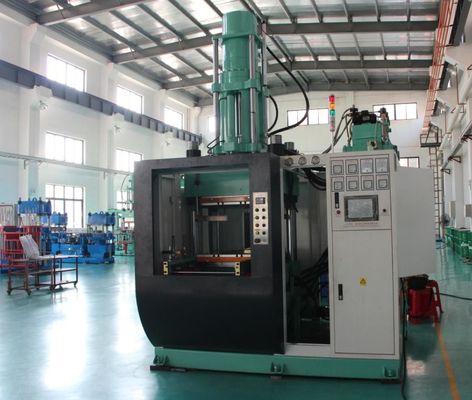

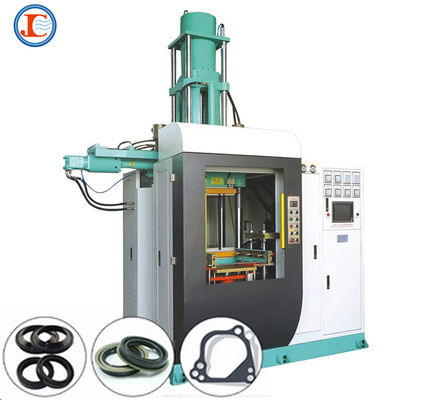

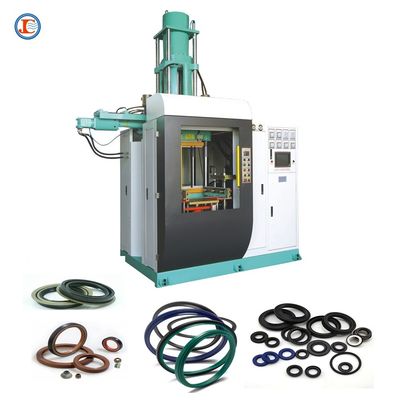

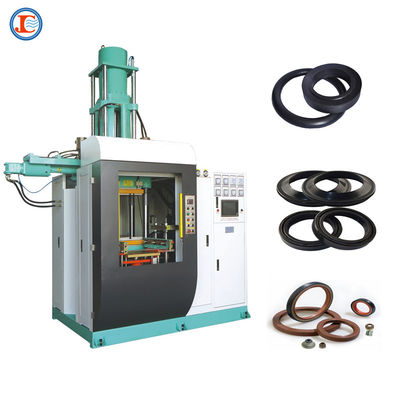

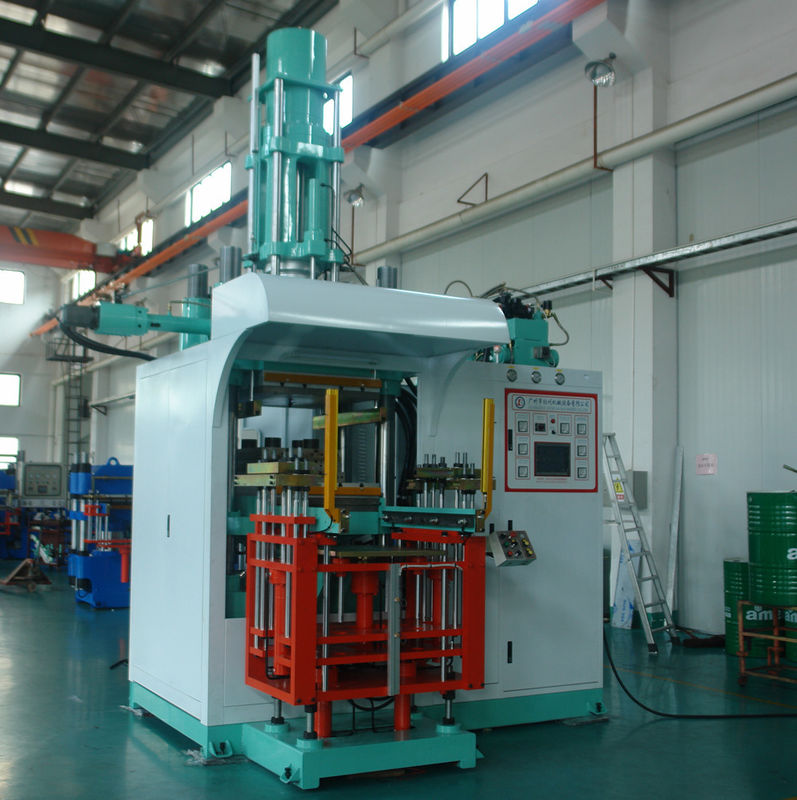

China Factory VI-AO series Vertical Automatic Rubber injection Molding Machine for making auto parts
Machine Features:
* This machine is suitable for making car rubber spare parts with complex structure, difficult exhaust, high temperature, hardness and prescision, such as fluorine rubber.
* All in all out injection structure, non-nozzle material barrel design, no check valve, no aging rubber when in plasticizing.
* Little residual waste, reduce barrel blockage, easy change different color raw material and clean barrel.
* Visible feeding system: easy check and control rubber temperature and speed, it can effectively monitor plasticizing state of rubber material and ensure 100% plasticizing effect.
* Accurate injetion: 1000cc injection can be±0.1g accurate.
Technical Parameters:
| Model | Unit | 50VI-AO | 100VI-AO | 200VI-AO | 300VI-AO | 400VI-AO | 600VI-AO | 800VI-AO | 1000VI-AO |
| Clamping Force | Ton | 50 | 100 | 200 | 300 | 400 | 600 | 800 | 1000 |
| Injection Capacity | cc | 500 | 500 | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Operation table size | mm | 300*300 | 400*400 | 550*560 | 700*700 | 700*700 | 850*850 | 1000*1000 | 1200*1200 |
| Min. Mold Thickness | mm | 50 | 50 | 100 | 100 | 100 | 100 | 150 | 150 |
| Plunger stroke | mm | 300 | 350 | 400 | 400 | 400 | 500 | 500 | 500 |
| Distance of Thermo-plate | mm | 350~450 | 400~500 | 500~600 | 500~600 | 500~600 | 600~700 | 650~800 | 650~800 |
| Distance of Tie bar | mm | 400*140 | 515*230 | 640*310 | 820*395 | 820*395 | 970*500 | 1140*600 | 1340*800 |
| Die sinking type | 2RT-3RT-4RT-Upper Mold-Lower Mold | ||||||||
|
Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 7.5 | 10 | 15 | 15 | 15 | 20 | 20 | 25 |
|
Electric Heating Power |
Kw | 8.4 | 10 | 15.3 | 24 | 24 | 29.75 | 35 | 42 |
| Total Power | Kw | 16.9 | 20.5 | 30.3 | 39 | 39 | 48.75 | 54 | 64.5 |
| Gross weight | Ton | 5.5 | 6 | 7.5 | 9 | 10 | 14.2 | 17.5 | 21 |
|
Dimension (L*W*H) |
mm |
2000*1500 *2800 |
2400*1650 *3200 |
2600*2000 *4000 |
2750*2265 *4200 |
2750*2265 *4200 |
3200*2500 *4350 |
3450*2750 *4500 |
3750*3050 *5000 |
Company Information
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Trade Show
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
