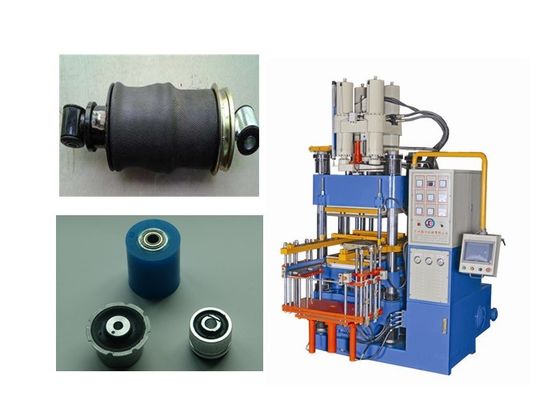

6000cc Hydraulic Rubber Damper Making Machine Rubber Press Injection Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUCHUAN |
| Certification: | CE ISO9001:2015 |
| Model Number: | JC-VI-FO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $18,000.00 - $46,800.00/sets |
| Packaging Details: | Fixed with hard straps |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Unit/Units per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Clamping Force: | 100-600Ton | Type: | Injection Molding Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Plastic Type: | Thermoplastic |
| Power: | 16.90~64.5Kw | Injection Rate: | Adjustable |
| Automatic: | Yes | Opening Stroke: | 280-1500 Mm |
| Injection Weight: | 1000-6000cc | Clamp Force(Ton): | 100-600 |
| Injection Volume(cc): | 1000-6000 | Injection Pressure(kgf/xm2): | 1800 |
| Platen Size(mm): | 400*400-850*850 | Plunge Stroke(mm): | 350~500 |
| Heater Capacity(kw): | 10~29.75 | Gross Weight(Ton): | 6.5~14.5 |
| Port: | Guangzhou | Clamp Force: | 50-1000 |
| Injection Volume: | 500-4000 | Injection Pressure: | 1800 |
| Plunger Stroke: | 300-500 | Opening Mold: | 2RT3RT4RT |
| Gross Weight: | 5.5-10ton | ||
| Highlight: | 6000cc Rubber Press Injection Machine,Hydraulic Rubber Press Injection Machine,Hydraulic Rubber Damper Making Machine |
||
Product Description
6000cc Hydraulic Rubber Damper Making Machine Rubber Press Injection Machine
Why choose first in first out rubber injection molding machine
1. Adopting a first-in, first-out device to prevent dead material from remaining, and the rubber material can be easily replaced without waste.
2. The temperature of the injection pipe oil is controlled by a constant temperature system to prevent vulcanization of dead glue.
3. The use of low-speed high-torque hydraulic motors can ensure high hardness of the rubber material quickly.
4. Adopt linear vertical injection system to ensure the injection pressure and the hardness of injected rubber can reach 90 degrees.
5. The device is equipped with a fully enclosed safety baffle and grating, alarm prompts and a high-precision measuring scale device, to clearly and safely grasp the status of the machine.
6. Proportional oil circuit system, low noise and automatic pressure adjustment function, accurate and stable.
7 Short nozzle designs, no spillage, no plastic leakage, can shorten the plasticization time.
8. Special cold runner device can be customized to save rubber material.
Technical Parameters:
| Model | Unit | 200VI-FO | 300VI-FO | 400VI-FO | 600VI-FO |
| Clamping Force | Ton | 200 | 300 | 400 | 600 |
| injection volume | cc | 2000 | 3000 | 4000 | 6000 |
| injection pressure | kgf/cm2 | 1800 | 1800 | 1800 | 1800 |
| Platen Size | mm | 550*560 | 700*700 | 700*700 | 850*850 |
| Min Mold thickness | mm | 100 | 100 | 100 | 100 |
| Plunger stroke | mm | 400 | 400 | 400 | 500 |
| Distance of Thermo-plate | mm | 500-600 | 500-600 | 500-600 | 600-700 |
| Distance of Tie bar | mm | 640*310 | 820*395 | 820*390 | 970*500 |
| Die sinking type | 2RT-3RT-4RT-Track | ||||
| Max Operating Pressure | Mpa | 20 | 20 | 20 | 20 |
| Motor Power | KW | 11 | 11 | 11 | 15 |
| Electric Heating Power | KW | 15.3 | 24 | 24 | 29.75 |
| Total Capacity | KW | 30.3 | 39 | 39 | 48.75 |
| Gross weight | Ton | 8 | 9.5 | 11 | 14.5 |
| Dimension | mm | L2930*W2500*H2350 | L3360*W2970*H2850 | L3650*W3050*H2900 | L3190*W2930*H2495 |
|
|
|
