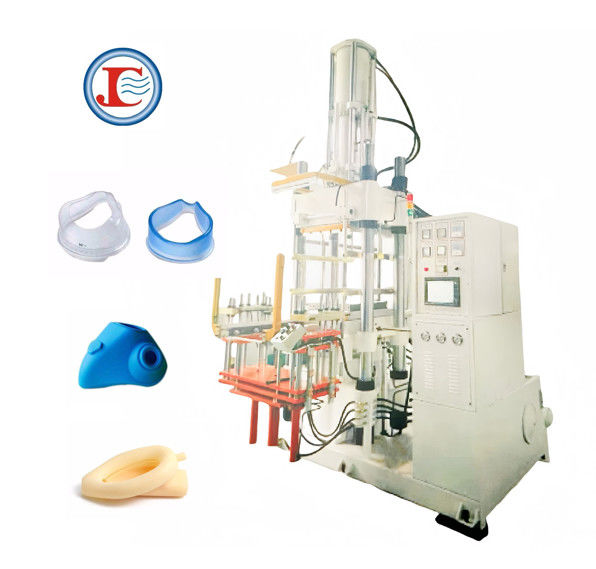

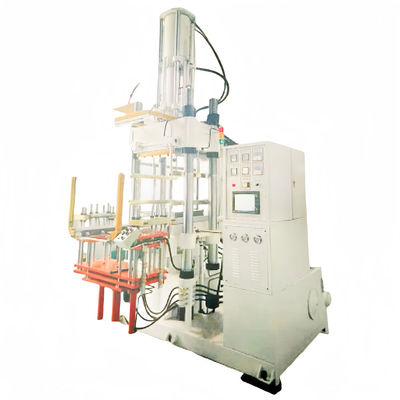

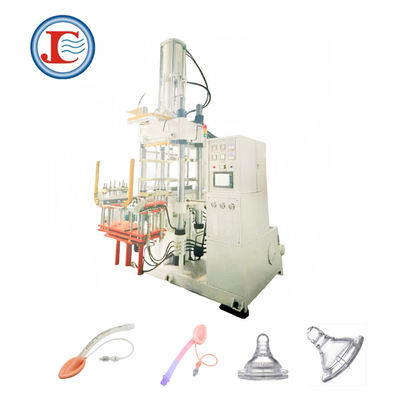

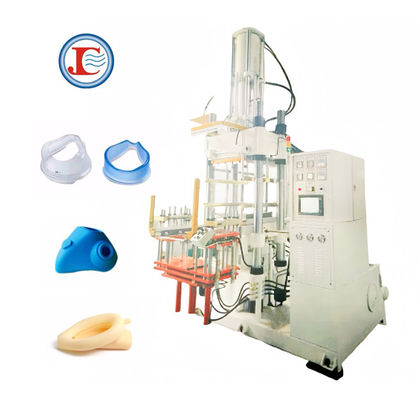

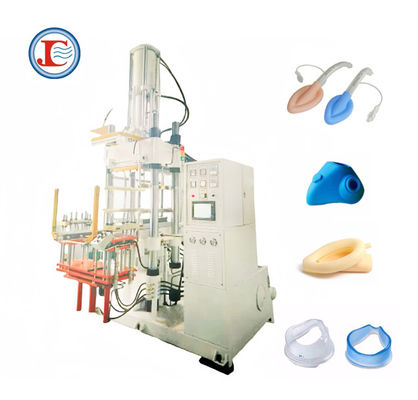

LV Series 100ton Vertical Liquid Silicone Injeciton Molding Machine For Silicone Mask
Product Details:
| Place of Origin: | China |
| Brand Name: | Juchuan |
| Certification: | ISO9001:2015 |
| Model Number: | JC-100LV-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 21800-40000/ set |
| Packaging Details: | container |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300000 pcs / month |
|
Detail Information |
|||
| Gross Weight: | 6ton | Clamp Force: | 100ton |
|---|---|---|---|
| Injection Volume: | 2000cc | Plunger Stroke: | 350mm |
| Mold Opening Type: | 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die | Injection Pressure: | 1000kgf/cm2 |
| Platen Size: | 400*400mm | Plunger Diameter: | 250mm |
| Min. Mold Thickness: | 51mm | Heating Plates Distance: | 300-400mm |
| Heating Power: | 10KW | Machine Size L*W*H: | 2400*1650*3200 |
| High Light: | 100ton LSR Injection Molding Machine,Silicone Mask Injection Molding Machine,Mask LSR Injection Molding Machine |
||
Product Description
Machine Features:
* Big injection pressure, mainly for liquid silicone products with multi cavities or big volume of silicone.
* Servo control system to save energy up to 40%
* Mainly for all types of electric cable auxiliary parts.
Technical Parameters:
| Model | 100LV-1 | 200LV-1 | 300LV-1 |
| Clamping Force (Ton) | 100 | 200 | 300 |
| Max. Injection Rate (cc/s) | 300 | 300 | 400 |
| Injection Pressure (kgf/cm²) | 1000 | 1000 | 1200 |
| Injection Volume (cc) | 2000 | 3000 | 5000 |
| Platen Size (mm) | 400*400 | 550*560 | 700*700 |
| Plunger Diameter (mm) | Φ250 | Φ360 | Φ450 |
| Plunger Stroke (mm) | 350 | 400 | 600 |
| Min. Mold Thickness (mm) | 51 | 110 | 110 |
| Heating Plates Distance (mm) | 300-400 | 500-600 | 600-700 |
| Mold Opening Type | 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die | ||
| Max. Operating Pressure (Mpa) | 20 | 20 | 20 |
| Heating Power (KW) | 10 | 15.3 | 24 |
| Gross Weight (Ton) | 6 | 7.3 | 11 |
| Machine Size L*W*H (mm) | 2400*1650*3200 | 2600*2000*4000 | 2750*2265*4200 |
Company Information
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Trade Show:
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime.
(The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
