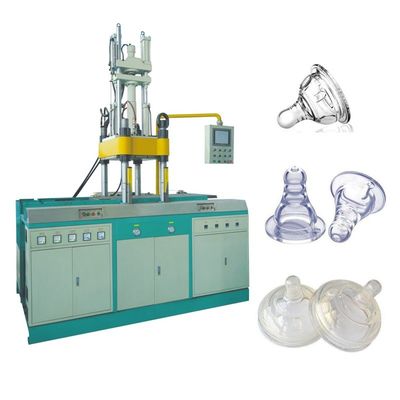

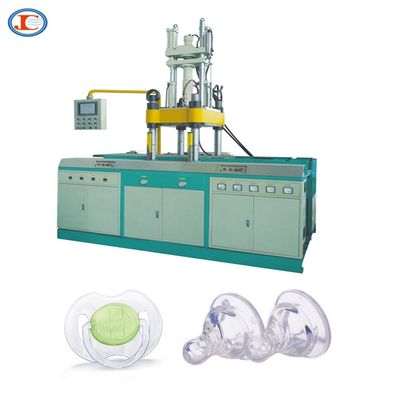

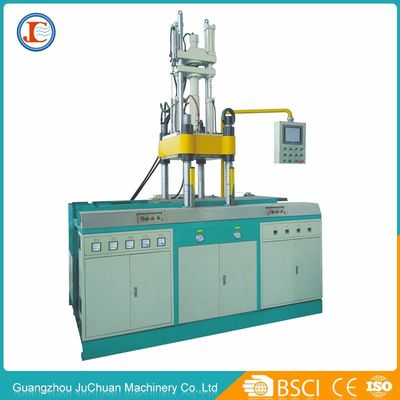

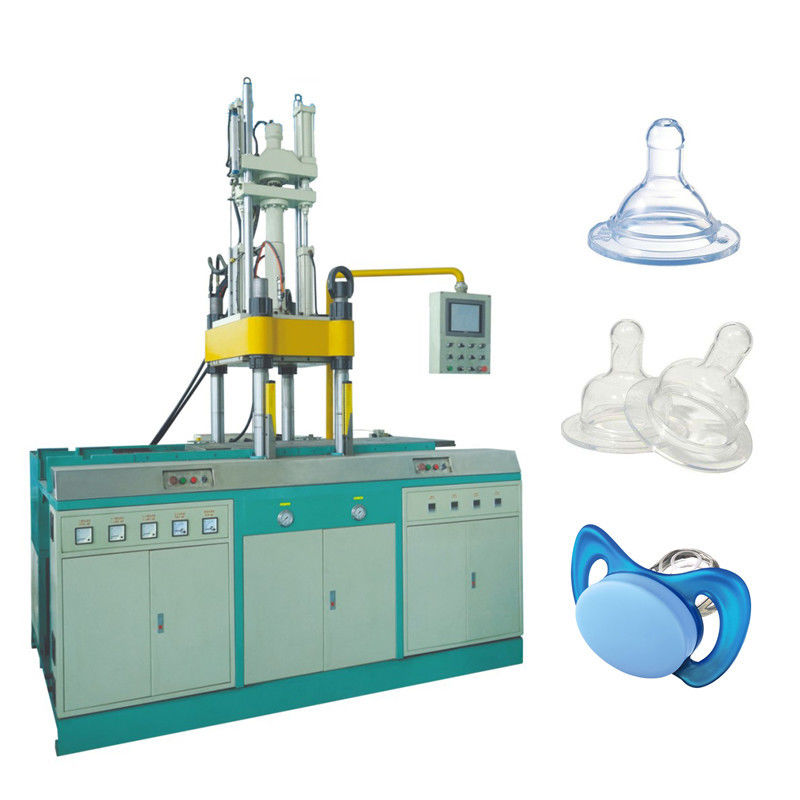

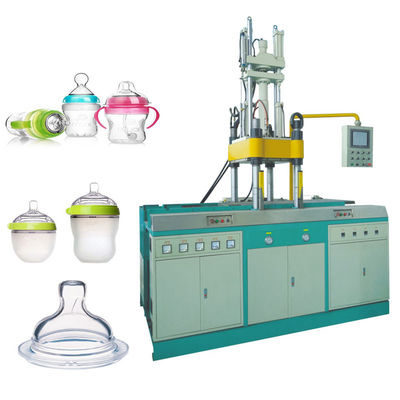

China Factory Direct Sale Liquid Silicone LSR Injection Molding Machine For Baby Nipple 1000 kN
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Juchuan |
| Certification: | ISO9001:2015 |
| Model Number: | JC-LV-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD$39000-45,000.00/set |
| Packaging Details: | Fixed with hard straps. |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Plastic Processed: | Liquid Silicone | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 300 Mm |
| Ejector Force(kN): | 1000 KN | Theoretical Shot Volume(cm³): | 300 Cm³ |
| Injection Rate (g/s): | 100 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 100 G | Screw Diameter (mm): | 30 Mm |
| Weight (KG): | 6300 | Type: | LSR Injection Molding Machine |
| Open Stroke(mm): | 300 Mm | Power (kW): | 11 KW |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Automatic: | Yes | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support |
| Injection Rate: | 30g/s | Opening Stroke: | 300~350mm |
| Injection Weight: | 300~500cc | Biggest Injection Rate: | 180~210cc/s |
| Injection Pressure(kfg/cm2): | 750 | Injection Volume(cc): | 300~500 |
| Screw Diameter(mm): | 45,50,55 | Motor Capacity(kw): | 11~20 |
| Gross Weight(Ton): | 6.3~11 | Plastic Type: | Other |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | Russia, South Africa |
| Clamping Force (kN): | 1000 KN | Port: | Guangzhou |
| Clamp Force: | 50-1000 | Injection Volume: | 500-4000 |
| Platen Size: | 300-700 | Plunger Stroke: | 300-500 |
| Mold Opening Type: | 2RT3RT4RT | Gross Weight: | 5.5-10ton |
| Injection Pressure: | 1800 | Opening Mold: | 2RT3RT4RT |
| High Light: | Baby Nipple LSR Injection Molding Machine,liquid silicone injection molding machine 1000 kN,Baby Nipple liquid silicone injection molding machine |
||
Product Description
China Factory Direct Sale Liquid Silicone LSR Injection Molding Machine For Baby Nipple 1000 kN
LV Series Liquid Silicone Injection Molding Machine
Features
1. Reciprocal vertical Liquid molding(LIM)system coupling Independent Intellectual Property Rights.
2. Ingenious Injection cylinder mechanism for material loading/unloading and extend machines working life/durability.
3.Unique pneumatic injection shut-off/sealing nozzle mech anism.
4.Highly accurate vertical dispensing system is up to 0.15% accuracy.
5. Three working station with double plate design for better efficiency.
6. Suitable for electric insulator parts, all kinds of LSR container, oil seal, automotive parts and so on.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
Company Information
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Trade Show
Our service
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
