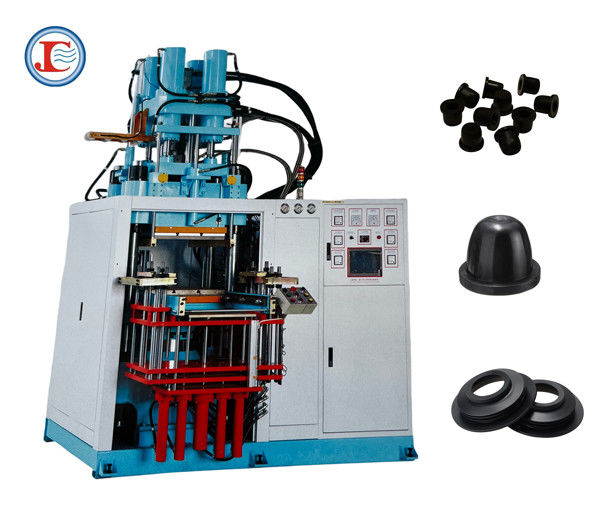

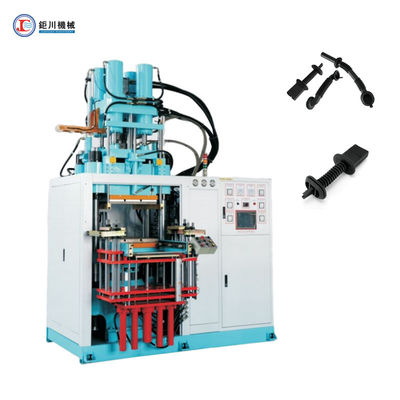

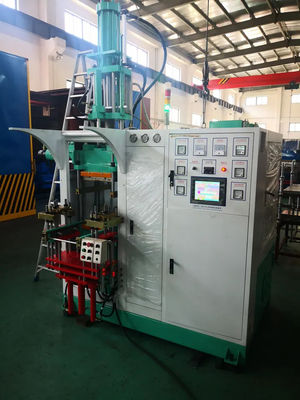

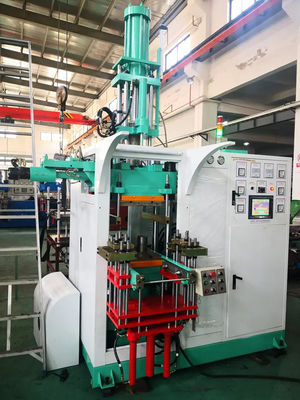

High Speed 200ton VI-FO Series Rubber Injection Molding Machine For Water Bottle Straw
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001:2015 |
| Model Number: | JC-200VI-FO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 21800-40000one set |
| Packaging Details: | container |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Clamp Force: | 200ton | Injection Volume: | 1000cc |
|---|---|---|---|
| Platen Size: | 400*400mm | Injection Pressure: | 1800(kgf/cm2) |
| Plunger Diameter: | 250mm | Min. Mold Thickness: | 50mm |
| Plunger Stroke: | 350mm | Heating Plates Distance: | 400-500mm |
| Tie Bar Distance: | 515*230mm | Mold Opening Type: | 2RT-3RT-4RT-Upper Hanging Die-Lower Hanging Die |
| Max. Operating Pressure: | 20MPa | Motor Power: | 7.5KW |
| Heating Power: | 10KW | Total Power: | 17.5KW |
| Gross Weight: | 6.5ton | Machine Size L*W*H: | 1600*2100*2800mm |
| High Light: | 200ton Rubber Injection Molding Machine,High Speed Rubber Injection Molding Machine |
||
Product Description
China Factory Price & High Speed 100ton VI-FO series Rubber Injection Molding Machine for Water Bottle Straw
Machine Features:

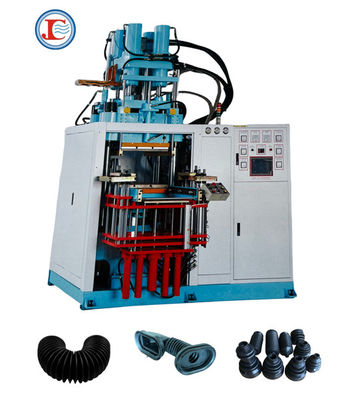

* This machine is suitable for making car rubber shock absorber, dust cover and hoses, and some complex structure rubber products.
* Accurate and consistent hydraulic system.
* Special injection sealing ring structure design, make sure no rubber material overflow.
* First in first out injection structure and four cylinders balance injection design.
Technical Parameters:
| Model | 100VI-FO | 200VI-FO | 300VI-FO | 400VI-FO | 600VI-FO | 800VI-FO |
| Clamp Force(ton) | 100 | 200 | 300 | 400 | 600 | 800 |
| Injection Volume(cc) | 1000 | 2000 | 3000(4000) | 4000 | 6000 | 8000(10000) |
| Injection Pressure(kgf/cm2) | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Platen Size(mm) | 400*400 | 550*560 | 700*700 | 700*700 | 850*850 | 1000*1000 |
| Plunger Diameter(mm) | Φ250 | Φ360 | Φ450 | Φ500 | Customized | Customized |
| Min. Mold Thickness(mm) | 50 | 100 | 100 | 100 | 100 | 100 |
| Plunger Stroke(mm) | 350 | 400 | 400(600) | 400 | 500 | 1000 |
| Heating Plates Distance(mm) | 400-500 | 500-600 | 500-600 | 500-600 | 600-700 | 1600 |
| Tie Bar Distance(mm) | 515*230 | 640*310 | 820*395 | 820*390 | 970*500 | 1240*590 |
| Mold Opening Type | 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die | |||||
| Max. Operating Pressure(MPa) | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power(KW) | 7.5 | 11 | 11 | 11 | 15 | 22+11 |
| Heating Power(KW) | 10 | 15.3 | 24 | 24 | 29.5 | Steam or Oil Heating |
| Total Power(KW) | 17.5 | 26.3 | 35 | 35 | 44.75 | 47 |
| Gross Weight(Ton) | 6.5 | 8 | 9.5 | 11 | 14.5 | 40 |
| Machine Size L*W*H(mm) | 1600*2100 *2800 | 1800*2550 *3100 | 2000*2700 *(3200-3400) | 2000*2700 3200 | 2200*2800 *3500 | 5120*2600 *6600 |
Application:
About us:
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Trade Show:
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime.
(The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
