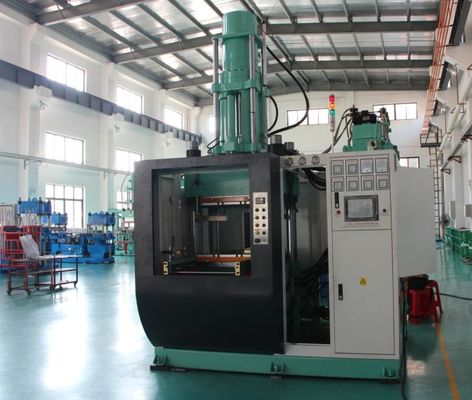

Thermoplastic Vertical Rubber Injection Molding Machine For NBR Products
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JuChuan |
| Certification: | CE ISO9001:2015 |
| Model Number: | JC-VI-AO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $20,000.00 - $46,800.00/acres |
| Packaging Details: | Fixed with hard straps |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Unit/Units per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Clamping Force: | 50~1000Ton | Type: | Injection Molding Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Power: | 16.90~64.5Kw |
| Injection Rate: | Adjustable | Automatic: | Yes |
| Opening Stroke: | 280-1500 Mm | Injection Weight: | 500~10000cc |
| Clamp Force(Ton): | 50~1000 | Injection Volume(cc): | 500~10000 |
| Injection Pressure(kgf/xm2): | 1800 | Platen Size(mm): | 300*300~1200*1200 |
| Plunge Stroke(mm): | 300~500 | Heater Capacity(kw): | 8.4~42 |
| Gross Weight(Ton): | 5.5~21 | Port: | Guangzhou |
| Clamp Force: | 50-1000 | Injection Volume: | 500-4000 |
| Injection Pressure: | 1800 | Plunger Stroke: | 300-500 |
| Opening Mold: | 2RT3RT4RT | Gross Weight: | 5.5-10ton |
| High Light: | Thermoplastic Vertical Rubber Injection Molding Machine,NBR Products Vertical Rubber Injection Molding Machine,Thermoplastic Rubber Injection Molding Machine |
||
Product Description
high precision 0.1g NBR material rubber gasket O ring seal making machine price
New Arrival "all-in-all-out" Injection Molding Technology:
- Visible Feeding System:
- Excellent Plasticizing Effects:
- High Temperature Ranges:
- Save Raw Rubber Material:
Machine Technical Charateristics:
-
Suitable for automotive and electronic rubber parts, high / cold temprature precision rubber parts, especially NBR products.
-
All-in-out structure, sprueless injection without material loss controlable injecting material temperature.
-
Excellent for high precision molding part
-
5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1g
-
Anti-collision molding system prevent mold damage occurring from misalignment(patented)
-
Servo-controlled system up to 40% energy saving
-
Proportional backpressure controlling characteristic
Technical parameter
Technical Parameters:
| Model | Unit | 200VI-AO | 300VI-AO | 400VI-AO | 600VI-AO |
| Clamping Force | Ton | 200 | 300 | 400 | 600 |
| Injection Capacity | cc | 2000 | 3000 | 4000 | 6000 |
| Injection pressure | kgf/cm² | 1800 | 1800 | 1800 | 1800 |
| Operation table size | mm | 550*560 | 700*700 | 700*700 | 850*850 |
| Min. Mold Thickness | mm | 100 | 100 | 100 | 100 |
| Plunger stroke | mm | 400 | 400 | 400 | 500 |
| Distance of Thermo-plate | mm | 500~600 | 500~600 | 500~600 | 600~700 |
| Distance of Tie bar | mm | 640*310 | 820*395 | 820*395 | 970*500 |
| Die sinking type | 2RT/ 3RT/ 4RT-Upper Ejector-Bottom Ejector | ||||
| Max. Operating Pressure | Mpa | 20 | 20 | 20 | 20 |
| Motor Power | hp | 15 | 15 | 15 | 20 |
| Electric Heating Power | Kw | 15.3 | 24 | 24 | 29.75 |
| Total Power | Kw | 30.3 | 39 | 39 | 48.75 |
| Gross weight | Ton | 7.5 | 9 | 10 | 14.2 |
| Dimension | mm | L2600*W2000*H4000 | L2750*W2265*H4200 | L2750*W2265*H4200 | L3200*W2500*H4350 |
Mahcine Applications :
-
"all-in-out" series silicone rubber injection molding machine is advanced rubber molding machine, it's structure is compact with wide applicability, high efficiency and high precision.
-
Especially it is suitable for the rubber products of complex shapes, exhausting difficultly, difficult to molding, high presision injection molding.
-
Suitable for multilateral, polygonal and other complicated shape products, especially for NBR products, O ring products.
-
Particularly for cooking utensil, sporting goods , medical supplies, auto accessories,high and low voltage electricity, electronic accessory and other high precision applications
Our Services
Our Services Conception:
-
Cost efficient recommendations and high quality products with continuous improvement is key to our service for customer.
-
we are committed to providing full after-market service to all of our customers by online instructions or video reference.
-
Installation and debugging: Our engineers will teach you about the installation and debugging for free when the machine are finished.
-
After-sales service: We will supply the free repairment on this machine for one year. ( the service is only for natural damage)
