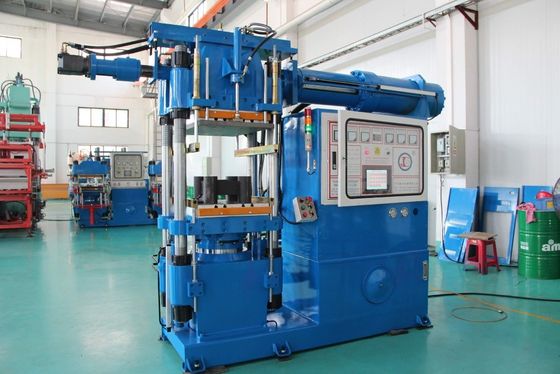

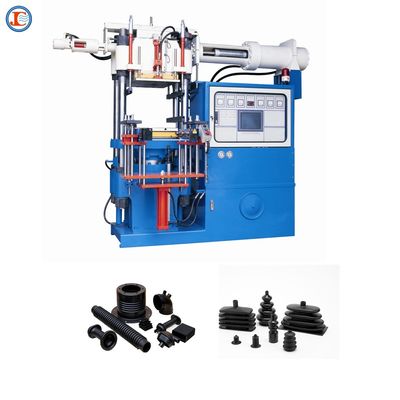

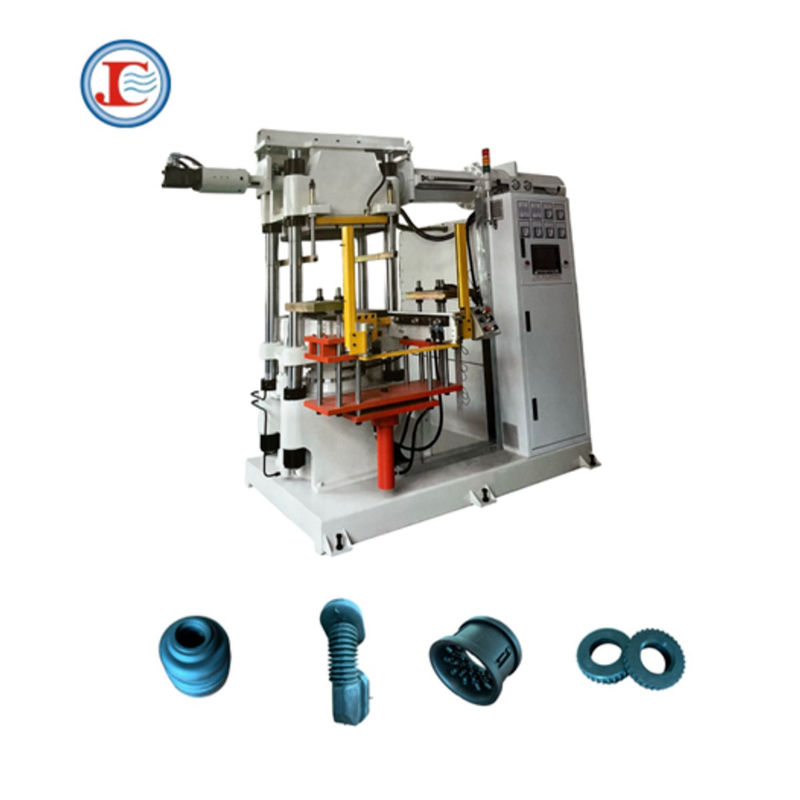

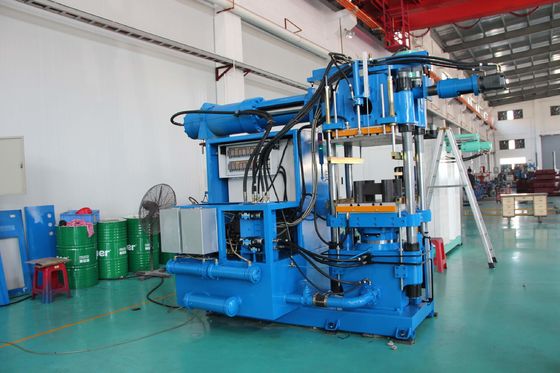

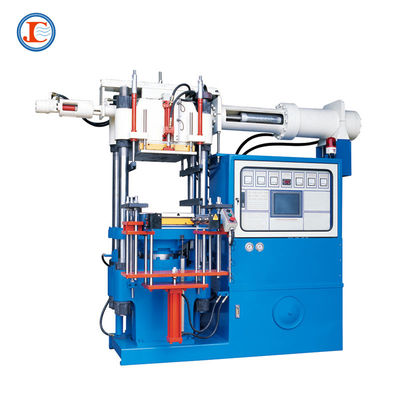

China Factory Price 2000cc Horizontal Rubber Injection Molding Machine for making auto parts car parts
Product Details:
| Place of Origin: | China Guangzhou |
| Brand Name: | Juchuan |
| Certification: | ISO9001:2015 |
| Model Number: | JC-200HI-FL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 40000-45000/set |
| Packaging Details: | container |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Sets per Month |
|
Detail Information |
|||
| Mold Openning Type: | 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die | Motor Power: | 11kw |
|---|---|---|---|
| Injection Volume: | 2000cc | Max Operating Pressure: | 20Mpa |
| Clamping Force: | 200 | Platen Size: | 550*560mm |
| Min. Mold Thickness: | 100mm | Tie Bar Distance: | 640*310mm |
| Gross Weight: | 7.8ton | Heater Power: | 15.3KW |
| Total Power: | 26.3KW | Heating Plates Distance: | 500-600mm |
Product Description
China Factory Price 2000cc Horizontal Rubber Injection Molding Machine for making auto parts car parts
Product Description:
The Horizontal Rubber Injection Molding Machine is a hydraulic press molding machine designed for rubber injection molding, moulding and making insulator. It features powerful motor power of 11KW, and is equipped with Japan Mitsubishi control system for precision operation. The maximum operating pressure is up to 20Mpa, and the machines gross weight is 7.8ton. It offers superior performance and stability when it comes to rubber injection molding. This machine is the ideal choice for efficient and accurate rubber injection molding.
Machine Features:
* Adjustable curing and injection speed with multiple injection capability.
* Anti-damage function of the molding from the misalignment (patented).
* Three stages of pressure and speed of mold opening/closing.
* Mainly for all types of rubber parts.
* Horizontal first-in-last-out injection structure.
Technical Parameters:
| Model | 200HI-FL | 300HI-FL | 400HI-FL | 500HI-FL |
| Clamping Force (Ton) | 200 | 300 | 400 | 500 |
| Injection Volume (cc) | 2000 | 3000 | 4000 | 8000 |
| Injection Pressure (kgf/cm²) | 2000 | 2000 | 2000 | 2000 |
| Platen Size (mm) | 550*560 | 700*700 | 700*700 | 900*900 |
| Plunger Diameter (mm) | Φ360 | Φ450 | Φ500 | Φ560 |
| Min. Mold Thickness (mm) | 100 | 200 | 200 | 200 |
| Plunger Stroke (mm) | 400 | 400(600) | 400 | 500 |
| Heating Plates Distance (mm) | 500-600 | 600 | 600 | 700 |
| The Bar Distance (mm) | 640*310 | 820*395 | 820*395 | 1105*475 |
| Mold Opening Type | 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die | |||
| Max. Operating Pressure (Mpa) | 20 | 20 | 20 | 20 |
| Motor Power (KW) | 11 | 11 | 11 | 11 |
| Heating Power (KW) | 15.3 | 24 | 24 | 24.2 |
| Total Power (KW) | 26.3 | 35 | 35 | 35.2 |
| Gross Weight (Ton) | 7.8 | 9.5 | 10.5 | 28 |
| Machine Size L*W*H (mm) | 3400*2400*2600 | 3500*2600*2700 | 3500*2600*2700 | 5100*3400*3000 |
Applications:
Juchuan HI-FL Horizontal Rubber Injection Molding Machine is perfect for producing rubber insulator and silicon insulator. This machine is made in China Guangzhou and has a max operating pressure of 20Mpa. It is equipped with an injection molding mold type and Japan Mitsubishi control system. It has a clamping force of 300 and motor power of 11kw, making it an ideal choice for silicon insulator making machine and Silicon Insulator Injection Machine.
Company Information:
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our Main Products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Trade Show:
Our Service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
