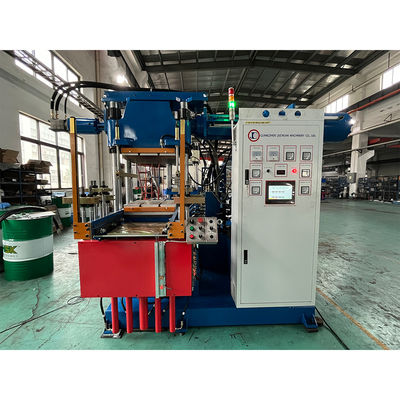

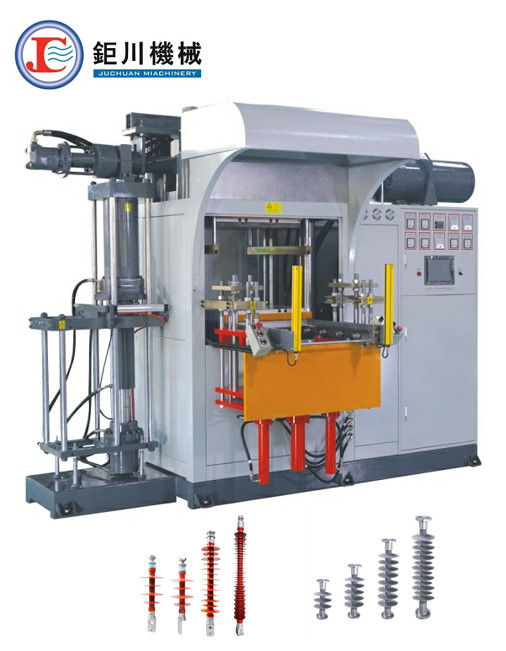

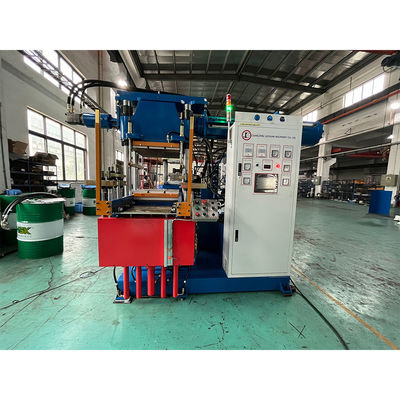

Adjustable Horizontal Injection Machine Composite Polymer Insulator Making Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001:2015 |
| Model Number: | JC- HI-FL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD32200-45000 set |
| Packaging Details: | container |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Sets per Month |
|
Detail Information |
|||
| Voltage: | Adjusted According To The Local Area | Dimension(L*W*H): | 3400*2400*2600 |
|---|---|---|---|
| Weight: | 7.3ton | Warranty: | 1 Year |
| Power (kW): | 30.3 | Clamping Force: | 200ton |
| Max Opening: | 500mm | Rated Pressure: | 20Mpa |
| After-sales Service Provided: | Online Support, Video Technical Support | Port: | Nansha Port, China |
| Clamp Force: | 50-1000 | Injection Volume: | 500-4000 |
| Injection Pressure: | 1800 | Plunger Stroke: | 300-500 |
| Opening Mold: | 2RT3RT4RT | Gross Weight: | 5.5-10ton |
| High Light: | Adjustable Horizontal Injection Machine,Injection Composite Polymer Insulator Making Machine,Composite Polymer Insulator Horizontal Injection Machine |
||
Product Description
Factory Price Composite Polymer Insulator Making Machine With Horizontal Injection Machine
Machine Features:
* Adjustable curing and injection speed with multiple injection capability.
* Anti-damage function of the molding from the misalignment (patented).
* Three stages of pressure and speed of mold opening/closing.
* Mainly for all types of rubber parts.
* Mainly for all types of rubber parts.
Technical Parameters:
| Model | 200HI-FL | 300HI-FL | 400HI-FL | 500HI-FL |
| Clamping Force (Ton) | 200 | 300 | 400 | 500 |
| Injection Volume (cc) | 2000 | 3000 | 4000 | 8000 |
| Injection Pressure (kgf/cm²) | 2000 | 2000 | 2000 | 2000 |
| Platen Size (mm) | 550*560 | 700*700 | 700*700 | 900*900 |
| Plunger Diameter (mm) | Φ360 | Φ450 | Φ500 | Φ560 |
| Min. Mold Thickness (mm) | 100 | 200 | 200 | 200 |
| Plunger Stroke (mm) | 400 | 400(600) | 400 | 500 |
| Heating Plates Distance (mm) | 500-600 | 600 | 600 | 700 |
| The Bar Distance (mm) | 640*310 | 820*395 | 820*395 | 1105*475 |
| Mold Opening Type | 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die | |||
| Max. Operating Pressure (Mpa) | 20 | 20 | 20 | 20 |
| Motor Power (KW) | 11 | 11 | 11 | 11 |
| Heating Power (KW) | 15.3 | 24 | 24 | 24.2 |
| Total Power (KW) | 26.3 | 35 | 35 | 35.2 |
| Gross Weight (Ton) | 7.8 | 9.5 | 10.5 | 28 |
| Machine Size L*W*H (mm) | 3400*2400*2600 | 3500*2600*2700 | 3500*2600*2700 | 5100*3400*3000 |
Company Information:
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime.
(The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
