Product Details:

Place of Origin: Guangdong China
Brand Name: JUCHUAN
Certification: ISO9001:2015
Model Number: JC-VI-FL

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD 21800-45000/set
Packaging Details: container
Delivery Time: 45days
Payment Terms: L/C, T/T
Supply Ability: 100 Sets per Month
Get Best Price Contact Now

Detail Information

Clamp Force: 100-400 Injection Volume: 1000-4000cc
Injection Pressure: 2000kgf/cm2 Plunger Stroke: 350-500
Opening Mold: 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die Gross Weight: 6.4-12ton
Total Power: 17.5-35ton Motor Power: 11KW
Heating Power: 15.3KW

Product Description

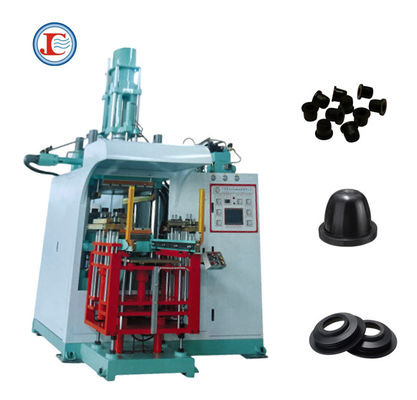

China Factory Sale VI-FL Series Vertical Rubber Injection Molding Machine for making rubber products

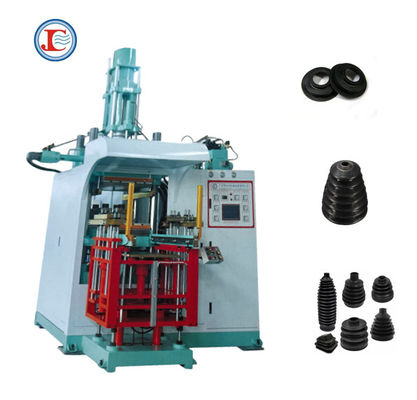

China Factory Sale VI-FL Series Vertical Rubber Injection Molding Machine for making rubber products 0

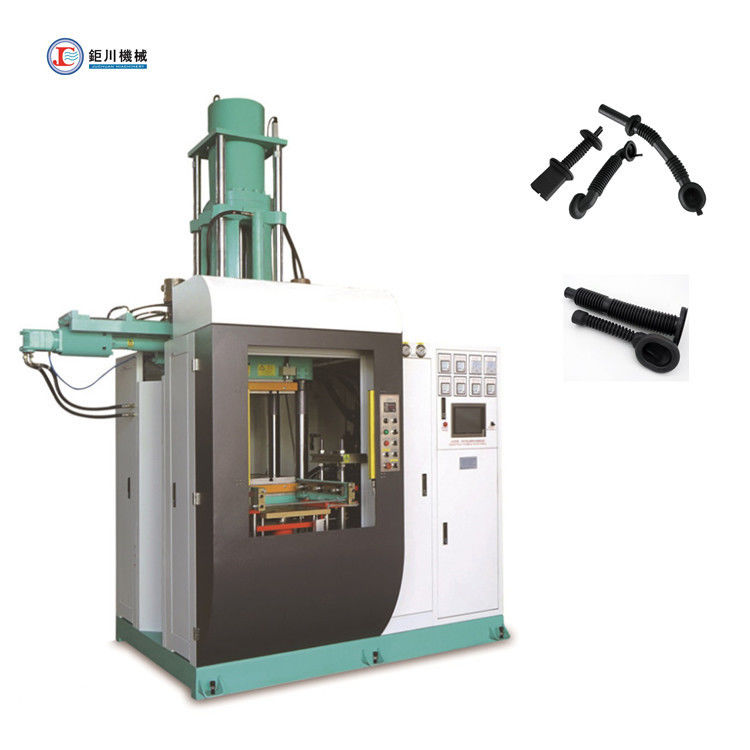

China Factory Sale VI-FL Series Vertical Rubber Injection Molding Machine for making rubber products 1



Visible Feeding System:

  • To avoid the traditional techniques which cannot know about the situations like temperature/hardness/ Plasticizing before vulcanizing.
  • can efficiently get control of the raw material Plasticizing status, can make adjustment in time.
  • High Precision injection molding technicals applies to all complicated rubber parts injection molding.



Excellent Plasticizing Effects:

  • Excellent Plasticizing effects, reduce the waste rubber material, avoid blocking the cylinder, easy for cleaning. And easy to switch the different colors of raw material.



High Temperature Ranges:

  • Simple structure, Plasticizing temperature between 90 ℃ and 100 ℃, ensure good Plasticizing effects.



Save Raw Rubber Material:

  • Can handle with the raw rubber material as hardness as 85°,can improve coefficient of utilization of raw material.





Specific Charateristics:

  • Suitable for automotive and electronic rubber parts, high / cold temprature precision rubber parts, especially NBR products.
  • All-in-out structure, sprueless injection without material loss controlable injecting material temperature.
  • Excellent for high precision molding part
  • 5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1g
  • Anti-collision molding system prevent mold damage occurring from misalignment(patented)
  • Servo-controlled system up to 40% energy saving
  • Proportional backpressure controlling characteristic
  •

Machines Main Features:

This machine owns the function of automatic injection rubber and vulcanizing. After setting your vulcanization time, vulcanization temperature, exhausting times in this PLC cabinet, the machine will automatically close the mold, and vulcanization. After reaching time of vulcanization, the machine will automatically open the mold.

  1. This machine owns function of automatic push and pull the mold in and out. After mold opening, the automatic adjustable rail device will push the bottom mold out.
  2. The machine will automatically knock the mold. After pushing the bottom mold out, the machine will knock the bottom bold. This is named 2 RT.
  3. This ejection device also can be designed for 3 RT and 4 RT. 3 RT means your mold is three pieces, 4RT means your mold is 4 pieces.
  4. This machine is one unit structure. For traditional type machine, the principle machine and hydraulic station is divided into 2 parts. While for our new structure, it is one unit.
  5. The PLC cabinet, LED screen, and other main electrical spare part is from Japan or Germany.
  6. All hydraulic station spare part is from Parker Brand of USA.
  7. For sealing, our company adopts the sealing from Japan brand.
  8. For heating plate, cylinder, piston and other metal spare parts, all are processed in the CNC machine center, ensuring it has high accuracy and good quality.



Main Technical Parameters:



Model 100VI-FL 200VI-FL 300VI-FL 400VI-FL
Clamp Force(Ton) 100 200 300 400
Injection Volume(cc) 1000 2000 3000 4000
Injection Pressure(kgf/cm²) 2000 2000 2000 2000
Platen Size(mm) 400*400 550*560 700*700 700*700 (800*1000)
Plunger Diameter(mm) Φ250 Φ360 Φ450 Φ500
Min. Mold Thickness(mm) 50 100 100 100
Plunger Stroke(mm) 350 400 400(600) 400(500)
Heating Plates Distance(mm) 400-500 500-600 500-600 500-600
Tie Bar Distance(mm) 515*230 640*310 820*395 820*395
Mold Opening Type 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die
Max. Operating Pressure 20 20 20 20
Motor Power(KW) 7.5 11 11 11
Heating Power(KW) 10 15.3 24 24
Total Power(KW) 17.5 26.3 35 35
Gross Weight(Ton) 6.4 7.8 9.6 12
Machine Size L*W*H(mm) 2400*1650*3200 2600*2000*4000 2750*2265*4200 2750*2265*4200/ 3700*3800*4950







Application Products

China Factory Sale VI-FL Series Vertical Rubber Injection Molding Machine for making rubber products 2



Related Products

HTB1p686PVXXXXc1aXXXq6xXFXXXV

JC-LV_08 JC--VI-AO_09 JC-LV_10


Shipping and packing

 2







Company information

* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.



Our main products

Silicone rubber injection molding machine

Vertical hydraulic rubber injection machine

Horizontal silicone rubber injection machine

Liquid silicone injection molding machine

Vacuum compression machine

Silicone rubber hot press machine



China Factory Sale VI-FL Series Vertical Rubber Injection Molding Machine for making rubber products 8



China Factory Sale VI-FL Series Vertical Rubber Injection Molding Machine for making rubber products 9





Trade show:

.jpg



 5





Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
