Automatic Factory Price Vertical Rubber Injection Molding Machine for making auto parts
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Juchuan |
| Certification: | ISO9001:2015 |
| Model Number: | JC-VI-FO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD$23,000.00 - $46,800.00/set |
| Packaging Details: | shrink film paking |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Set/Sets per Month vacuum press machine |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Bearing, Motor | Machine Type: | Rubber Injection Machine |
| Voltage: | 380V/220V | Dimension(L*W*H): | 1800*2550*3100 |
| Weight: | 8000 | Warranty: | 1 Year |
| Power (kW): | 26.3 | Key Selling Points: | Competitive Price |
| Showroom Location: | None | Applicable Industries: | Manufacturing Plant |
| Marketing Type: | Hot Product 2019 | Port: | Guangzhou |
Product Description

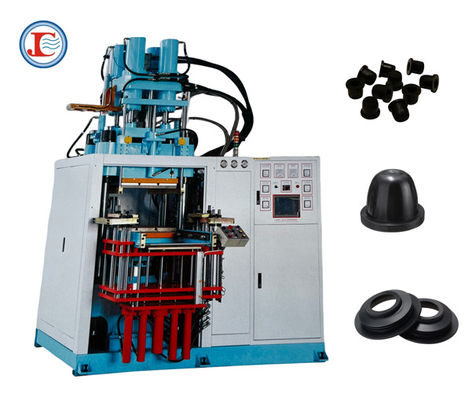

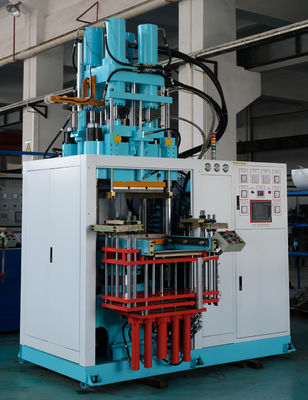

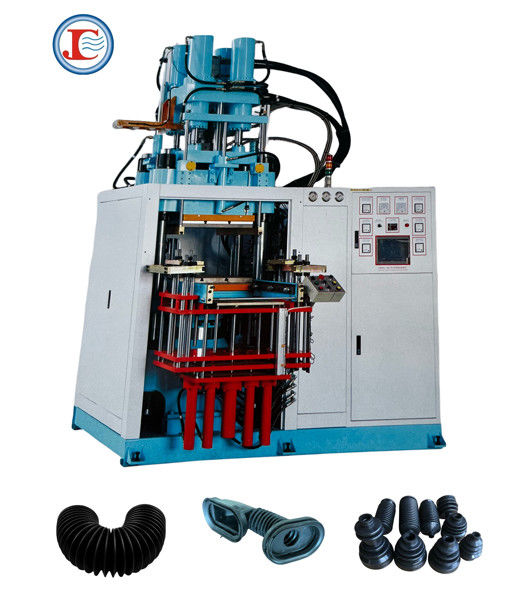

Factory Price Vertical Rubber Injection Molding Machine
for making car parts auto parts
Machine Features
* This machine is suitable for making car rubber shock absorber, dust cover and hhoses, and some complex structure rubber products.
* Accurate and consistent hydraulic system.
* Special injetion sealing ring structure design, make sure no rubber material overflow.
* Fist in first out injection structure and four cylinders balance injection design.
Technical Parameter
| Model | 100VI-FO | 200VI-FO | 300VI-FO | 400VI-FO | 600VI-FO | 800VI-FO |
| Clamp Force(ton) | 100 | 200 | 300 | 400 | 600 | 800 |
| Injection Volume(cc) | 1000 | 2000 | 3000(4000) | 4000 | 6000 | 8000(10000) |
| Injection Pressure(kgf/cm2) | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Platen Size(mm) | 400*400 | 550*560 | 700*700 | 700*700 | 850*850 | 1000*1000 |
| Plunger Diameter(mm) | Φ250 | Φ360 | Φ450 | Φ500 | Customized | Customized |
| Min. Mold Thickness(mm) | 50 | 100 | 100 | 100 | 100 | 100 |
| Plunger Stroke(mm) | 350 | 400 | 400(600) | 400 | 500 | 1000 |
| Heating Plates Distance(mm) | 400-500 | 500-600 | 500-600 | 500-600 | 600-700 | 1600 |
| Tie Bar Distance(mm) | 515*230 | 640*310 | 820*395 | 820*390 | 970*500 | 1240*590 |
| Mold Opening Type | 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die | |||||
| Max. Operating Pressure(MPa) | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power(KW) | 7.5 | 11 | 11 | 11 | 15 | 22+11 |
| Heating Power(KW) | 10 | 15.3 | 24 | 24 | 29.5 | Steam or Oil Heating |
| Total Power(KW) | 17.5 | 26.3 | 35 | 35 | 44.75 | 47 |
| Gross Weight(Ton) | 6.5 | 8 | 9.5 | 11 | 14.5 | 40 |
| Machine Size L*W*H(mm) | 1600*2100 *2800 | 1800*2550 *3100 | 2000*2700 *(3200-3400) | 2000*2700 3200 | 2200*2800 *3500 | 5120*2600 *6600 |
Applications Products
Company Information
Guangzhou Juchuan Machinery Co., Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products: silicone rubber injection molding machine, vacuum compression molding machine, hot press machine, injection moulds and the auxiliary equipment like robot arms.
Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have built up the complete quality management system and the after-sale service system, based on the standard of GB/T19001-2016/ISO9001-2015. With the idea of “Quality is the basic to create value”, we commit to provide the best technical support and sales services for all our clients.
So far, our products have been sold to Germany, Russia, Turkey, Thailand, Vietnam, Malaysia, Cambodia, India, Saudi Arabia, Sudan, Pakistan, Tunisia, Israel and Afghanistan.
Trade Show
Our Services
1. Free technology training or machine inspection at our factory.
2. Free Installation and debugging: our engineers will teach you installation and debugging for free.
3. After-sales service: we will supply the free repairment on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage.)
4. Online remote control for software problems, Whatspp or Wechat for video checking.
