High Quality 400 ton rubber injection molding machine for making rubber damper from China Factory
Product Details:
| Place of Origin: | China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001-2015 |
| Model Number: | JC- HI-FL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 35000 - 46800/set |
| Packaging Details: | Fixed with hard straps |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Sets per Month |
|
Detail Information |
|||
| Clamp Force(Ton): | 400 | Injection Volume(cc): | 2000 |
|---|---|---|---|
| Min. Mold Thickness(mm): | 200 | Plunger Stroke(mm): | 400 |
| Heating Plates Distance(mm): | 600 | Tie Bar Distance(mm): | 820*395 |
| Mold Opening Stroke: | 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die | Max. Operating Pressure(MPa): | 20 |
| Motor Power(KW): | 11 | Heater Power(KW): | 24 |
| Total Power(KW): | 35 | Gross Weight(Ton): | 10.5 |
| High Light: | 400 Ton Rubber Injection Molding Machine,Rubber Injection Molding Machine For Damper |
||
Product Description

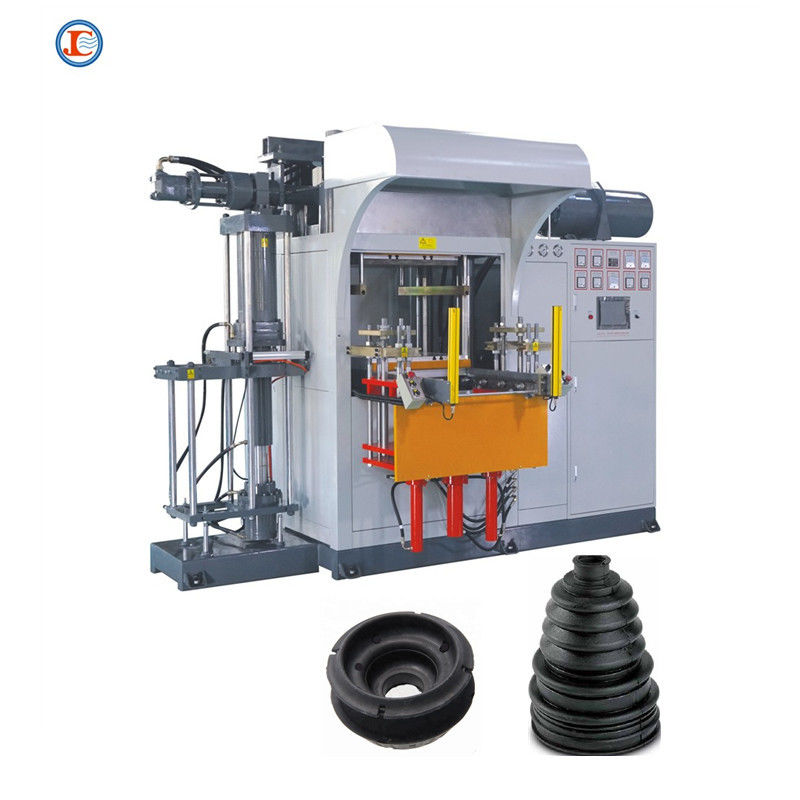

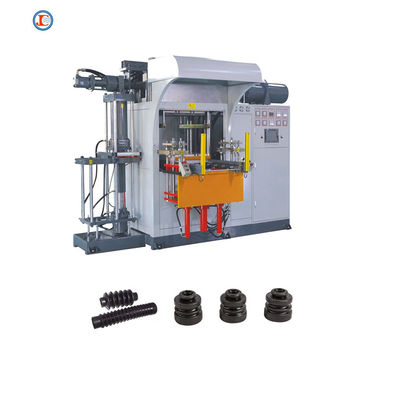

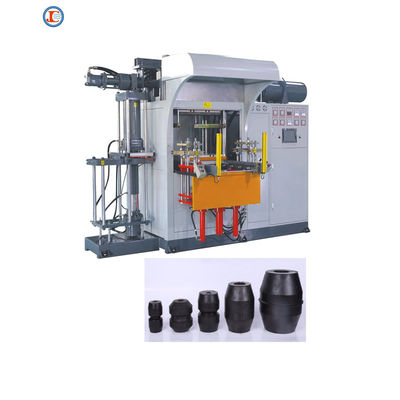

High Quality 400 ton rubber injection molding machine
for making rubber damper from China Factory
Application for your reference
Juchuan HI-FL Horizontal Rubber Injection Molding Machine is perfect for producing rubber silicone insulator rubber damper, auto parts etc. This machine is made in China Guangzhou and has a max operating pressure of 20Mpa. It is equipped with an injection molding mold type and Japan Mitsubishi control system. It has a clamping force of 300 and motor power of 11kw.
| Model | Unit | 200HI-FL | 300HI-FL | 400HI-FL | 550HI-FL | 600HI-FL |
| Clamping Force | Ton | 200 | 300 | 400 | 550 | 600 |
| Injection Capacity | cc | 2000 | 3000 | 4000 | 10000(12000) | 6000 |
| Injection pressure | kgf/cm² | 2000 | 2000 | 2000 | 2000 | 2000 |
| Operate table size | mm | 550*550 | 700*700 | 700*700 | 700*1500 | 850*850 |
| Min. Mold Thickness | mm | 100 | 200 | 200 | 510 | 200 |
| Plunger stroke | mm | 500 | 400 | 400 | 700 | 500 |
| Distance of Thermo-plate | mm | 600 | 600 | 600 | 960 | 700 |
| Distance of Tie bar | mm | 640*310 | 820*395 | 820*395 | 820*640 | 970*500 |
| Die sinking type | 2RT-3RT-4RT-Upper ejector-Bottom ejector | |||||
|
Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) | 15(11kw) |
30/7.5 (22kw/5.5kw) |
20(15kw) |
| Heater Power | Kw | 15.3 | 24 | 24 | 45 | 29.75 |
| Total Power | Kw | 30.3 | 39 | 39 | 80 | 48.75 |
| Gross weight | Ton | 7.3 | 9.5 | 10.5 | 25 | 14.5 |
| Dimension(L*W*H) | mm |
3400*2400 *2600 |
3500*2600 *2700 |
3600*2600 *2700 |
5200*2600 *3500 |
3800*2800 *2800 |
About us
Our Main Products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
