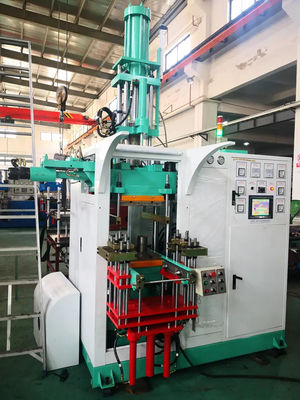

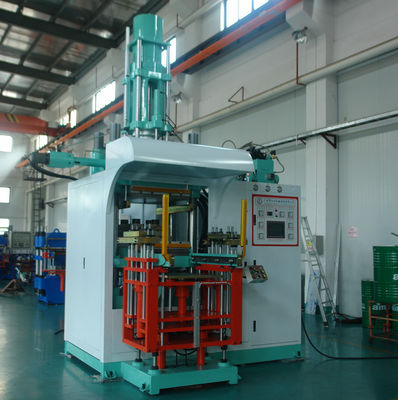

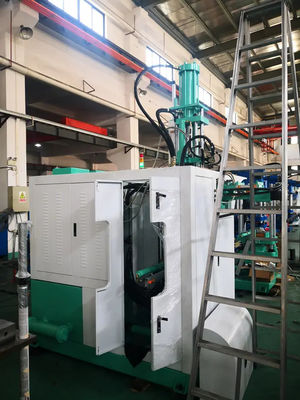

Screw Diameter Range 20-60mm Silicone Rubber Injector With Customized Machine Dimension

Screw Diameter Range 20-60mm Silicone Rubber Injector With Customized Machine Dimension

Product Details:

Place of Origin: China Guangzhou
Brand Name: JUCHUAN
Certification: CE ISO9001:2015
Model Number: Silicone Rubber Injection Molding Machine

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $14,000-$42000/sets >=1 sets
Packaging Details: Fixed with hard straps
Delivery Time: 45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Heating Power: 6-30KW Injection Pressure: 100-300MPa
Screw Diameter: 20-60mm Heating Zone: 3-5
Injection Weight: 50-3000g Ejector Stroke: 50-150mm
Clamping Stroke: 200-500mm Control System: PLC
High Light:

20mm silicone rubber injection molding machine

,

customized silicone rubber injection molding machine

,

60mm silicone injection molding machine

Product Description

Screw Diameter Range 20-60mm Silicone Rubber Injector With Customized Machine Dimension

Screw Diameter Range 20-60mm Silicone Rubber Injector With Customized Machine Dimension 0





Product Description

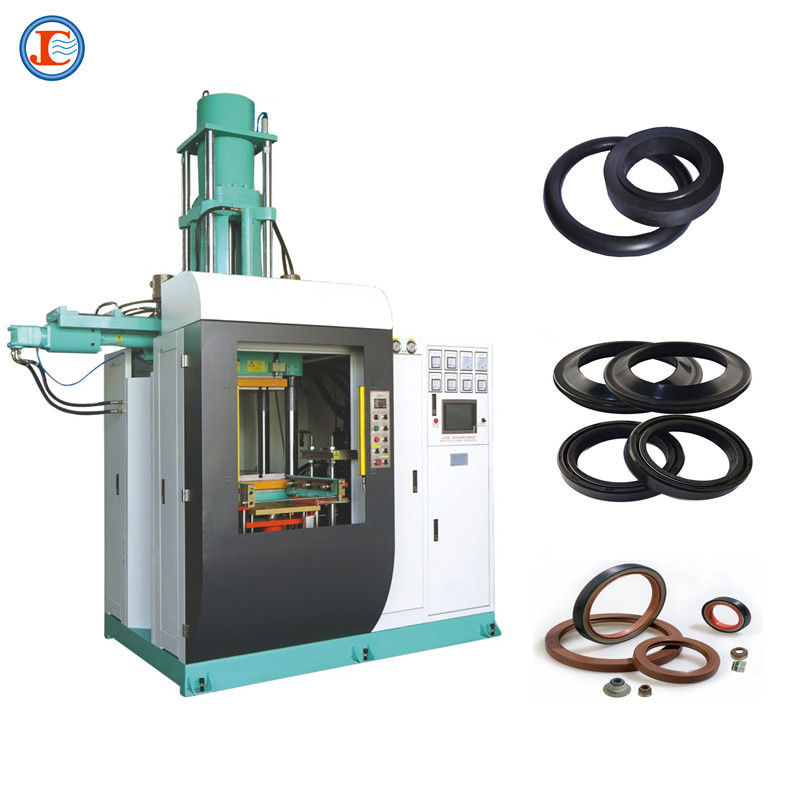

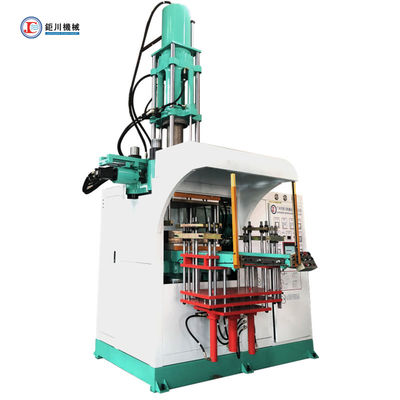

VI-AO Series Vertical "all-in-out" Silicone/Synthetic Rubber Injeciton Molding Machine

Feature:

• Suitable for automotive and electronic rubber parts, high/cold temp precision rubber parts, especially NBR products

• All-in-out structure, sprueless injection without material loss controllable injecting material temperature

• Excellent for high precision molding part

• 5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1 g

• Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)

• Servo-Controlled system -Up to 40% energy saving

• Proportional backpressure controlling characteristic



Model Unit 50VI-AO 100VI-AO 200VI-AO 300VI-AO 400VI-AO 600VI-AO 800VI-AO 1000VI-AO
Clamping Force Ton 50 100 200 300 400 600 800 1000
Injection Capacity cc 500 500 2000 3000 4000 6000 8000 10000
Injection pressure kgf/cm² 1800 1800 1800 1800 1800 1800 1800 1800
Operation table size mm 300*300 400*400 550*560 700*700 700*700 850*850 1000*1000 1200*1200
Min. Mold Thickness mm 50 50 100 100 100 100 150 150
Plunger stroke mm 300 350 400 400 400 500 500 500
Distance of Thermo-plate mm 350~450 400~500 500~600 500~600 500~600 600~700 650~800 650~800
Distance of Tie bar mm 400*140 515*230 640*310 820*395 820*395 970*500 1140*600 1340*800
Die sinking type 2RT-3RT-4RT-Upper Mold-Lower Mold

Max. Operating

Pressure

Mpa 20 20 20 20 20 20 20 20
Motor Power hp 7.5 10 15 15 15 20 20 25
Electric Heating Power Kw 8.4 10 15.3 24 24 29.75 35 42
Total Power Kw 16.9 20.5 30.3 39 39 48.75 54 64.5
Gross weight Ton 5.5 6 7.5 9 10 14.2 17.5 21

Dimension

(L*W*H)

mm

2000*1500

*H2800

2400*1650

*3200

2600*2000

*4000

2750*2265

*4200

2750*2265

*4200

3200*2500

*4350

L3450*W2750

*H4500

3750*3050

*5000









JC--VI-AO_02JC--VI-AO_03JC--VI-AO_04

Product Features

JC--VI-AO_05JC--VI-AO_06

Application

JC--VI-AO_07

JC-LV_08 JC--VI-AO_09 JC-LV_10
Company Information

JC-LV_11

FAQ

JC--VI-AO_13
