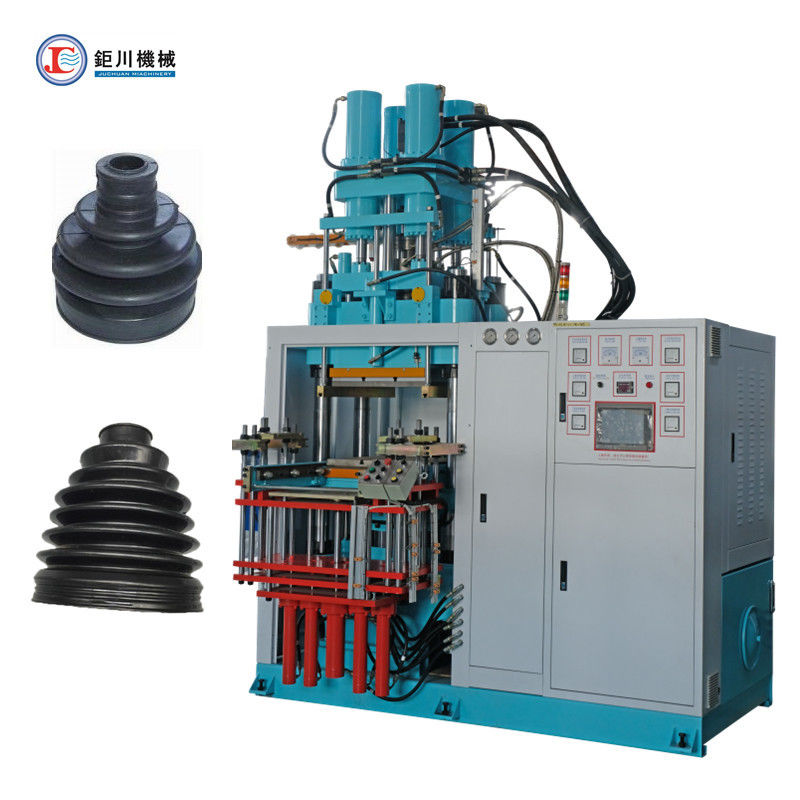

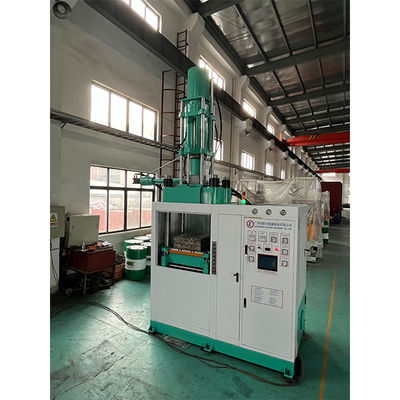

600 Ton First In Last Out Vertical Rubber Injection Molding Machine ISO9001:2015

Auto Rubber Dust Cover Rubber Processing Machinery Rubber Injection Molding Machine

Main Specification:

1. Adjustable curing and injection speed, precision injection, can be multiple injection.
2. Anti-collision molding system prevent mold damage occurring from misalignment(patented).
3. Three different pressure & speed for opening/closing mold.
4. Suitable for all type of complicated rubber parts, automotive parts, solid silicone products.

5. Accurate & consistent hydraulic pressure system. Good aligning of extruder barrel & plunger, lesser friction, preventing material verflow, accurate material measurement and stable injection process.

6. Easier maintenance than conventional machine due to bigger space in injection area.

7. Anti-collision Molding System prevent mold damage occurring from misalignment (Patented).

8. Four-cylinder straight lock plate clamping mechanism.

9. Good Durability.

Machine Main Parts Brand:

1. Casting( Ductile Cast Iron): high quality QT 500-07 ductile iron castings, five year warranty.
2. Oil Pump: Japan Yuken oil reaserch brand, good quality and durable
3. Directional Valve: Ensure the control precision and flexibility, good stability
4. PLC: Japan Mitsubishi PLC, it can achieve stability, durability, long life, fast operation
5. Motor: Dual motor drive independent of the oil, do not interfere with each other.
6. It can be operated separately, which makes more stale and more energy efficient
7. Panel master HMI: Advance Taiwan Panel master brand, high sensitivity and durability

First In Last Out Injection Molding Technology:

1. Simplified technical process, can realize high temperature rapid vulcanization of rubber products and shorten production cycle.
2. Products are accurate in size, uniform in physical and mechanical properties and high in quality, especially suitable for the molding and vulcanization of products.
3. High qualified products, greatly reduce inferior products.
4. Simple operation, reduced labor intensity, high degree of mechanization and automation
5. Lower Price for the machine, this first in last out machine price is lower than any other injection machines for normal silicone rubber materials.
6. Controlable injection molding technology ensure the whole proccess under control.

Machine Working Flow:

1. Firstly Close the mold and load the mold
2. After loading the mold, the main cylinder goes up to the predetermined position. Lower the vacuum hood. Suck out the air unit a state of vacuum is reached. The main cylinder goes up. Increase the pressure to expel bubbles out.
3. After bubbles are expelled completely, the state of vacuum exists no more. Lift the vacuum mask and curing.
4. Lower the main cylinder and unload the mold. Open the mold.
5. Take out the final product and put new material in.

Machine Main Applications:

1. Automotive Rubber Parts, Electronic Rubber Parts;
2. Body Rubber Parts, Rubber Boots for Cables;
3. Hydraulic Seals,Engine Mountings, Anti Vibration Mountings;
4. Cake silicone pads, pat feeding pads;
5. Silicone complicated parts.

Our Services:

1. Inspection: you or your staff can come for inspection for free when the machine is ready.
2. Training: you or your staff can come for inspection for free when you come for inspection.
3. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free,
4. We will offer you a manual for instructions for your daily operation reference.
5. We will supply the free repairment on thilfs machine for one year.
6. Online remote control for software problems, whatspp or wechat for video checking.

Main Technical Parameters:
