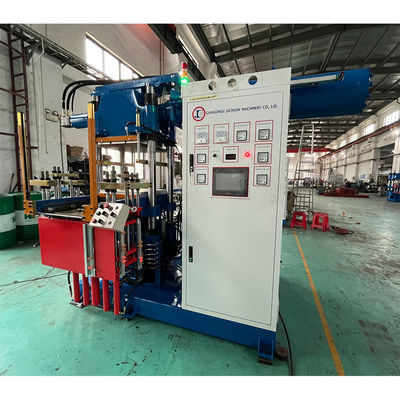

China Factory Price Horizontal Rubber Injection Molding Machine for making rubber silicone products
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | JUCHUAN |
| Certification: | SGS CE ISO9001:2015 |
| Model Number: | JC- HI-FL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 21800-40000one set |
| Packaging Details: | Fixed with hard straps |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Clamp Force(Ton): | 400 | Injection Volume(cc): | 4000 |
|---|---|---|---|
| Injection Pressure(kgf/cm2): | 2000 | Platen Size(mm): | 700*700 |
| Plunger Diameter(mm): | 500 | Heating Plates Distance(mm)): | 600 |
| Tie Bar Distance(mm): | 820*395 | Mold Opening Stroke: | 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die |
| Max. Operating Pressure: | 20 | Motor Power(KW): | 11 |
| Heater Power(KW): | 24 | Total Power(KW): | 35 |
| Gross Weight(Ton): | 9.5 | Machine Dimensions L*W*H(mm): | 3500*2600*2700 |
| High Light: | 20MPa Horizontal Injection Molding Machine,Horizontal Rubber Injection Molding Machine 2000 kgf/M2,20MPa Horizontal Rubber Injection Molding Machine |
||
Product Description
China Factory Price Horizontal Rubber Injection Molding Machine
for making rubber silicone products
Detailed Product Description
| Clamp Force: | 400 Ton | Injection Volume: | 10000cc |
|---|---|---|---|
| Injection Pressure: | 2000kgf/㎡ | Heat Plate Size: | L700xW700mm |
| Plunger Stroke: | 500mm | Heating Plates Distance: | 600mm |
| Tie Bar Distance: | 820*395mm | Max Operating Pressure: | 20MPa |
| Machine Weight: | 11.5 Ton | Machine Dimeansion: | 5160x2150x3260mm |
| High Light: |
automatic rubber moulding machine,rubber transfer moulding machine |
||
400 Ton Construction Rubber Component Injection Machine 4 Column Injection Machine
Rubber Molding 3 Methods:
- Compression molding
- Commonly used molding methods are used to manufacture certain rubber products with complex shapes such as leather cups and sealing rings. With the aid of the formed female and male molds, the rubber material is placed in the mold and heated to form.
- Injection molding
- Used for more complex rubber products, such as tire treads, hoses, and metal wire surface coating needs to be manufactured by injection molding.
- It is a method of putting a certain plasticity compound into the hopper of the extruder under the extrusion of the screw through a variety of mouths, also called templates, for continuous molding.
- Before extrusion, the rubber compound must be preheated to make the rubber compound soft and easy to extrude to obtain a smooth surface and accurate size rubber products.
- Calendering
- It is suitable for manufacturing simple sheet and plate products. It is a method of pressing the compounded rubber into a film with a certain thickness and a width by a calender, called calendering.
- Some textile products used in rubber products such as tires, tapes, hoses, etc. must be coated with a thin layer of glue. The glue is also called glue or rubbing on the fibers. The glue application process is usually completed on the calender.
- The fiber material needs to be dried and dipped before calendering. The purpose is to reduce the moisture content of the fiber material, so as not to evaporate and blister the water, and increase the temperature of the fiber material to ensure the quality of the calendering process.

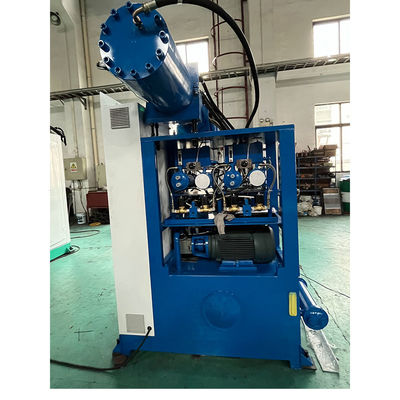

Hydraulic Equipment Characteristics:
| Model | Unit | 300HI-FL | 400HI-FL | 550HI-FL | 600HI-FL | 800HI-FL | 1000HI-FL |
| Clamping Force | Ton | 300 | 400 | 550 | 600 | 800 | 1000 |
| Injection Capacity | cc | 3000 | 10000 | 10000(12000) | 6000 | 8000 | 10000 |
| Injection pressure | kgf/cm² | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Operate table size | mm | 700*700 | 700*700 | 700*1500 | 850*850 | 1000*1000 | 1200*1200 |
| Min. Mold Thickness | mm | 200 | 200 | 510 | 200 | 250 | 250 |
| Plunger stroke | mm | 400 | 500 | 700 | 500 | 500 | 500 |
| Distance of Thermo-plate | mm | 600 | 600 | 960 | 700 | 750 | 750 |
| Distance of Tie bar | mm | 820*395 | 820*395 | 820*640 | 970*500 | 1240*590 | 1340*800 |
| Die sinking type | 2RT-3RT-4RT-Upper ejector-Bottom ejector | ||||||
| Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) | 30/7.5 (22kw/5.5kw) |
20(15kw) | 20(15kw) | 25(18.5kw) |
| Heater Power | Kw | 24 | 24 | 45 | 29.75 | 35 | 42 |
| Total Power | Kw | 39 | 39 | 80 | 48.75 | 54 | 64.5 |
| Gross weight | Ton | 9.5 | 10.5 | 25 | 14.5 | 18.5 | 22 |
| Dimension(L*W*H) | mm | 3500*2600 *2700 |
3600*2600 *2700 |
5200*2600 *3500 |
3800*2800 *2800 |
4000*3050 *2900 |
4150*3250 *3200 |

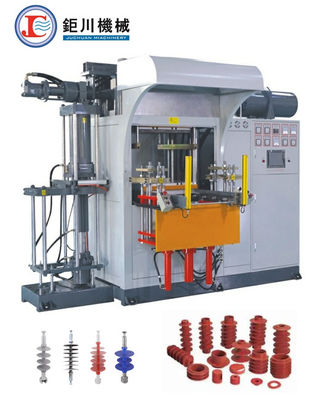

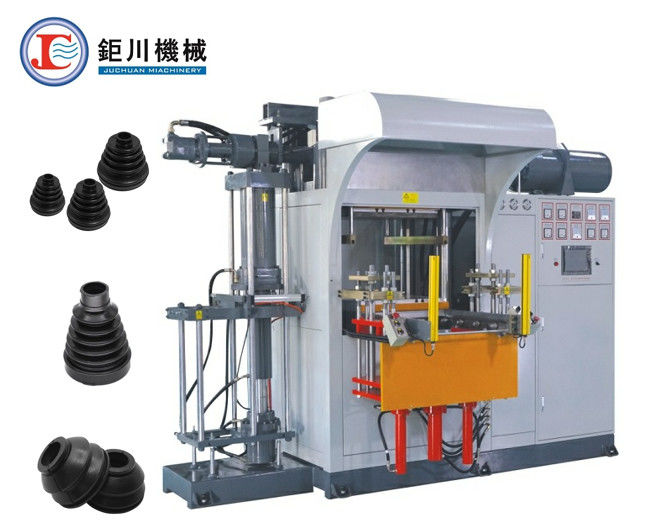

Application Products:
Packaging & Shipping
Shipping and packing
Company Information
Our Main Products
1. Silicone rubber injection molding machine
2. Vertical hydraulic rubber injection machine
3. Horiontal silicone rubber injection machine
4. Liquid silicone injection molding machine
5. Vacuum compression machine
6. Silicone rubber hot press machine
Exhibition Show:
Our Service
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
Want to Know more details about this product
