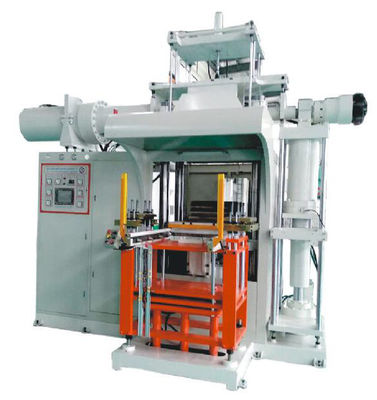

500 Ton LSR Insulator Injection Molding Machine For Electric Appliance Making
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001:2015 |
| Model Number: | JC- HI-FL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $55,000.00/sets >=1 sets |
| Packaging Details: | Fixed with hard straps |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Unit/per Month |
|
Detail Information |
|||
| Condition: | New | Style: | Horizontal |
|---|---|---|---|
| Distance Between Tie Bars(Width)(mm): | 200 Mm | Distance Between Tie Bars(Height)(mm): | 200 Mm |
| Ejector Stroke(mm): | 100 Mm | Ejector Force(kN): | 1000 KN |
| Theoretical Shot Volume(cm³): | 100 Cm³ | Injection Rate (g/s): | 100 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 100 G |
| Screw Diameter (mm): | 30 Mm | Weight (KG): | 8000 |
| Type: | Injection Molding Machine | Open Stroke(mm): | 200 Mm |
| Power (kW): | 40 KW | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Manufacturing Plant |
| Automatic: | Yes | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support |
| Injection Weight: | 10000cc | Injection Rate: | Adjustable |
| Opening Stroke: | 700 Mm | Injection Pressure(kgf/xm2): | 2000 |
| Plate Size:: | 700*1500mm | Heater Capacity(kw): | 24 |
| Clamp Force: | 500ton | Total Power: | 80KW |
| Dimensions: | 5200*2600*3500mm | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | Russia, South Africa | Clamping Force (kN): | 2000 KN |
| Port: | Guangzhou | ||
Product Description
500 Ton LSR Insulator Injection Molding Machine For Electric Appliance Making
Liquid Silicone Mainly Applications:
- Liquid silicone rubber (silicone rubber) has excellent physical properties. The application of liquid silicone rubber injection molding machine is more and more widely used in the production of rubber roller products such as OA rubber roller and silicone rubber manual dust removal roller; high voltage insulator and lightning arrester compound.
- High-voltage devices such as jackets, wall bushings, cold-shrinkable cable accessories, glass-sealed terminals, computers, electronic equipment, sealing rings, automotive and aerospace equipment, sports equipment such as diving masks, medical supplies, silicone rubber tableware, Baby pacifiers, etc.
- Full computer control; accurate measurement, uniform mixing; static pressure injection static pressure injection, liquid control or gas control nozzle, cooling plate, injection tube and nozzle with cooling water channel; easy and simple cleaning, reducing manpower and materials waste.
| Model | Unit | 200HI-FL | 250HI-FL | 300HI-FL | 400HI-FL | 550HI-FL | 600HI-FL |
| Clamping Force | Ton | 200 | 250 | 300 | 400 | 550 | 600 |
| Injection Capacity | cc | 2000 | 2500 | 3000 | 4000 | 10000(12000) | 6000 |
| Injection pressure | kgf/cm² | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Operate table size | mm | 550*550 | 600*700 | 700*700 | 700*700 | 700*1500 | 850*850 |
| Min. Mold Thickness | mm | 100 | 100 | 200 | 200 | 510 | 200 |
| Plunger stroke | mm | 500 | 500 | 400 | 400 | 700 | 500 |
| Distance of Thermo-plate | mm | 600 | 600 | 600 | 600 | 960 | 700 |
| Distance of Tie bar | mm | 640*310 | 705*400 | 820*395 | 820*395 | 820*640 | 970*500 |
| Die sinking type | 2RT-3RT-4RT-Upper ejector-Bottom ejector | ||||||
|
Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) | 15(11kw) | 15(11kw) |
30/7.5 (22kw/5.5kw) |
20(15kw) |
| Heater Power | Kw | 15.3 | 18 | 24 | 24 | 45 | 29.75 |
| Total Power | Kw | 30.3 | 33 | 39 | 39 | 80 | 48.75 |
| Gross weight | Ton | 7.3 | 8 | 9.5 | 10.5 | 25 | 14.5 |
| Dimension(L*W*H) | mm |
3400*2400 *2600 |
3400*2500 *2650 |
3500*2600 *2700 |
3600*2600 *2700 |
5200*2600 *3500 |
3800*2800 *2800 |
Applications:

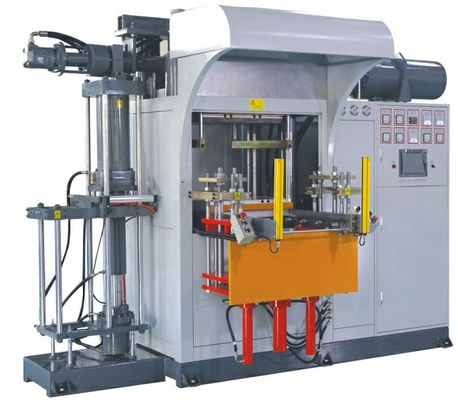

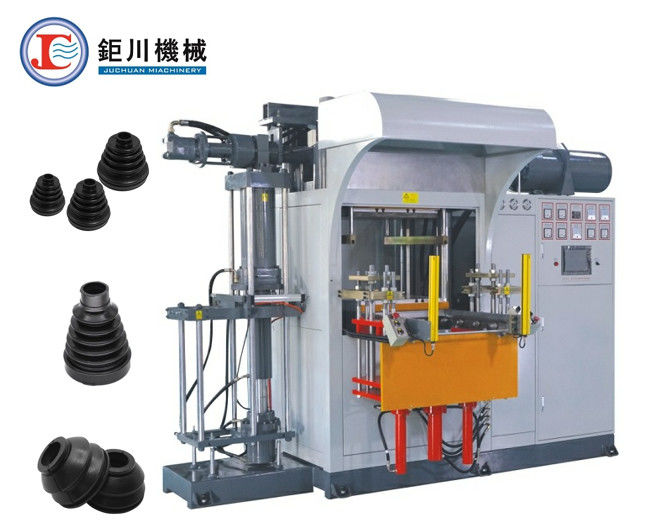

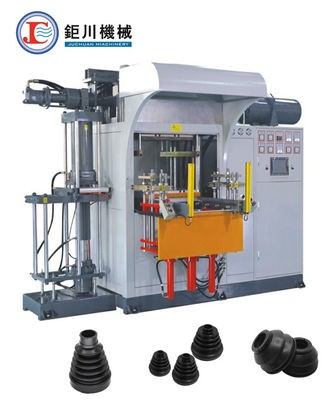

Juchuan HI-FL Horizontal Rubber Injection Molding Machine is perfect for producing rubber insulator and silicon insulator. This machine is made in China Guangzhou and has a max operating pressure of 20Mpa. It is equipped with an injection molding mold type and Japan Mitsubishi control system. It has a clamping force of 300 and motor power of 11kw, making it an ideal choice for silicon insulator making machine and Silicon Insulator Injection Machine.
Company Information:
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Trade show:
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
