300 ton 500 ton hydraulic silicon press machine for making silicone insulator
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001:2015 |
| Model Number: | JC- HI-FL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $20,000.00 - $46,800.00/sets |
| Packaging Details: | Fixed with hard straps |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Unit/Units per Month horizontal injection molding machine |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Rubber Injection Machine |
|---|---|---|---|
| Voltage: | 380v | Dimension(L*W*H): | 3400*2400*2600mm |
| Weight: | 7.3ton | Warranty: | 1 Year |
| Power (kW): | 30.3kw | Key Selling Points: | Famous Brand PLC |
| Showroom Location: | None | Applicable Industries: | Manufacturing Plant |
| After-sales Service Provided: | Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | None | Injection Rate: | Adjustable |
| Opening Stroke: | 280-1500 Mm | Injection Weight: | 2000~40000cc |
| Injection Pressure(kgf/xm2): | 2000 | Plunger Stroke(mm): | 400~700 |
| Heater Capacity(kw): | 30.3~150 | Gross Weight(Ton): | 7.3~650 |
| Model: | HI-FL | Port: | Guangzhou |
Product Description
300 ton 500 ton hydraulic silicon press machine for making silicone insulator

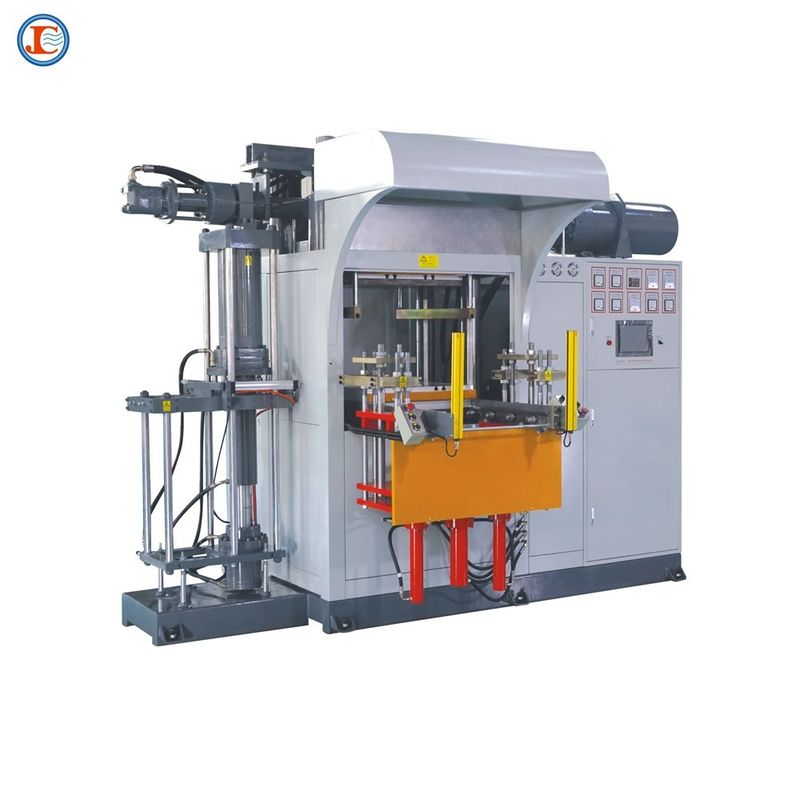

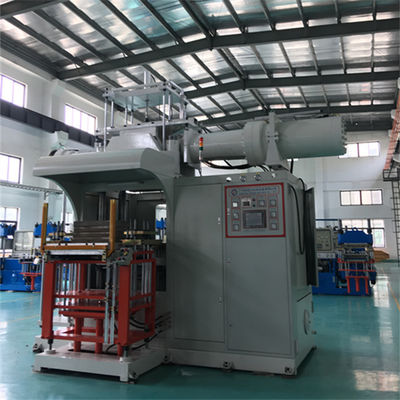

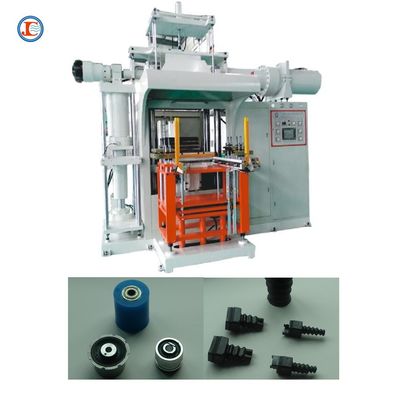

HI-FL Series Horizontal Silicone/Ssynthetic Rubber Injeciton Molding Machine
Feature
1.Equip with infrared camera and automatic alarm function in machine safety controlling.
2.Unique Two-Stage material injecting mechanism for better de-gasing purpose.
3.Improvement desigh of injection molding machine seat that able to enhance molded part quality and cosmectic.
4.Anti-collision Molding System prevent mold damage occurring from misalignment(Patented)
5.Equipable with silicone rubber device.
6.Suitable for all kind of rubber with hardness less than 80 shore A,silcone rubber parts,fire retardant parts etc
| Model | Unit | 200HI-FL | 250HI-FL | 300HI-FL | 400HI-FL | 550HI-FL | 600HI-FL |
| Clamping Force | Ton | 200 | 250 | 300 | 400 | 550 | 600 |
| Injection Capacity | cc | 2000 | 2500 | 3000 | 4000 | 10000(12000) | 6000 |
| Injection pressure | kgf/cm² | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Operate table size | mm | 550*550 | 600*700 | 700*700 | 700*700 | 700*1500 | 850*850 |
| Min. Mold Thickness | mm | 100 | 100 | 200 | 200 | 510 | 200 |
| Plunger stroke | mm | 500 | 500 | 400 | 400 | 700 | 500 |
| Distance of Thermo-plate | mm | 600 | 600 | 600 | 600 | 960 | 700 |
| Distance of Tie bar | mm | 640*310 | 705*400 | 820*395 | 820*395 | 820*640 | 970*500 |
| Die sinking type | 2RT-3RT-4RT-Upper ejector-Bottom ejector | ||||||
|
Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) | 15(11kw) | 15(11kw) |
30/7.5 (22kw/5.5kw) |
20(15kw) |
| Heater Power | Kw | 15.3 | 18 | 24 | 24 | 45 | 29.75 |
| Total Power | Kw | 30.3 | 33 | 39 | 39 | 80 | 48.75 |
| Gross weight | Ton | 7.3 | 8 | 9.5 | 10.5 | 25 | 14.5 |
| Dimension(L*W*H) | mm |
3400*2400 *2600 |
3400*2500 *2650 |
3500*2600 *2700 |
3600*2600 *2700 |
5200*2600 *3500 |
3800*2800 *2800 |
Applications:

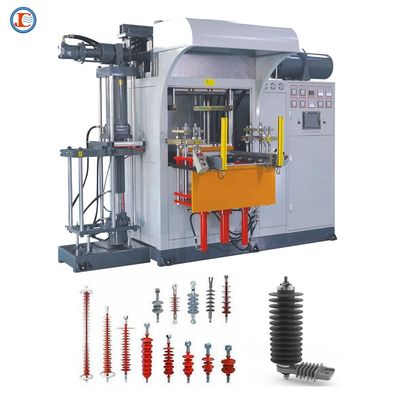

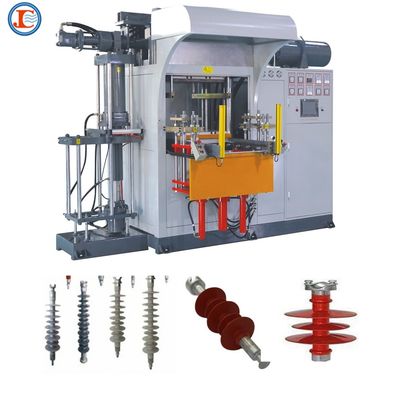

Juchuan HI-FL Horizontal Rubber Injection Molding Machine is perfect for producing rubber insulator and silicon insulator. This machine is made in China Guangzhou and has a max operating pressure of 20Mpa. It is equipped with an injection molding mold type and Japan Mitsubishi control system. It has a clamping force of 300 and motor power of 11kw, making it an ideal choice for silicon insulator making machine and Silicon Insulator Injection Machine.
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Trade show
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
