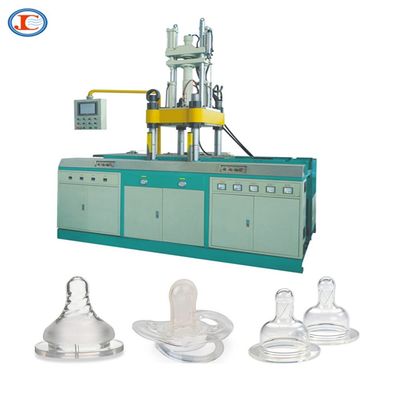

Full Automatic Lsr Injection Machine Liquid Silicone Baby Nipple Making Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JuChuan |
| Certification: | CE ISO9001 |
| Model Number: | JC-LV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $25,000.00 - $45,000.00/sets |
| Packaging Details: | Fixed with hard straps |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Type: | LSR Injection Molding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Biggest Injection Rate: | 180~210cc/s | Injection Pressure(kfg/cm2): | 750 |
| Injection Volume(cc): | 300~500 | Screw Diameter(mm): | 45,50,55 |
| Motor Capacity(kw): | 11~20 | Gross Weight(Ton): | 6.3~11 |
| Model: | JC-LV | Opening Stroke: | 300~350mm |
| Injection Rate: | 30g/s | Injection Weight: | 300~500cc |
| Power(W): | 11~20Kw | Automatic: | Yes |
| Plastic Type: | Other | Port: | Guangzhou |
| High Light: | Full Automatic Lsr Injection Machine,Lsr Baby Nipple Making Machine,Baby Nipple Lsr Injection Machine |
||
Product Description
Full Automatic Lsr Injection Machine Liquid Silicone Baby Nipple Making Machine
Liquid Silicone Injection Molding Machine
Features
1.Easy to inject: excellent thermal stability and cold resistance (use temperature-60 ℃, 250 ℃).
2. Molding automation: fully automated molding process, material mixing, material measurement, and molding control and even demolding, all by the machine high precision and no deviation operation, can make the product output multiply.
3. High material utilization rate, suitable for high quality products: it will not produce useless flange, no waste material, which is beneficial to environmental protection; die line can be controlled within 0.05 mm, to ensure that the product size and design size is completely consistent, Suitable for the production of high quality products.
4. Guarantee the product quality: adopt series connection, mix AB two liquids correctly, avoid mixing impurity, ensure the Density uniformity of AB silicone and the equal of vulcanization time, ensure high quality product.
5.Highly accurate vertical dispensing system is up to 0.15% accuracy.
6. Three working station with double plate design for better efficiency.
7. Suitable for electric insulator parts, all kinds of LSR container, oil seal, automotive parts and so on.
Machine parameter:
| Model | Unit | 100VI-IO | 200VI-IO |
| Clamping Force | Ton | 100 | 200 |
| Injection Capacity | cc | 180 | 180 |
| Injection pressure | kgf/cm² | 750 | 750 |
| Ory of injection capacity | cc | 300 | 400 |
| Operate table size | mm | 600*550 | 600*650 |
| Min. Mold Thickness | mm | 120-220 | 130 |
| Distance of Thermo- plate | mm | 400~500 | 470~600 |
| Die sinking type | mm | 300 | 350 |
| Screw diameter | mm | 45 | 50 |
| Screw speed | r/p | 0-120 | 0-120 |
| Max. Operating Pressure | Mpa | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) |
| Gross weight | Ton | 6.3 | 7.6 |
| Dimension | mm | L2500*W1665*H3400 | L1800*W2700*H3600 |
|
|
|
Shipping and packing
Company information
Guangzhou JuChuan Machinery Co.,Ltd was established in 1997. We are mainly specializing in producing silicone/rubber injection molding machines, Vacuum compression molding machines, plate vulcanizing machine, “all-in-out” ,liquid silicone injection machine, ”first in first out” ,”first in last out”, vertical and horizontal silicone/rubber injection machine for 20 years.
We have a special company patent: Anti-collision Molding System prevent mold damage occurring form misalignment.
Trade show:
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
