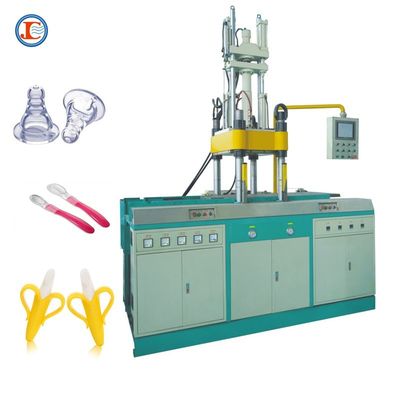

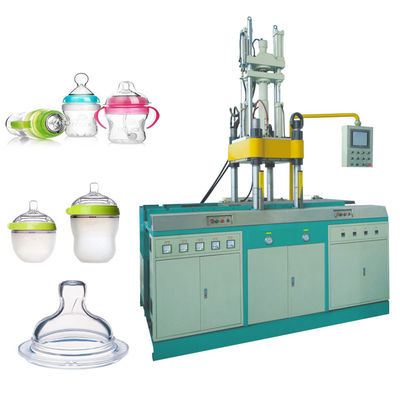

Energy Saving Silicone Baby Teether Making Machine / Silicone Chocolate Bar Mold
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUCHUAN |
| Certification: | CE ISO9001:2015 |
| Model Number: | JC-LV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $20000-45,000.00/sets >=1 sets |
| Packaging Details: | Fixed with hard straps. |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Plasticizing Capacity(g/s): | 100 | Mold Height(mm): | 100 - 250 Mm |
| Ejector Number: | 3 | Ejector Stroke(mm): | 200 Mm |
| Ejector Force(kN): | 1000 KN | Theoretical Shot Volume(cm³): | 180 Cm³ |
| Injection Rate (g/s): | 100 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 100 G | Screw Speed (rpm): | 100 - 200 |
| Screw Diameter (mm): | 35 Mm | Screw L/D Ratio: | 20 |
| Distance Between Tie Bars: | 400 | Weight (KG): | 8000 |
| Type: | LSR Injection Molding Machine | Open Stroke(mm): | 200 Mm |
| Power (kW): | 40 KW | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Automatic: | Yes |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support | Injection Rate: | 30g/s |
| Opening Stroke: | 300~350mm | Injection Weight: | 300~500cc |
| Biggest Injection Rate: | 180~210cc/s | Injection Pressure(kfg/cm2): | 750 |
| Injection Volume(cc): | 300~500 | Screw Diameter(mm): | 45,50,55 |
| Motor Capacity(kw): | 11~20 | Gross Weight(Ton): | 6.3~11 |
| After Warranty Service: | Video Technical Support, Online Support | Clamping Force (kN): | 2000 KN |
| Port: | Guangzhou | ||
| High Light: | Silicone Chocolate Bar Mold Machine,Silicone Baby Teether Making Machine,Silicone LSR Injection Molding Machine |
||
Product Description
Energy-Saving Silicone Baby Teether Making Machine/Silicone Chocolate Bar Mold

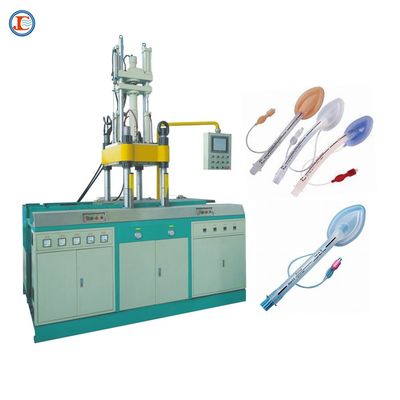

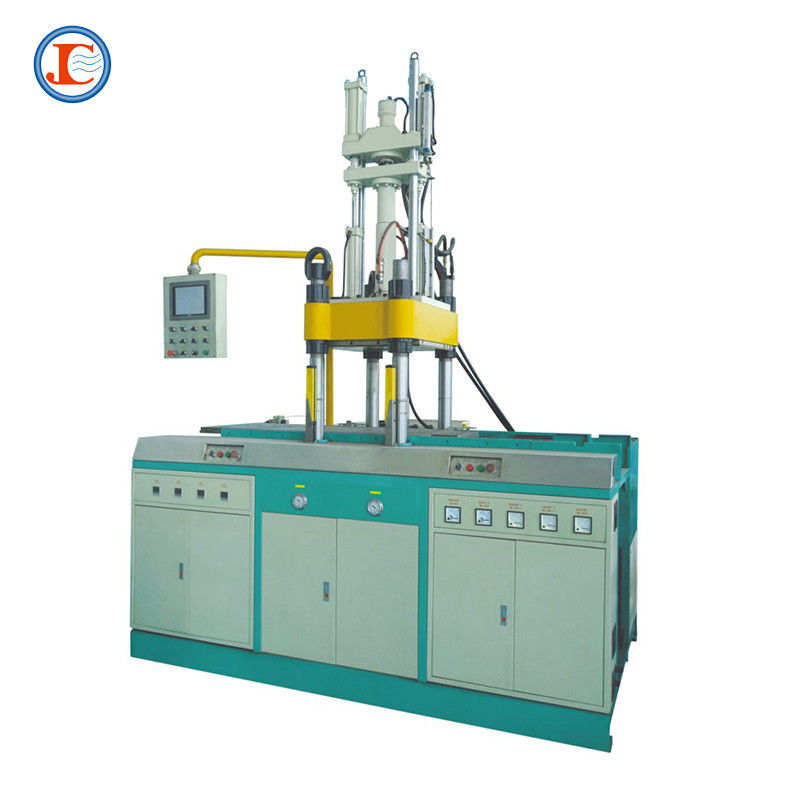

LV Series Liquid Silicone Injection Molding Machine
Features
1. Reciprocal vertical Liquid molding(LIM)system coupling Independent Intellectual Property Rights.
2. Ingenious Injection cylinder mechanism for material loading/unloading and extend machines working life/durability.
3.Unique pneumatic injection shut-off/sealing nozzle mech anism.
4.Highly accurate vertical dispensing system is up to 0.15% accuracy.
5. Three working station with double plate design for better efficiency.
6. Suitable for electric insulator parts, all kinds of LSR container, oil seal, automotive parts and so on.
| Model | Unit | 100VI-IO | 200VI-IO | 300VI-IO |
| Clamping Force | Ton | 100 | 200 | 300 |
| Injection Capacity | cc | 180 | 180 | 210 |
| Injection pressure | kgf/cm² | 750 | 750 | 750 |
| Ory of injection capacity | cc | 300 | 400 | 500 |
| Operate table size | mm | 600*550 | 600*650 | 700*700 |
| Min. Mold Thickness | mm | 120-220 | 130 | 160 |
| Distance of Thermo- plate | mm | 400~500 | 470~600 | 500~600 |
| Die sinking type | mm | 300 | 350 | 350 |
| Screw diameter | mm | 45 | 50 | 55 |
| Screw speed | r/p | 0-120 | 0-120 | 0-120 |
| Max. Operating Pressure | Mpa | 20 | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) | 20(15kw) |
| Gross weight | Ton | 6.3 | 7.6 | 11 |
| Dimension | mm | L2500*W1665*H3400 | L1800*W2700*H3600 | L1900*W2800*H3800 |
