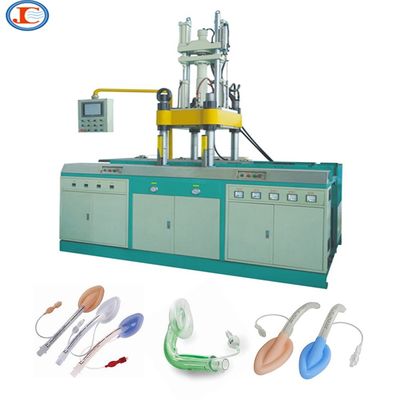

Machine For Making Medical Catheter/Foley Catheter Machines Production Line
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JuChuan |
| Certification: | CE ISO9001:2015 |
| Model Number: | JC-LV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $38,850.00 - $48,850.00/sets |
| Packaging Details: | shrink film packing |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Clamping Force: | 100~300Ton | Type: | LSR Injection Molding Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Power: | 11~20Kw |
| Injection Rate: | 30g/s | Automatic: | Yes |
| Opening Stroke: | 300~350mm | Injection Weight: | 300~500cc |
| Biggest Injection Rate: | 180~210cc/s | Injection Pressure(kfg/cm2): | 750 |
| Injection Volume(cc): | 300~500 | Screw Diameter(mm): | 45,50,55 |
| Motor Capacity(kw): | 11~20 | Gross Weight(Ton): | 6.3~11 |
| Model: | JC-LV | Port: | Guangzhou |
Product Description
Machine For Making Medical Catheter/Foley Catheter Machines Production Line

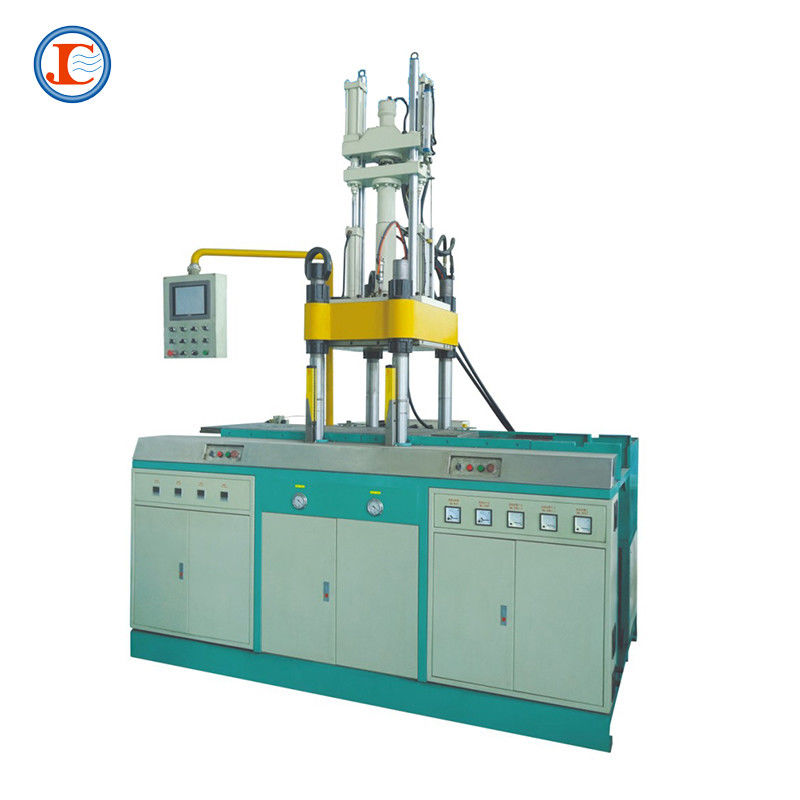

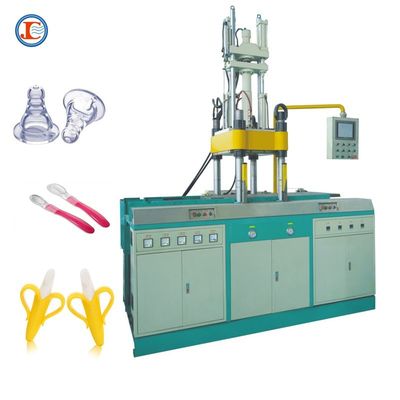

LV Series Liquid Silicone Injection Molding Machine
Features
1. Reciprocal vertical Liquid molding(LIM)system coupling Independent Intellectual Property Rights.
2. Ingenious Injection cylinder mechanism for material loading/unloading and extend machines working life/durability.
3.Unique pneumatic injection shut-off/sealing nozzle mech anism.
4.Highly accurate vertical dispensing system is up to 0.15% accuracy.
5. Three working station with double plate design for better efficiency.
6. Suitable for electric insulator parts, all kinds of LSR container, oil seal, automotive parts and so on.
| Model | Unit | 100VI-IO | 200VI-IO | 300VI-IO |
| Clamping Force | Ton | 100 | 200 | 300 |
| Injection Capacity | cc | 180 | 180 | 210 |
| Injection pressure | kgf/cm² | 750 | 750 | 750 |
| Ory of injection capacity | cc | 300 | 400 | 500 |
| Operate table size | mm | 600*550 | 600*650 | 700*700 |
| Min. Mold Thickness | mm | 120-220 | 130 | 160 |
| Distance of Thermo- plate | mm | 400~500 | 470~600 | 500~600 |
| Die sinking type | mm | 300 | 350 | 350 |
| Screw diameter | mm | 45 | 50 | 55 |
| Screw speed | r/p | 0-120 | 0-120 | 0-120 |
| Max. Operating Pressure | Mpa | 20 | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) | 20(15kw) |
| Gross weight | Ton | 6.3 | 7.6 | 11 |
| Dimension | mm | L2500*W1665*H3400 | L1800*W2700*H3600 | L1900*W2800*H3800 |
