LIM System Silicone Nipple Production Line LSR Molding Machine Leading Manufacturer in China
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JuChuan |
| Certification: | CE ISO9001 |
Payment & Shipping Terms:
| Price: | $43,000.00 - $58,000.00/sets |
|---|---|
| Packaging Details: | shrink film packing |
| Supply Ability: | 1000 Set/Sets per Month LSR machine |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Clamping Force: | 100~300Ton | Type: | LSR Injection Molding Machine |
| Automatic: | Yes | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Plastic Type: | Other | Injection Weight: | 300~500cc |
| Injection Rate: | 30g/s | Opening Stroke: | 300~350mm |
| Power: | 11~20Kw | Biggest Injection Rate: | 180~210cc/s |
| Injection Pressure(kfg/cm2): | 750 Kfg/cm2 | Injection Volume(cc): | 300~500 |
| Screw Diameter(mm): | 45,50,55 | Motor Capacity(kw): | 11~20 |
| Gross Weight(Ton): | 6.3~11 | Model: | JC-LV |
| Port: | Guangzhou | Clamp Force: | 50-1000 |
| Injection Volume: | 500-4000 | Platen Size: | 300-700 |
| Plunger Stroke: | 300-500 | Mold Opening Type: | 2RT3RT4RT |
| Gross Weight: | 5.5-10ton | Injection Pressure: | 1800 |
| Opening Mold: | 2RT3RT4RT | ||
| High Light: | silicone nipple production line 15hp,LIM System LSR Molding Equipment,LSR Molding Equipment 15hp |
||
Product Description

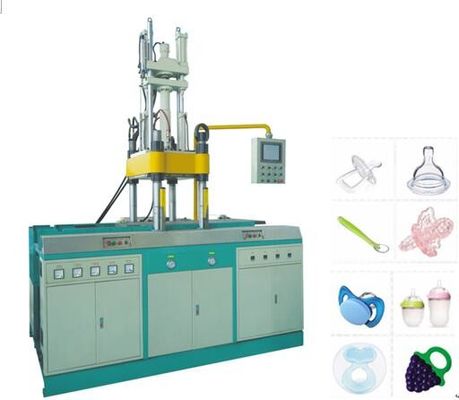

silicone nipple production line LSR liquid silicone molding injection machine
LV Series Liquid Silicone Injection Molding Machine
Features:
- Reciprocal vertical Liquid Molding (LIM) system with Independent Intellectual Property Rights.
- Ingenious Injection cylinder mechanism for material loading/unloading, extending machine's working life and durability.
- Unique pneumatic injection shut-off/sealing nozzle mechanism.
- Highly accurate vertical dispensing system, achieving up to 0.15% accuracy.
- Three working stations with double plate design for improved efficiency.
- Suitable for electric insulator parts, various LSR containers, oil seals, automotive parts, and more.
| Model | Unit | 100VI-IO | 200VI-IO |
| Clamping Force | Ton | 100 | 200 |
| Injection Capacity | cc | 180 | 180 |
| Injection pressure | kgf/cm² | 750 | 750 |
| Ory of injection capacity | cc | 300 | 400 |
| Operate table size | mm | 600*550 | 600*650 |
| Min. Mold Thickness | mm | 120-220 | 130 |
| Distance of Thermo- plate | mm | 400~500 | 470~600 |
| Die sinking type | mm | 300 | 350 |
| Screw diameter | mm | 45 | 50 |
| Screw speed | r/p | 0-120 | 0-120 |
| Max. Operating Pressure | Mpa | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) |
| Gross weight | Ton | 6.3 | 7.6 |
| Dimension | mm | L2500*W1665*H3400 | L1800*W2700*H3600 |
|
|
|
Shipping and packing
Company information
Guangzhou JuChuan Machinery Co., Ltd. was founded in 1997 and has since become a leading manufacturer of silicone/rubber injection molding machines, Vacuum compression molding machines, and plate vulcanizing machines. Over the past 20 years, we have specialized in producing various types of injection machines, including the innovative "all-in-out", liquid silicone injection machine, "first in first out" (FIFO), and "first in last out" (FILO), as well as both vertical and horizontal silicone/rubber injection machines.
One of our significant achievements is the development of a special company patent known as the Anti-collision Molding System. This patented system is designed to prevent mold damage resulting from misalignment, ensuring smooth and reliable operation during the molding process. At Guangzhou JuChuan Machinery Co., Ltd., we are committed to continuous innovation and providing high-quality, reliable machines for various industries.
Trade show:
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
