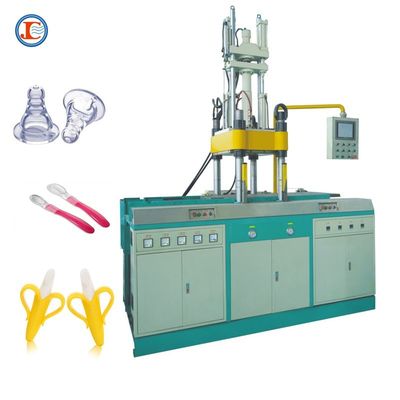

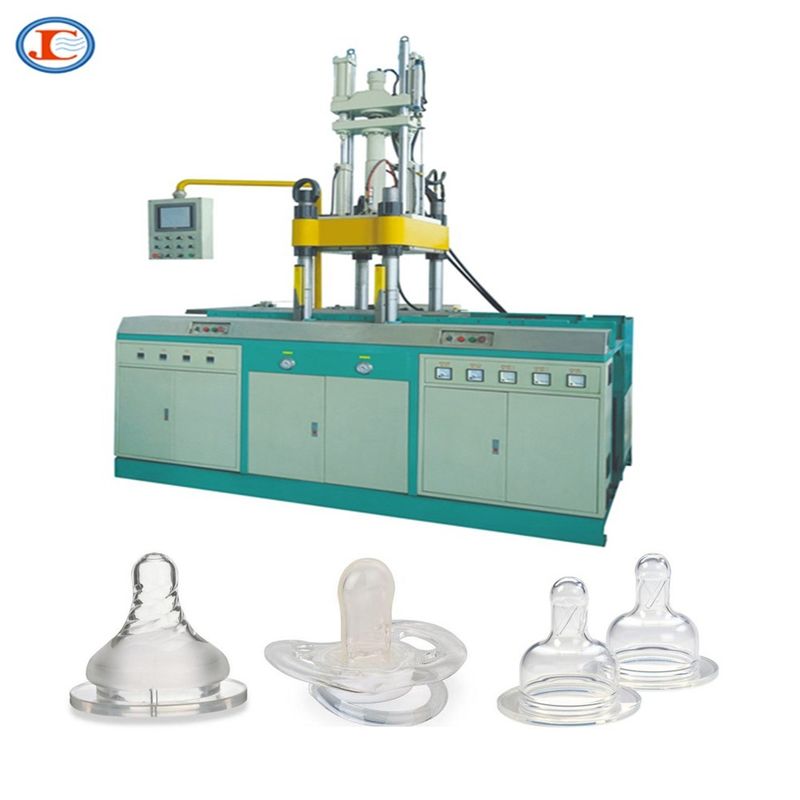

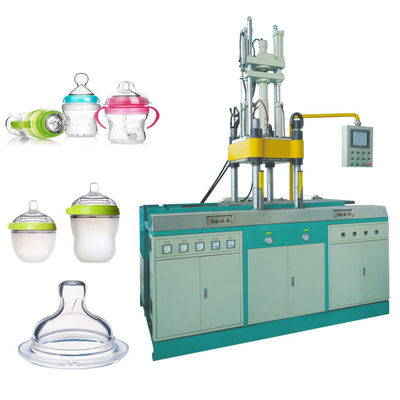

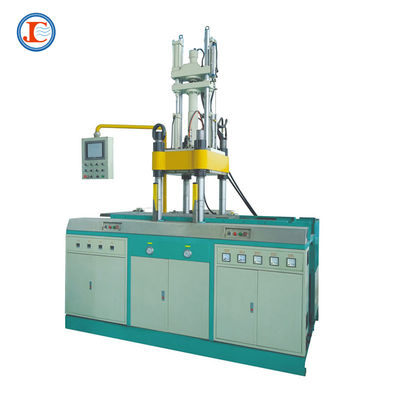

High Efficiency Energy Saving LSR Injection Molding Machine
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001:2015 |
| Model Number: | JC-LV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $20000-$45,000.00/sets >=1 sets |
| Packaging Details: | Fixed with hard straps. |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Unit/Units per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Ejector Stroke(mm): | 400 Mm | Ejector Force(kN): | 1000 KN |
| Theoretical Shot Volume(cm³): | 1000 Cm³ | Injection Rate (g/s): | 100 G/s |
| Machine Type: | Hydraulic | Injection Weight (g): | 100 G |
| Screw Diameter (mm): | 30 Mm | Weight (KG): | 8000 |
| Type: | Injection Molding Machine | Open Stroke(mm): | 400 Mm |
| Power (kW): | 40 KW | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | None | Plastic Type: | Thermoplastic |
| Automatic: | Yes | After-sales Service Provided: | Video Technical Support, Online Support, Engineers Available To Service Machinery Overseas |
| After Warranty Service: | Video Technical Support, Online Support | Clamping Force (kN): | 1000 KN |
| Injection Rate: | 30g/s | Opening Stroke: | 300~350mm |
| Injection Weight: | 300~500cc | Biggest Injection Rate: | 180~210cc/s |
| Injection Pressure(kfg/cm2): | 750 | Injection Volume(cc): | 300~500 |
| Screw Diameter(mm): | 45,50,55 | Motor Capacity(kw): | 11~20 |
| Port: | Guangzhou | ||
| High Light: | LSR Injection Molding Machine 40kW,Thermoplastic LSR Injection Molding Machine,1000kN Lsr Molding Equipment |
||
Product Description
High Efficiency Energy-Saving LSR Injection Molding Machine
LV Series Liquid Silicone Injection Molding Machine
Features
1. Reciprocal vertical Liquid molding(LIM)system coupling Independent Intellectual Property Rights.
2. Ingenious Injection cylinder mechanism for material loading/unloading and extend machines working life/durability.
3.Unique pneumatic injection shut-off/sealing nozzle mech anism.
4.Highly accurate vertical dispensing system is up to 0.15% accuracy.
5. Three working station with double plate design for better efficiency.
6. Suitable for electric insulator parts, all kinds of LSR container, oil seal, automotive parts and so on.
| Model | Unit | 100VI-IO | 200VI-IO | 300VI-IO |
| Clamping Force | Ton | 100 | 200 | 300 |
| Injection Capacity | cc | 180 | 180 | 210 |
| Injection pressure | kgf/cm² | 750 | 750 | 750 |
| Ory of injection capacity | cc | 300 | 400 | 500 |
| Operate table size | mm | 600*550 | 600*650 | 700*700 |
| Min. Mold Thickness | mm | 120-220 | 130 | 160 |
| Distance of Thermo-plate | mm | 400~500 | 470~600 | 500~600 |
| Die sinking type | mm | 300 | 350 | 350 |
| Screw diameter | mm | 45 | 50 | 55 |
| Screw speed | r/p | 0-120 | 0-120 | 0-120 |
| Max. Operating Pressure | Mpa | 20 | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) | 20(15kw) |
| Gross weight | Ton | 6.3 | 7.6 | 11 |
| Dimension | mm | L2500*W1665*H3400 | L1800*W2700*H3600 | L1900*W2800*H3800 |
