100-1000T High Precision Liquid Silicone Injection Molding Machine For Watch Strap
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JuChuan |
| Certification: | CE ISO9001:2015 |
| Model Number: | JC-LV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $20,000.00 - $40,000.00/sets |
| Packaging Details: | Fixed with hard straps |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 100 Unit/Units per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Injection Rate (g/s): | 100 | Machine Type: | Hydraulic |
| Injection Weight (g): | 200 | Screw Diameter (mm): | 40 |
| Distance Between Tie Bars: | TBD | Weight (KG): | 7600 |
| Type: | Injection Molding Machine | Power (kW): | 15 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Manufacturing Plant | Plastic Type: | Thermoplastic |
| Automatic: | Yes | After-sales Service Provided: | Video Technical Support, Online Support, Engineers Available To Service Machinery Overseas |
| Opening Stroke: | 300~350mm | Clamping Force (kN): | 200 |
| Biggest Injection Rate: | 180~210cc/s | Injection Pressure(kfg/cm2): | 750 |
| Injection Volume(cc): | 300~500 | Screw Diameter(mm): | 45,50,55 |
| Motor Capacity(kw): | 11~20 | Gross Weight(Ton): | 6.3~11 |
| Model: | JC-LV | Port: | Guangzhou |
| High Light: | 1000T Silicone Injection Molding Machine,Watch Strap Injection Molding Machine,LSR Injection Molding Machine 15kw |
||
Product Description
100-1000T High Precision Liquid Silicone Injection Molding Machine For Watch Strap

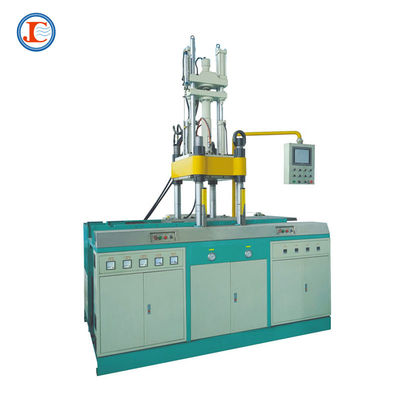

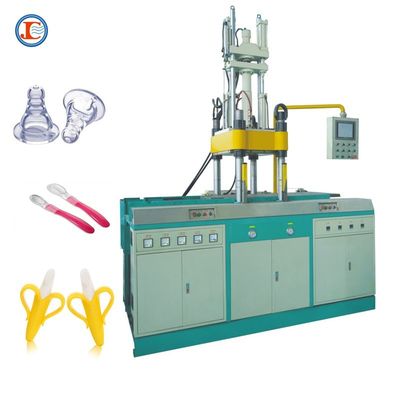

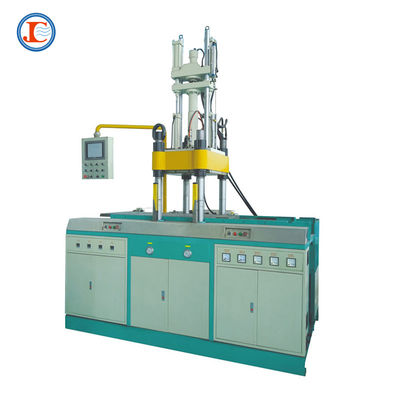

LV Series Liquid Silicone Injection Molding Machine
Features
1. Reciprocal vertical Liquid molding(LIM)system coupling Independent Intellectual Property Rights.
2. Ingenious Injection cylinder mechanism for material loading/unloading and extend machines working life/durability.
3.Unique pneumatic injection shut-off/sealing nozzle mech anism.
4.Highly accurate vertical dispensing system is up to 0.15% accuracy.
5. Three working station with double plate design for better efficiency.
6. Suitable for electric insulator parts, all kinds of LSR container, oil seal, automotive parts and so on.
| Model | Unit | 100VI-IO | 200VI-IO | 300VI-IO |
| Clamping Force | Ton | 100 | 200 | 300 |
| Injection Capacity | cc | 180 | 180 | 210 |
| Injection pressure | kgf/cm² | 750 | 750 | 750 |
| Ory of injection capacity | cc | 300 | 400 | 500 |
| Operate table size | mm | 600*550 | 600*650 | 700*700 |
| Min. Mold Thickness | mm | 120-220 | 130 | 160 |
| Distance of Thermo-plate | mm | 400~500 | 470~600 | 500~600 |
| Die sinking type | mm | 300 | 350 | 350 |
| Screw diameter | mm | 45 | 50 | 55 |
| Screw speed | r/p | 0-120 | 0-120 | 0-120 |
| Max. Operating Pressure | Mpa | 20 | 20 | 20 |
| Motor Power | hp | 15(11kw) | 15(11kw) | 20(15kw) |
| Gross weight | Ton | 6.3 | 7.6 | 11 |
| Dimension | mm | L2500*W1665*H3400 | L1800*W2700*H3600 | L1900*W2800*H3800 |
