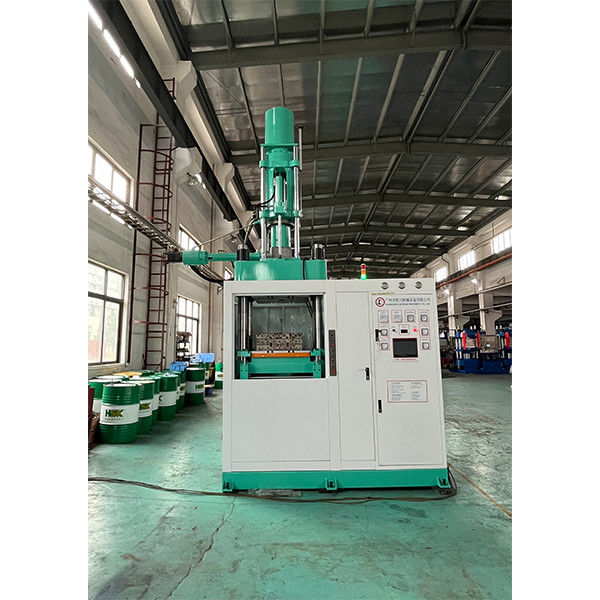

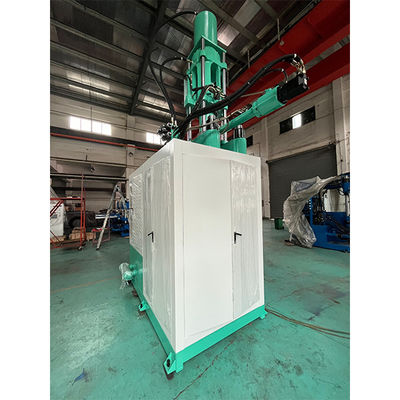

Full Automatic Energy-Saving Silicone Injection Molding Machine For Making The Golf Tee
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JuChuan |
| Certification: | CE ISO9001:2015 |
| Model Number: | VI-FL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $20,000.00 - $40,000.00/sets |
| Packaging Details: | Guaranteed transportation |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Plastic Processed: | Silicone | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Injection Rate (g/s): | 100 |
| Machine Type: | Hydraulic | Injection Weight (g): | 200 |
| Screw Diameter (mm): | 30 | Distance Between Tie Bars: | Tbd |
| Weight (KG): | 6000 | Type: | Injection Molding Machine |
| Power (kW): | 15 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Manufacturing Plant |
| Plastic Type: | Thermoplastic | Automatic: | Yes |
| After-sales Service Provided: | Video Technical Support, Online Support, Engineers Available To Service Machinery Overseas | Opening Stroke: | According To Model |
| Clamping Force (kN): | 200 | Clamp Force(Ton): | 50~600 |
| Injection Volume(cc): | 500~6000 | Injection Pressure(kgf/xm2): | 2000 |
| Platen Size(mm): | 300*300~850*850 | Plunge Stroke(mm): | 300~500 |
| Heater Capacity(kw): | 8.4~29.75 | Gross Weight(Ton): | 5~14.2 |
| Port: | Guangzhou | ||
| High Light: | Synthetic Rubber Injection Machine 20Mpa,Synthetic Rubber Injection automatic rubber moulding machine,automatic rubber moulding machine 20Mpa |
||
Product Description
Full Automatic Energy-Saving Silicone Injection Molding Machine For Making The Golf Tee

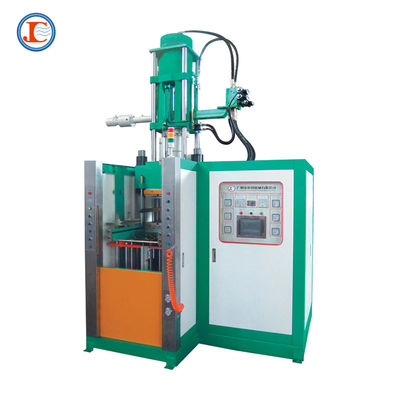

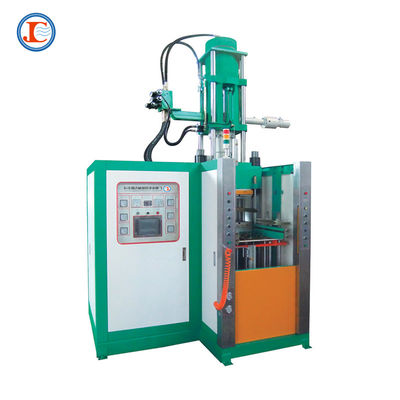

VI-FL Series Vertical Silicone/Synthetic Rubber Injeciton Machine
Feature:
• Adjustable curing & extrusion speed with multiple injection capability
• Three different pressure & speed for opening/closing mold
• Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)
• Suitable for all type of general rubber parts
| Model | Unit | 50VI-FL | 100VI-FL | 200VI-FL | 300VI-FL | 400VI-FL | 600VI-FL |
| Clamping Force | Ton | 50 | 100 | 200 | 300 | 400 | 600 |
| Injection Capacity | cc | 500 | 1000 | 2000 | 3000 | 4000 | 6000 |
| Injection pressure | kgf/cm² | 200 | 200 | 200 | 200 | 200 | 200 |
| Operate table size | mm | 300*300 | 400*400 | 550*560 | 700*700 | 700*700 | 850*850 |
| Min. Mold Thickness | mm | 50 | 50 | 100 | 100 | 100 | 100 |
| Plunger stroke | mm | 300 | 350 | 400 | 400 | 400 | 500 |
| Distance of Thermo-plate | mm | 350~450 | 400~500 | 500~600 | 500~600 | 500~600 | 600~700 |
| Distance of Tie bar | mm | 400*140 | 515*230 | 640*310 | 820*395 | 820*395 | 970*500 |
| Die sinking type | 2RT-3RT-4RT-Upper ejector-Bottom ejector | ||||||
| Max. Operating Pressure | Mpa | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 7.5(5.5kw) | 10(7.5kw) | 15(11kw) | 15(11kw) | 15(11kw) | 20(15kw) |
| Heater Power | Kw | 8.4 | 10 | 15.3 | 24 | 24 | 29.75 |
| Total Power | Kw | 16.9 | 20.5 | 30.3 | 39 | 39 | 48.75 |
| Gross weight | Ton | 5 | 6.4 | 7.8 | 9.6 | 10 | 14.2 |
| Dimension(L*W*H) | mm |
2000*1500 *2800 |
2400*1650 *3200 |
2600*2000 *4000 |
2750*2265 *4200 |
2750*2265 *4200 |
3200*2500 *4350 |
