100-1000T Energy-Saving Rubber Injection Molding Machine for making auto parts
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JuChuan |
| Certification: | CE ISO9001:2015 |
| Model Number: | JC-VI-FO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $35,000.00-$38000/sets >=1 sets |
| Packaging Details: | Fixed with hard straps. |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Plastic Processed: | Rubber Silicone | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Ejector Stroke(mm): | 400 Mm |
| Ejector Force(kN): | 1000 KN | Theoretical Shot Volume(cm³): | 2000 Cm³ |
| Injection Rate (g/s): | 100 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 100 G | Screw Diameter (mm): | 35 Mm |
| Weight (KG): | 8000 | Type: | Other |
| Open Stroke(mm): | 400 Mm | Power (kW): | 40 KW |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Automatic: | Yes | After-sales Service Provided: | Video Technical Support, Online Support, Engineers Available To Service Machinery Overseas |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | Russia, South Africa |
| Clamping Force (kN): | 2000 KN | Plastic Type: | Other |
| Injection Rate: | Adjustable | Injection Weight: | 1000~6000cc |
| Injection Pressure(kgf/xm2): | 1800 | Plunger Stroke(mm): | 350~500 |
| Port: | Guangzhou | ||
Product Description
100-1000T Energy-Saving Rubber Injection Molding Machine
for making auto parts

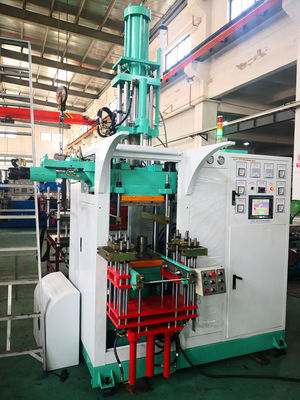

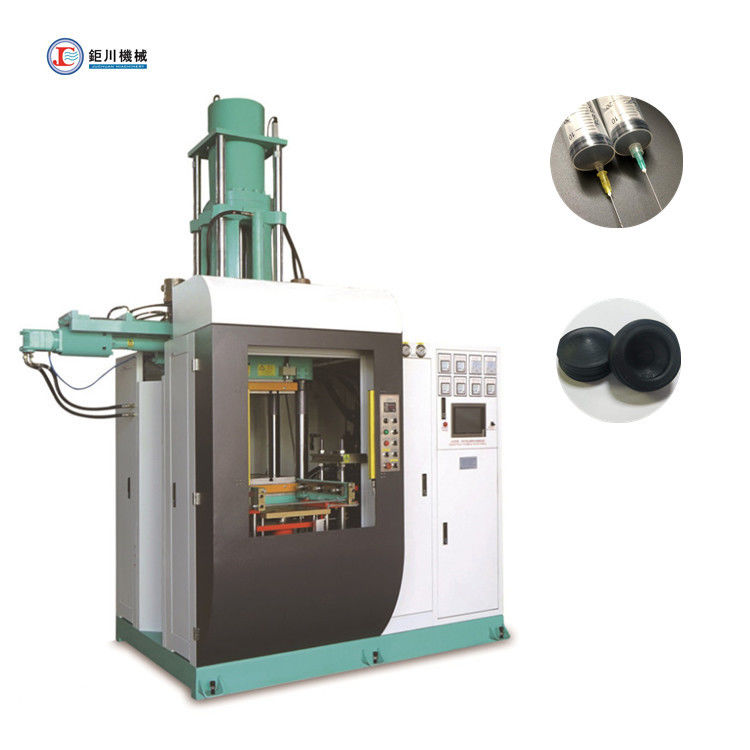

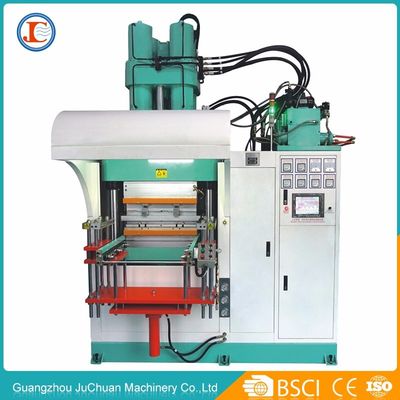

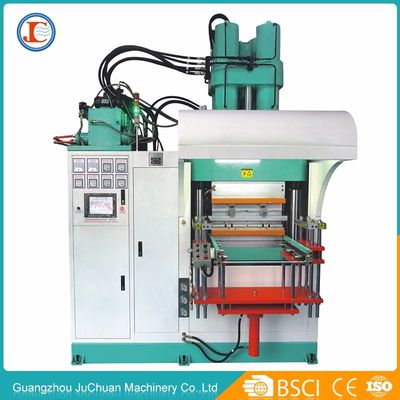

VI-FO Series Vertical Synthetic Rubber Injection Machine
Machine Feature
1. Accurate & consistent hydraulic pressure system. Good aligning of extruder barrel & plunger, lesser friction, preventing material verflow, accurate material measurement and stable injection process.
2.Easier maintenance than conventional machine due to bigger space in injection area.
3. Anti-collision Molding System prevent mold damage occurring from misalignment (Patented).
4. Four-cylinder straight lock plate clamping mechanism.
5. Good Durability.
| Model | Unit | 100VI-FO | 200VI-FO | 300VI-FO | 400VI-FO | 600VI-FO |
| Clamping Force | Ton | 100 | 200 | 300 | 400 | 600 |
| Injection Capacity | cc | 1000 | 2000 | 3000 | 4000 | 6000 |
| Injection pressure | kgf/cm² | 1350 | 1350 | 1350 | 1350 | 1500 |
| Operation table size | mm | 400*400 | 550*560 | 700*700 | 700*700 | 850*850 |
| Min. Mold Thickness | mm | 50 | 100 | 100 | 100 | 100 |
| Plunger stroke | mm | 350 | 400 | 400 | 400 | 500 |
| Distance of Thermo- plate | mm | 400~500 | 500~600 | 500~600 | 500~600 | 600~700 |
| Distance of Tie bar | mm | 515*230 | 640*310 | 820*395 | 820*390 | 970*500 |
| Die sinking type | 2RT-3RT-4RT-Upper Ejector-Lower Ejector | |||||
|
Max. Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 10(7.5kw) | 15(11kw) | 15(11kw) | 15(11kw) | 20(15kw) |
| Electric Heating Power | Kw | 10 | 15.3 | 24 | 24 | 29.75 |
| Total Power | Kw | 20.5 | 30.3 | 39 | 39 | 48.75 |
| Gross weight | Ton | 6.5 | 8 | 9.5 | 11 | 14.5 |
| Dimension(L*W*H) | mm | 1600*2100*2800 | 1800*2550*3100 | 2000*2700*3200 | 2000*2700*3200 | 2200*2800*3500 |
Company Information
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Trade Show
Our service
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
