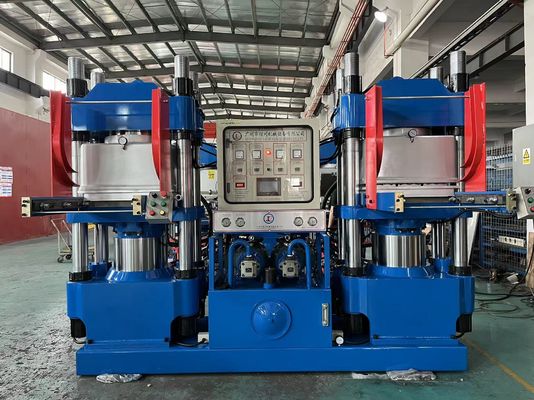

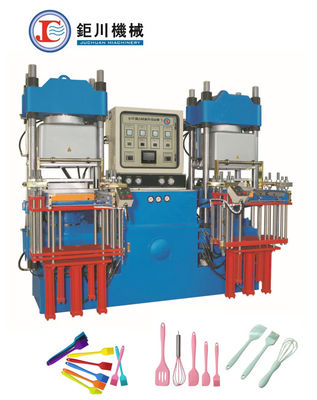

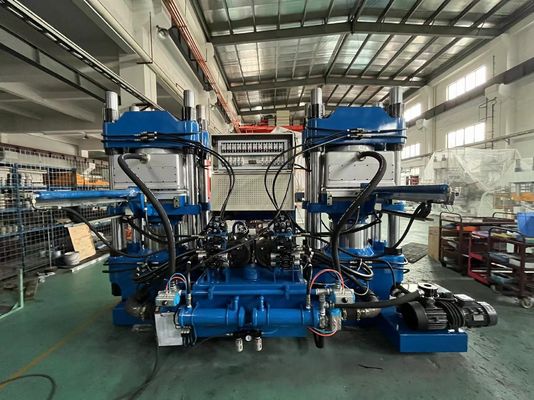

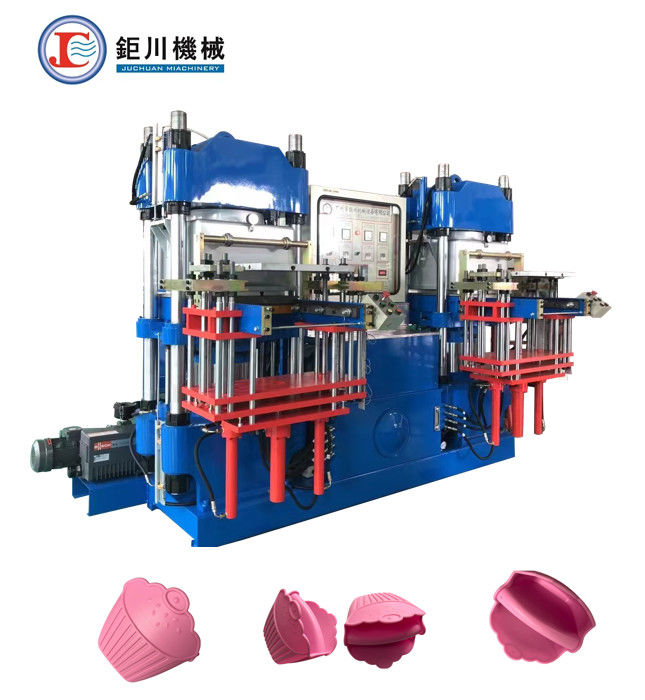

Silicone Rubber Press Machine For Making Kitchen Products Kitchen Utensils
Product Details:
| Place of Origin: | China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001:2015 |
| Model Number: | JC-VF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 25000 - 38000/set |
| Packaging Details: | container |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Sets per Month |
|
Detail Information |
|||
| Clamp Force(Ton): | 100 - 1200 | Platen Size(mm): | 400*460 - 1600*2200 |
|---|---|---|---|
| Plunger Stroke(mm): | 300 | Heating Plates Distance(mm): | 200 - 550 |
| Tie Bar Distance(mm): | 490*230 - 1105*475 | Mold Opening Type: | 2RT-3RT-4RT-Track-Suspension |
| Max. Operating Pressure(MPa): | 20 | Dimension(L*W*H): | 2930*2350*2050mm |
| Weight: | 5000 | Warranty: | 1 Year |
| Power (kW): | 42 | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Manufacturing Plant | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Distance Of Tie Bar(mm): | 785*380 | Upper Platen Size (mm): | 680*680 |
| Lower Platen Size(mm): | 700*800 | Injection Rate: | Adjustable |
Product Description
China High Quality Silicone Rubber Press Machine for making Kitchen products Kitchen Utensils
Specific Characteristic:
- Twin work position design, are required with independent oil circuit, dual oil pump, double motor.
- Vacuum pumping device draws out air in die cavity to avoid trapped gas, short injection, shorten forming period and improve product quality.
- Suitable for rubber parts with complicated structure and difficult exhaust.
- Open the mold design: a new type of patent guide rail. Special design can be 90 degrees open angle, easy to operate.
- Mold handling design: in the mold handling agencies to join a special design. It is durable and quiet. Fast and outdated.
- Hydraulic System Design: The system uses high-pressure pump and low-pressure pump, which can shut down two presses at the same time. The system is less noise, stable performance, and long service life.
- Alignment: provide two different mold calibration speeds: fast and slow, the user can choose to use according to the actual situation. It makes calibration more secure and accurate.
2RT Machine motion flow:
1. Setup the mold (initial status)
2. Supply the material and start the process(close the mold)
3. Load the mold
4. The main ram goes up to the predetermined position ready for entering a state of vacuum
5. Lower the vacuum mask. At the same time, suck out the air until a state of vacuum is reached.
6. The main ram goes up. Increase the pressure to expel bubbles out.
7. After the state of vacuum exist mo more, lift the vacuum hood and curing.
8. After curing, lower the main ram.
9. Unload the mold, open the mold.
10. Take out the final product and put new material in.
Technical parameter:
|
Model |
Unit |
100VF |
200VF |
250VF |
300VF |
|
Clamping Force |
Ton |
100 |
200 |
250 |
300 |
|
Upper Platen Size |
mm |
380*400 |
510*510 |
600*600 |
680*680 |
|
Lower Platen Size |
mm |
400*460 |
550*560 |
650*600 |
700*800 |
|
Plunger stroke |
mm |
200 |
250 |
250 |
300 |
|
Distance of Thermo-plate |
mm |
200 |
250 |
250 |
300 |
|
Distance of Tie bar |
mm |
490*230 |
640*310 |
745*310 |
785*380 |
|
Die sinking type |
2RT-3RT-4RT-Track |
||||
|
Max Operating Pressure |
Mpa |
20 |
20 |
20 |
20 |
|
Motor Power |
hp |
7.5*2 |
10*2 |
10*2 |
10*2 |
|
Electric Heating Power |
Kw |
7.2*2 |
13.5*2 |
15.3*2 |
24*2 |
|
Vacuum Pump Power |
Kw |
3 |
3 |
3*2 |
3*2 |
|
Total Power |
Kw |
28.4 |
45 |
51.6 |
69 |
|
Gross weight |
Ton |
5 |
7.8 |
11 |
15.45 |
|
Dimension |
mm |
L2500*W2150*H2080 |
L2930*W2500*H2350 |
L3190*W2930*H2495 |
L3360*W2970*H2850 |
Application
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Exhibition
Our service
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
