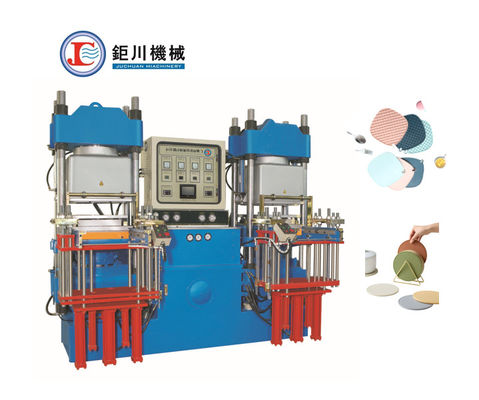

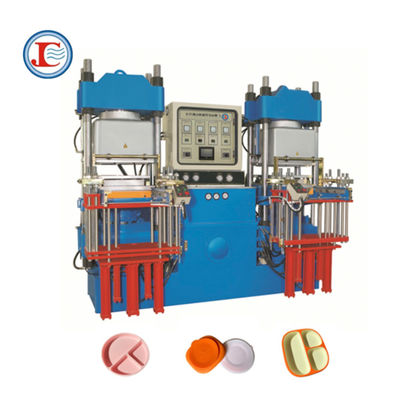

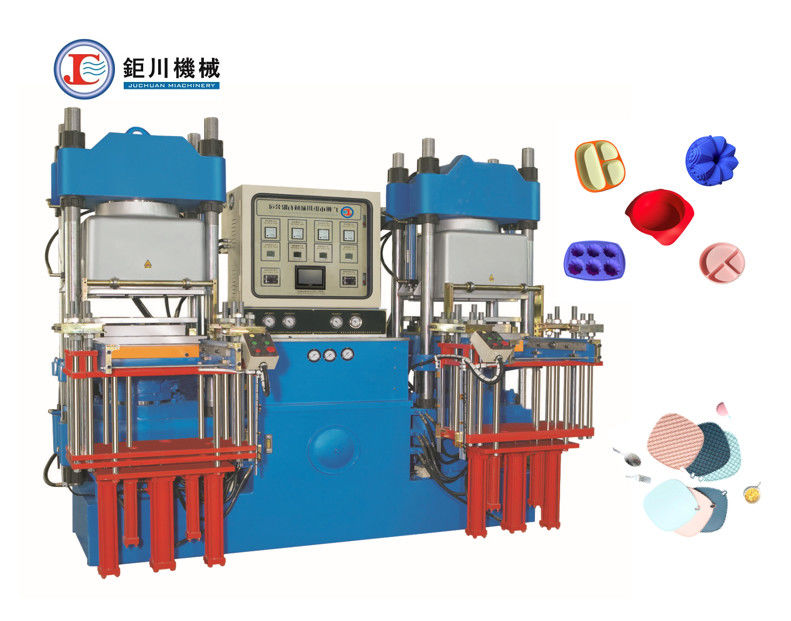

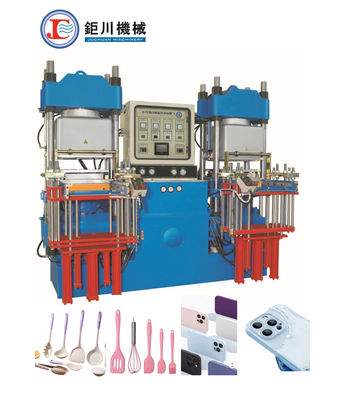

High productive Blue Vacuum Press Silicone Rubber Machine 2 stations for making rubber silicone products
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | JUCHUAN |
| Certification: | SGS CE ISO9001:2015 |
| Model Number: | JC-VF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 35000-37000 set |
| Packaging Details: | Fixed with hard straps |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Sets per Month |
|
Detail Information |
|||
| Color: | Blue Or As Your Choice | Clamp Force: | 100 - 800 |
|---|---|---|---|
| Tie Bar Distance(mm): | 490*230 - 1840*570 | Motor Power(KW): | 5.5 - 11 |
| Total Power(KW): | 28.4 - 104 | Gross Weight(Ton): | 5 - 15.45 |
Product Description
| Clamp Force: | 200 Ton | Upper Plate Size: | 510x510mm |
|---|---|---|---|
| Lower Plate Size: | 550x560mm | Heating Plate Size: | 250mm |
| Plunger Stroke: | 250mm | Tie Bar Distance: | 640*310mm |
| Motor Capacity: | 10HP*2(7.5KW*2) | Heater Capacity: | 13.5KW*2 |
| Vacuum Pump Power: | 3KW | Toatal Power: | 45KW |
| High Light: |
rubber compression machine,rubber compression molding machine |
||
Main Parameters for Other Machines:
| Model | Unit | 200VF | 250VF | 300VF | 400VF | 500VF |
| Clamping Force | Ton | 200 | 250 | 300 | 400 | 500 |
| Upper Platen Size | mm | 510*510 | 600*600 | 680*680 | 800*800 | 950*950 |
| Lower Platen Size | mm | 550*560 | 650*600 | 700*800 | 850*850 | 1000*1000 |
| Plunger stroke | mm | 250 | 250 | 300 | 350 | 350 |
| Distance of Thermo - plate |
mm | 250 | 250 | 300 | 350 | 350 |
| Distance of Tie bar | mm | 640*310 | 745*310 | 785*380 | 940*450 | 1105*475 |
| Die sinking type | 2RT-3RT-4RT-Track | |||||
| Max Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 10*2 | 10*2 | 10*2 | 15*2 | 15 |
| Electric Heating Power |
Kw | 13.5*2 | 15.3*2 | 24*2 | 26.4*2 | 36 |
| Vacuum Pump Power |
Kw | 3 | 3*2 | 3*2 | 3*2 | 4 |
| Total Power | Kw | 45 | 51.6 | 69 | 84.8 | 49 |
| Gross weight | Ton | 7.8 | 11 | 15.45 | 18 | 14.5 |
| Dimension | mm | 2930*2500*2350 | 3190*2930*2495 | 3360*2970*2850 | 3650*3050*2900 | 1460*3600*3150 |
* Guangzhou JuChuan Machinery Co.,Ltd has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our Factory:

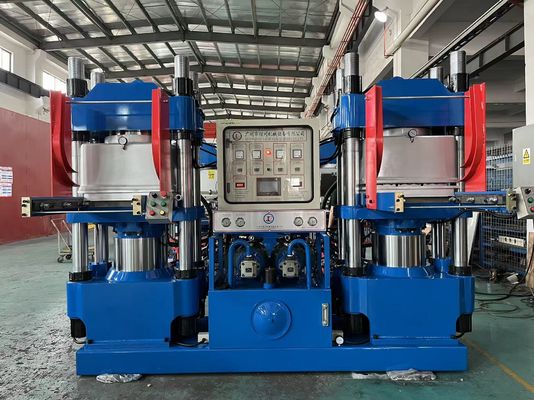

Assembled Machines:
