300 Ton Silicone Push Button Molding Machine Key Press Making Machine
Product Details:
Place of Origin: | Guangdong China |
Brand Name: | JUCHUAN |
Certification: | SGS CE ISO9001:2015 |
Model Number: | JC-HF |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | USD 21800-40000one set |
Packaging Details: | Fixed with hard straps |
Delivery Time: | 50days |
Payment Terms: | L/C, T/T |
Supply Ability: | 100 Set/Sets per Month |
Detail Information |
|||
Clamp Force: | 50-1000 | Plunger Stroke: | 200-350 |
---|---|---|---|
Mold Opening Type: | 2RT3RT4RT | Gross Weight: | 5-28.5 |
Highlight: | 300 Ton Silicone Molding Machine,Silicone Push Button Molding Machine,Silicone Key Press Making Machine |
Product Description

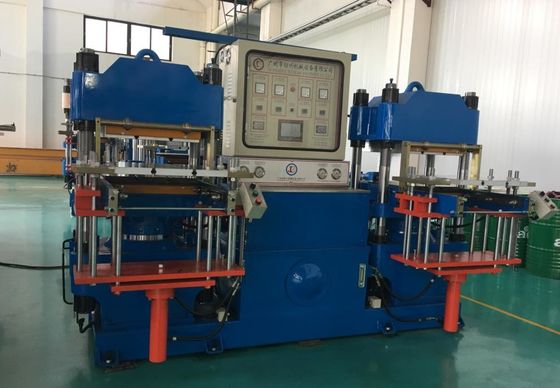

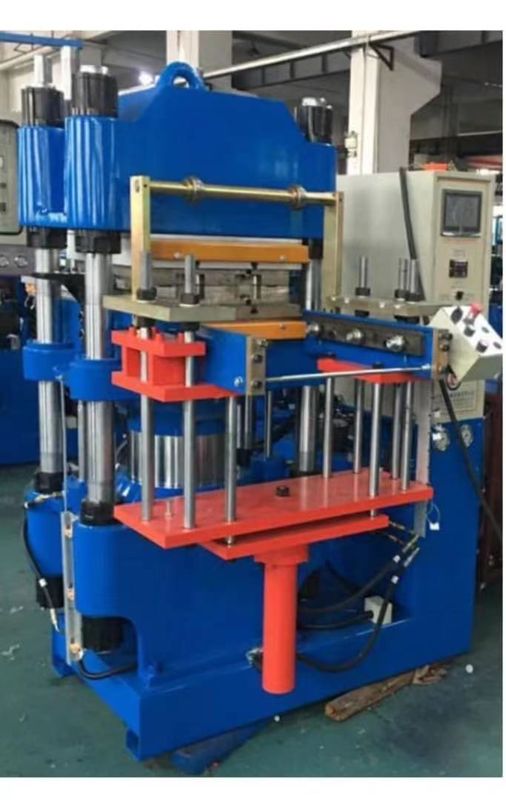

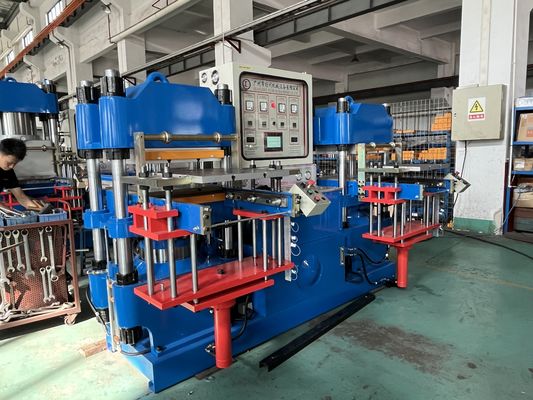

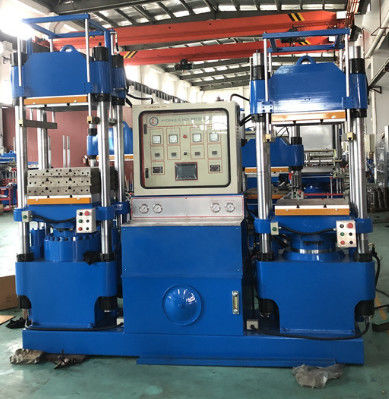

300 ton silicone push button molding machine, key press making machine supplier

Clamp Force: | 300 Ton | Plate Size: | 700mm*800mm |
---|---|---|---|
Plunger Stroke: | 300mm | Heating Plate Distance: | 300-400mm |
Tie Bar Distance: | 785*380mm | Mold Opening Stroke: | 2 RT-3RT-4RT |
Total Capacity: | 63KW | ||
High Light: |
hydraulic vulcanizing machine,rubber vulcanization molding machine |
Specific Characteristic:
- Able to assemble/install separate Ejection mechanism that suitable for bigger size molding part
- Efficient production of rubber part for railway, mining, shipbuilding industries
- Multi-pillar plate vulcanizing machine.
- Anti-collision Molding System prevents mold damage occurring from misalignment (Patented).
- It has various demolding method: 2RT, 3RT, 4RT.
- Accure mold positioning to ensure safety to that mold does not collide.
- Dual power bank design to ensure the twin stations could work independently and safely
2RT Machine motions flow:
- Setup the mold(initial status)
- Supply the materials and start the process(close the mold)
- Load the mold
- The main ran goes up rapidly to a predetermined position,
- The main ram goes up slowly, increase the pressure for molding. Expel bubbles out and curing.
- The main ram goes down rapidly.
- Unload the mold at a determined position.
- Open mold and take out the final products.
Main parameters:
Model | Unit | 200HF | 250HF | 300HF | 400HF | 500HF |
Clamping Force | Ton | 200 | 250 | 300 | 400 | 500 |
Operation table size | mm | 550*560 | 650*600 | 700*800 | 850*850 | 1000*1000 |
Plunger stroke | mm | 250 | 250 | 300 | 300 | 350 |
Distance of Thermo-plate |
mm | 250~350 | 250~350 | 300~400 | 300~400 | 350~450 |
Distance of Tie bar | mm | 640*310 | 745*310 | 785*380 | 940*450 | 1105*475 |
Die sinking type | Track-Suspension-2RT-3RT-4RT | |||||
Max Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 |
Motor Power | hp | 10*2(7.5kw*2) | 10*2(7.5kw*2) | 10*2(7.5kw*2) | 15*2(11kw*2) | 15(11kw) |
Electric Heating Power |
Kw | 13.5*2 | 15.3*2 | 24*2 | 26.4*2 | 36 |
Total Power | Kw | 42 | 45.6 | 63 | 74.8 | 47 |
Gross weight | Ton | 7.8 | 11 | 15 | 17 | 13.5 |
Dimension(L*W*H) | mm |
2930*2350 *2050 |
3190*2780 *2230 |
3360*2970 *2250 |
3660*3050 *2350 |
1460*3600 *2380 |




Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
