China High-accuracy Hydraulic Hot Press Machine for making insulator from JUCHUAN MACHINERY
Product Details:
Place of Origin: | China |
Brand Name: | JUCHUAN |
Certification: | ISO9001:2015 |
Model Number: | JC-HF |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | USD 15000 - 40000/set |
Packaging Details: | container |
Delivery Time: | 45 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 Sets per Month |
Detail Information |
|||
Clamp Force(Ton): | 100 - 1200 | Platen Size(mm): | 400*460 - 1600*2200 |
---|---|---|---|
Plunger Stroke(mm): | 250 - 400 | Max. Operating Pressure(MPa): | 20 |
Motor Power(KW): | 5.5*2 - 18.5 | Heating Power(KW): | 7.2*2 - 126 |
Total Power(KW): | 25.4 - 144.5 | Gross Weight(Ton): | 5 - 28.5 |
Plunger Diameter(mm): | 360 - 500 |
Product Description

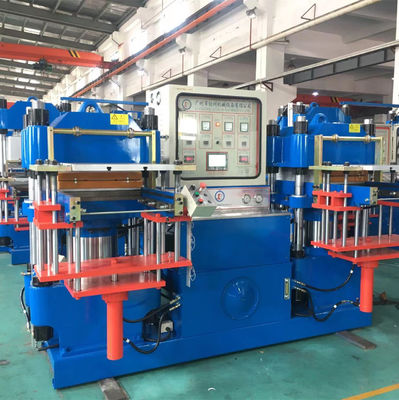

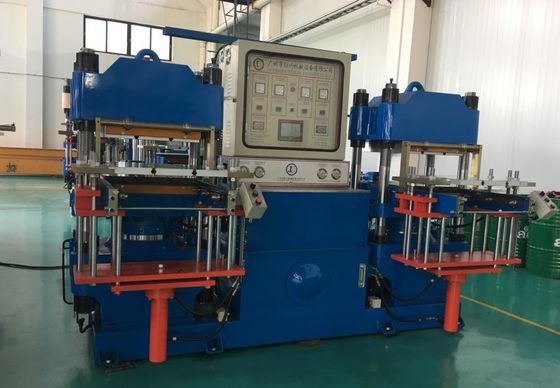

China High-accuracy Hydraulic Hot Press Machine for making insulator
Main Characteristics:
* Adaptable with different demolding methods like 2RT/3RT/4RT.
* Accurate mold-in and mold-out position to ensure no damage to the molding.
* Dual motor design for safe and independent working of the twin station.
1. Adopting exhaust vacuum technology could produce high accurate rubber components.
2. Controlled by PLC, several programs could to be process through automatic control, to check and adjust the heating temperature with automatic, improving control level, labor strength and product efficiency.
3. Large plate vulcanizing press is used to produce textile construction conveyor belt, such as ordinary rubber conveyor belt, nylon conveyor belt, PVG belt, steel wire core conveyor belt etc.
4. The special function of the turn-over board makes the nozzle not die material, easy for cleaning and stable quality.
5. Japanese-made high-tech infrared safety electric eye, automatic warning system and multiple security guards, grasp the status of the machine clearly to ensure safety.
6. The full-scale oil system, low noise and automatically adjust the function of pressure size.
Technical parameter:
Model | 100HF | 200HF | 250HF | 300HF | 350HF | 400HF | 500HF | 1200HF |
Clamp Force(Ton) | 100 | 200 | 250 | 300 | 350 | 400 | 500 | 1200 |
Platen Size (mm) | 400*460 | 550*560 | 650*600 | 700*800 | 750*750 | 850*850 | 1000*1000 | 1600*1200 |
Plunger Diameter (mm) | Φ250 | Φ360 | Φ400 | Φ450 | Φ480 | Φ500 | Φ560 | Customized |
Plunger Stroke (mm) | 200 | 250 | 250 | 300 | 300 | 300 | 350 | 350 |
Heating Plates Distance (mm) | 200 - 300 | 250 - 350 | 250 - 350 | 300 - 400 | 300 - 400 | 300 - 400 | 350 - 450 | 350 - 550 |
Tie Bar Distance (mm) | 490*230 | 650*320 | 745*310 | 785*380 | / | 940*450 | 1105*475 | Six Tie Bars |
Mold Opening Type | 2RT- 3RT - 4RT - Track - Suspension | |||||||
Max. Operating Pressure (MPa) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
Motor Power (KW) | 5.5*2 | 7.5*2 | 7.5*2 | 11*2 | 11*2 | 11 | 11 | 11 |
Heating Power (KW) | 7.2*2 | 13.5*2 | 15.3*2 | 24*2 | 24*2 | 26.4*2 | 36 | 126 |
Total Power (KW) | 25.4 | 42 | 45.6 | 63 | 70 | 74.8 | 47 | 144.5 |
Gross Weight (Ton) | 5 | 7.8 | 11 | 15 | / | 17 | 13.5 | 28.5 |
Machine Size L*W*H (mm) | 2500*2080*1950 | 2930*2350*2050 | 3190*2780*2230 | 3360*2970*2250 | Customized | 3660*3050*2350 | 1460*3600*2380 | 2350*5400*2950 |

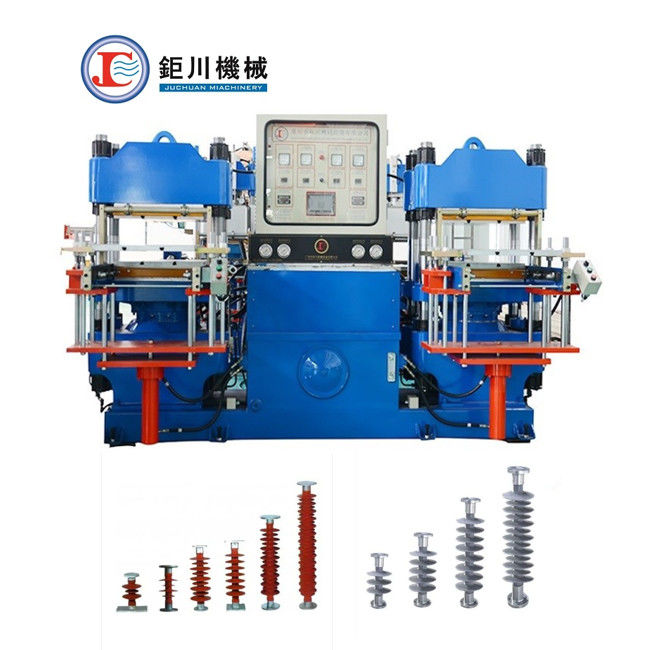

Application Product:
Shipping and packing
Company information
* Guangzhou JuChuan Machinery Co.,Ltd has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products
1. Silicone rubber injection molding machine
2. Vertical hydraulic rubber injection machine
3. Horizontal silicone rubber injection machine
4. Liquid silicone injection molding machine
5. Vacuum compression machine
6. Silicone rubber hot press machine
Exhibition show:
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
