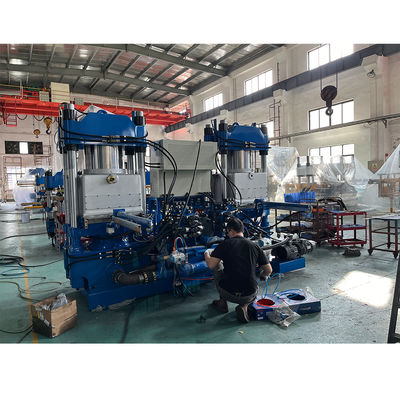

Famous brand PLC 300ton Blue color Rubber Silicone hot press machine for making rubber products auto parts

Famous brand PLC 300ton Blue color Rubber Silicone hot press machine for making rubber products auto parts

Product Details:

Place of Origin: China
Brand Name: Juchuan
Certification: ISO9001:2015
Model Number: JC-300VF

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD 15000-24000/set
Packaging Details: container
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Sets per Month
Get Best Price Contact Now

Detail Information

Clamp Force(Ton): 300 Plunger Stroke(mm): 250
Mold Opening Type: 2RT-3RT-4RT-Track Max. Operating Pressure(MPa): 20
Motor Power(KW): 11*2 Heating Power(KW): 15.3*2
Vacuum Pump Power(KW): 3.2 Total Power(KW): 48.8
Gross Weight(Ton): 11 Color: Blue Or As Your Choice

Product Description



 High quality 300ton Blue color Rubber Silicone hot press machine

for making rubber products auto parts




       1

                         Famous brand PLC 300ton Blue color Rubber Silicone hot press machine for making rubber products auto parts 2

Famous brand PLC 300ton Blue color Rubber Silicone hot press machine for making rubber products auto parts 3



Advanced Vacuum Compression Molding Machine Technology:

  • Special insertion device: can be customized according to customer requirements. It is mainly used to lock the second and third layers without separation when the three-layer mold is opened.
  • There is a separate pressure gauge on the vacuum cover to show the pumping pressure, which is convenient for timely observation of the pumping state.
  • Mainly applicable to: rubber silicone fittings with complex structure and difficult exhaust.



Vacuum plate vulcanizing machine Features:

  1. using dual motor double pump double oil circuit System design, two working positions are independently controlled and operated independently.
  2. the front top opening and closing moldIn the way, the mold is pushed out from the clamping mechanism, and the mold is opened in front of the machine to facilitate the taking of the product;
  3. the use of high vacuum vacuum cover design, the mold can be in a near-complete vacuum environment, improve mold exhaust performance;
  4. The vacuum cover is completed above the vacuum of -650mmHG within 4 seconds. It is not suitable for forming, and the precision finished product is most suitable;
  5. Reduce the vulcanizing time, improve the products qualified rate, improve the working efficiency of the machine.


Vacuum plate vulcanizing machine application:

  • O-ring, pressing, keyboard, roller, medical drug plug, shockproof products, black rubber products, daily necessities, gaskets, conductive products, electronic products, etc.
  • Do not apply to the production of long and large insulator products or other products. When the rubber injection machine is opened, the opening is upward, which is suitable for lifting and removing the product by driving.



Main Technical Parameters:

Model Unit 300VF
Clamping Force Ton 300
Upper Platen Size mm 680*680
Lower Platen Size mm 700*800
Plunger stroke mm 300
Distance of Thermo-plate mm 300
Distance of Tie bar mm 785*380
Die sinking type 2RT-3RT-4RT-Track
Max Operating Pressure Mpa 20
Motor Power hp 10*2(7.5KW*2)
Electric Heating Power Kw 24*2
Vacuum Pump Power Kw 3*2
Total Power Kw 69
Gross weight Ton 15.45
Dimension mm L3360*W2970*H2850



Other Vacuum Compression Machine Parameters:

Model Unit 200VF 250VF 300VF 400VF 500VF
Clamping Force Ton 200 250 300 400 500
Upper Platen Size mm 510*510 600*600 680*680 800*800 950*950
Lower Platen Size mm 550*560 650*600 700*800 850*850 1000*1000
Plunger stroke mm 250 250 300 350 350

Distance of Thermo

- plate

mm 250 250 300 350 350
Distance of Tie bar mm 640*310 745*310 785*380 940*450 1105*475
Die sinking type 2RT-3RT-4RT-Track

Max Operating

Pressure

Mpa 20 20 20 20 20
Motor Power hp 10*2 10*2 10*2 15*2 15

Electric Heating

Power

Kw 13.5*2 15.3*2 24*2 26.4*2 36

Vacuum Pump

Power

Kw 3 3*2 3*2 3*2 4
Total Power Kw 45 51.6 69 84.8 49
Gross weight Ton 7.8 11 15.45 18 14.5
Dimension mm 2930*2500*2350 3190*2930*2495 3360*2970*2850 3650*3050*2900 1460*3600*3150


 what product our machine can make?










Related product:



JC-LV_08 JC--VI-AO_09

JC-LV_10





 Shipping and packing

  2







Company information



Guangzhou JuChuan Machinery Co.,Ltd has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.





Our main products

Silicone rubber injection molding machine

Vertical hydraulic rubber injection machine

Horizontal silicone rubber injection machine

Liquid silicone injection molding machine

Vacuum compression machine

Silicone rubber hot press machine





Famous brand PLC 300ton Blue color Rubber Silicone hot press machine for making rubber products auto parts 9



Famous brand PLC 300ton Blue color Rubber Silicone hot press machine for making rubber products auto parts 10







Exhibition show:

 5





Our service:

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.
