China Factory High Productivity Hydraulic Vulcanizing Hot Press Machine for making Colorful Silicone O-Ring

China Factory High Productivity Hydraulic Vulcanizing Hot Press Machine for making Colorful Silicone O-Ring

Product Details:

Place of Origin: Guangdong China
Brand Name: Juchuan
Certification: ISO9001:2015
Model Number: JC-200HF

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD 21800-40000one set
Packaging Details: container
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set/Month
Get Best Price Contact Now

Detail Information

Clamp Force: 50-1000 Plunger Stroke: 200-350
Mold Opening Type: 2RT3RT4RT Gross Weight: 5-28.5

Product Description

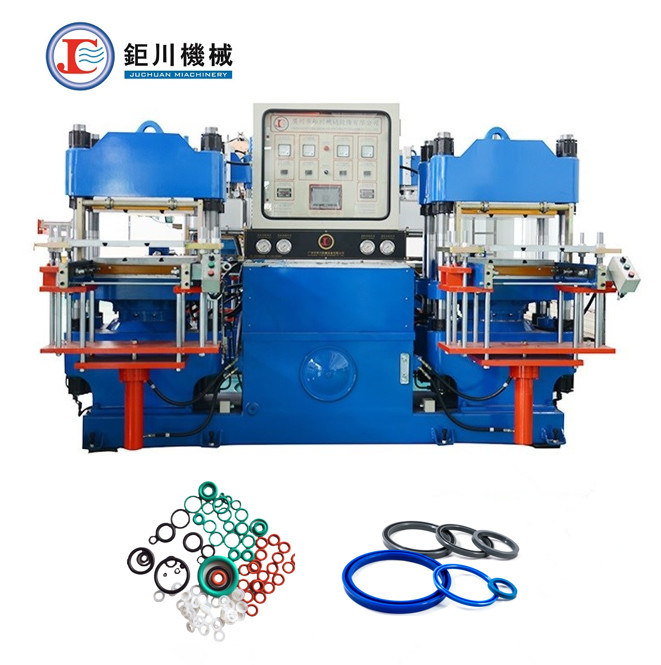

China Factory High Productivity Hydraulic Vulcanizing Hot Press Machine
For making Colorful Silicone O-Ring







China Factory High Productivity Hydraulic Vulcanizing Hot Press Machine for making Colorful Silicone O-Ring 0China Factory High Productivity Hydraulic Vulcanizing Hot Press Machine for making Colorful Silicone O-Ring 1







Specific Characteristic

  1. Twin work position design, are required with independent oil circuit, dual oil pump, double motor.
  2. Vacuum pumping device draws out air in die cavity to avoid trapped gas, short injection, shorten forming period and improve product quality.
  3. Suitable for rubber parts with complicated structure and difficult exhaust.
  4. Open the mold design: a new type of patent guide rail. Special design can be 90 degrees open angle, easy to operate.
  5. Mold handling design: in the mold handling agencies to join a special design. It is durable and quiet. Fast and outdated.
  6. Hydraulic System Design: The system uses high-pressure pump and low-pressure pump, which can shut down two presses at the same time. The system is less noise, stable performance, and long service life.
  7. Alignment: provide two different mold calibration speeds: fast and slow, the user can choose to use according to the actual situation. It makes calibration more secure and accurate.

Technical parameter

Model 100HF 200HF 250HF 300HF 350HF 400HF 500HF 1200HF
Clamp Force(Ton) 100 200 250 300 350 400 500 1200
Platen Size (mm) 400*460 550*560 650*600 700*800 750*750 850*850 1000*1000 1600*1200
Plunger Diameter (mm) Φ250 Φ360 Φ400 Φ450 Φ480 Φ500 Φ560 Customized
Plunger Stroke (mm) 200 250 250 300 300 300 350 350
Heating Plates Distance (mm) 200 - 300 250 - 350 250 - 350 300 - 400 300 - 400 300 - 400 350 - 450 350 - 550
Tie Bar Distance (mm) 490*230 650*320 745*310 785*380 / 940*450 1105*475 Six Tie Bars
Mold Opening Type 2RT- 3RT - 4RT - Track - Suspension
Max. Operating Pressure (MPa) 20 20 20 20 20 20 20 20
Motor Power (KW) 5.5*2 7.5*2 7.5*2 11*2 11*2 11 11 11
Heating Power (KW) 7.2*2 13.5*2 15.3*2 24*2 24*2 26.4*2 36 126
Total Power (KW) 25.4 42 45.6 63 70 74.8 47 144.5
Gross Weight (Ton) 5 7.8 11 15 / 17 13.5 28.5
Machine Size L*W*H (mm) 2500*2080*1950 2930*2350*2050 3190*2780*2230 3360*2970*2250 Customized 3660*3050*2350 1460*3600*2380 2350*5400*2950





Application Products

China Factory High Productivity Hydraulic Vulcanizing Hot Press Machine for making Colorful Silicone O-Ring 2







Our Main Products



Silicone rubber injection molding machine



Vertical hydraulic rubber injection machine



Horizontal silicone rubber injection machine



Liquid silicone injection molding machine



Vacuum compression machine



Silicone rubber hot press machine

China Factory High Productivity Hydraulic Vulcanizing Hot Press Machine for making Colorful Silicone O-Ring 3

China Factory High Productivity Hydraulic Vulcanizing Hot Press Machine for making Colorful Silicone O-Ring 4





Company Information



* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.

China Factory High Productivity Hydraulic Vulcanizing Hot Press Machine for making Colorful Silicone O-Ring 5





China Factory High Productivity Hydraulic Vulcanizing Hot Press Machine for making Colorful Silicone O-Ring 6





Exhibition show

China Factory High Productivity Hydraulic Vulcanizing Hot Press Machine for making Colorful Silicone O-Ring 7



Our service

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.

China Factory High Productivity Hydraulic Vulcanizing Hot Press Machine for making Colorful Silicone O-Ring 8
