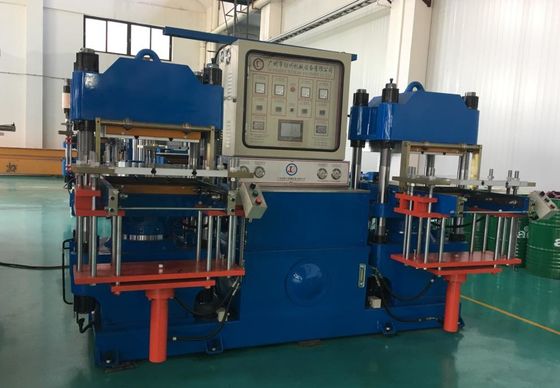

Good price for Blue Hot Press Machine for making rubber silicone products ISO9001:2015 from China
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | Juchuan |
| Certification: | SGS CE ISO9001 |
| Model Number: | JC-VI-HF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 14000 / set |
| Packaging Details: | container |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Control System: | PLC / Motor/ Pump | Heating System: | Electric |
|---|---|---|---|
| Name: | Hydraulic Rubber Molding Machine | Type: | Hydraulic |
| Clamping Force: | 100 - 1200 | Weight (Ton): | 5 -28.5 |
| Mold Opening Type: | 2RT-3RT-4RT-Track-Suspension | Plunger Stroke(mm): | 200 - 350 |
| High Light: | Silicone Rubber Injection Molding Machine Vulcanizing,Vulcanizing Hydraulic Heat Press Machine,SGS Hydraulic Heat Press Machine |
||
Product Description
Good price for Blue Hot Press Machine
for making rubber silicone products ISO9001:2015 from China
| Model | 100HF | 200HF | 250HF | 300HF | 350HF | 400HF | 500HF | 1200HF |
| Clamp Force(Ton) | 100 | 200 | 250 | 300 | 350 | 400 | 500 | 1200 |
| Platen Size (mm) | 400*460 | 550*560 | 650*600 | 700*800 | 750*750 | 850*850 | 1000*1000 | 1600*1200 |
| Plunger Diameter (mm) | Φ250 | Φ360 | Φ400 | Φ450 | Φ480 | Φ500 | Φ560 | Customized |
| Plunger Stroke (mm) | 200 | 250 | 250 | 300 | 300 | 300 | 350 | 350 |
| Heating Plates Distance (mm) | 200 - 300 | 250 - 350 | 250 - 350 | 300 - 400 | 300 - 400 | 300 - 400 | 350 - 450 | 350 - 550 |
| Tie Bar Distance (mm) | 490*230 | 650*320 | 745*310 | 785*380 | / | 940*450 | 1105*475 | Six Tie Bars |
| Mold Opening Type | 2RT- 3RT - 4RT - Track - Suspension | |||||||
| Max. Operating Pressure (MPa) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power (KW) | 5.5*2 | 7.5*2 | 7.5*2 | 11*2 | 11*2 | 11 | 11 | 11 |
| Heating Power (KW) | 7.2*2 | 13.5*2 | 15.3*2 | 24*2 | 24*2 | 26.4*2 | 36 | 126 |
| Total Power (KW) | 25.4 | 42 | 45.6 | 63 | 70 | 74.8 | 47 | 144.5 |
| Gross Weight (Ton) | 5 | 7.8 | 11 | 15 | / | 17 | 13.5 | 28.5 |
| Machine Size L*W*H (mm) |
2500*2080 *1950 |
2930*2350 *2050 |
3190*2780 *2230 |
3360*2970 *2250 |
Customized |
3660*3050 *2350 |
1460*3600 *2380 |
2350*5400 *2950 |
Shipping and packing
* Guangzhou JuChuan Machinery Co.,Ltd has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products
1. Silicone rubber injection molding machine
2. Vertical hydraulic rubber injection machine
3. Horiontal silicone rubber injection machine
4. Liquid silicone injection molding machine
5. Vacuum compression machine
6. Silicone rubber hot press machine
Thailand exhibition show
