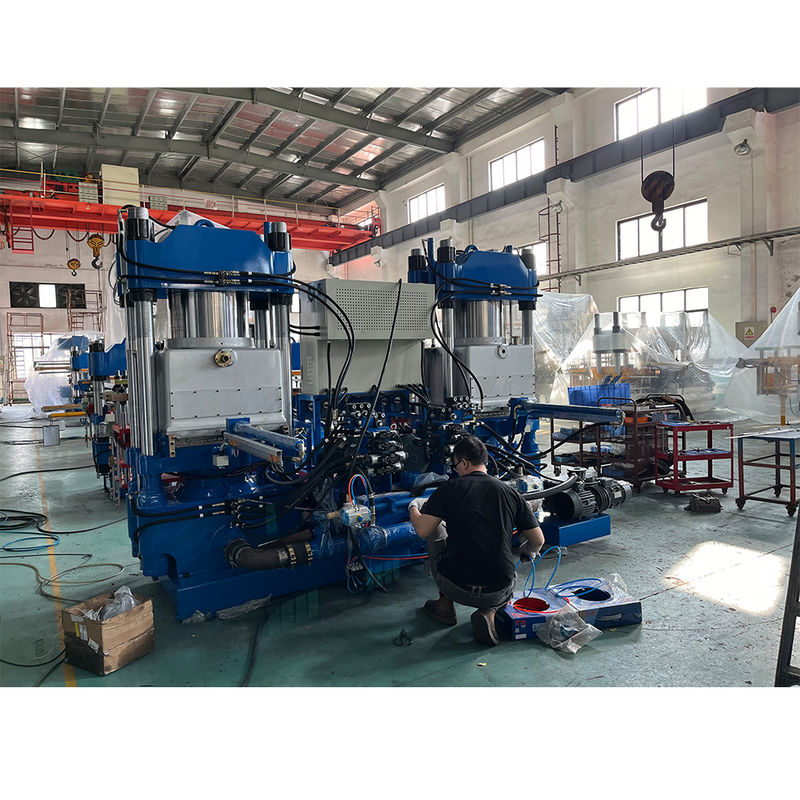

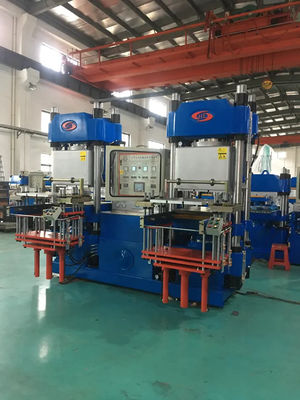

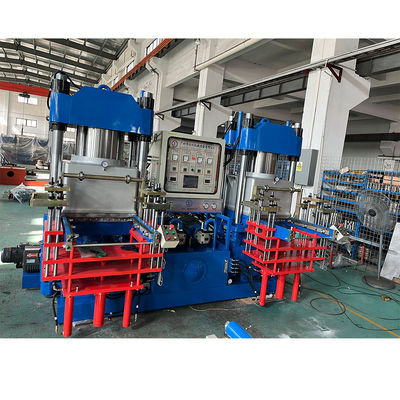

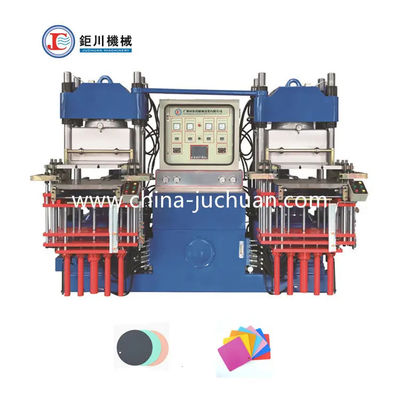

Automatic Rubber Press Vacuum Compression Moulding Machine To Make Steering Wheel Cover Inner Rubber Ring
Product Details:
| Place of Origin: | China |
| Brand Name: | Juchuan |
| Certification: | ISO9001-2015 |
| Model Number: | JC-VF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 24000/set |
| Packaging Details: | container |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Sets per Month |
|
Detail Information |
|||
| Clamp Force(Ton): | 100 - 800 | Plunger Stroke(mm): | 200 - 350 |
|---|---|---|---|
| Mold Opening Type: | 2RT-3RT-4RT-Track | Max. Operating Pressure(MPa): | 2RT-3RT-4RT |
| Motor Power(KW): | 5.5*2-11 | Heating Power(KW): | 7.2*2 - 90 |
| High Light: | Rubber Flange Gasket Making Press Machine 69KW,Medical Syringe Making Press Machine 69KW,Flange Gasket Making Press Machine 69KW |
||
Product Description
| Clamp Force: | 300 Ton | Upper Plate Size: | 680*680mm |
|---|---|---|---|
| Machine Dimension: | 3360*2970*2850mm | Motor Capacity: | 7.5KW*2 |
| Total Capacity: | 69KW | Dimension: | L3360*W2970*H2850mm |
| Vacuum Pump Power: | 3KW *2 | ||
| High Light: |
rubber compression moulding machine,rubber compression molding machine |
||

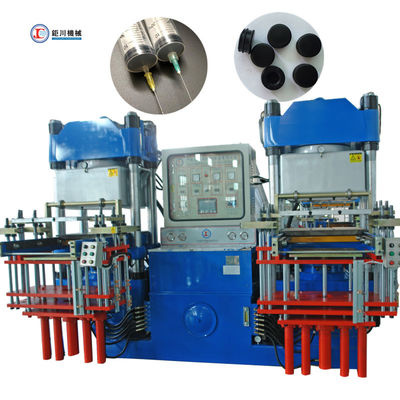

Syringe Production Medical Syringe Rubber Flange Gasket Making Press Machine
4RT Features:
The 4RT surpasses traditional top opening mold that can be used for taking out the final product when there are triple or four mold plates with the design of opening mold, pushing out the mold in between, and rising thimble to eject the final production.
4RT Machine motions flow:
- Unload the mold
- M1 goes up to open the mold
- M2 goes up and separates from the mold
- M3 follow the K goes backward
- M2 goes down
- L goes up take out the finished product, clean and place new material for re-start.
- L goes down; M2 goes up, M3 follow the bottom plate goes forward.
- M2&M1 go down.
- Mold in, main ram goes up and molding than main ram goes down and mold-out when completed the process.
Main Feature:
1. Every work station can be used independently with respectively hydraulic and power motor.
2. Special design movement platen with consistent 3. clamping force for better molded part quality.
3. High vacuuming/degassing speed.
4. Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)
5. Adaptable with different mold model.
6. Suitable for sealing parts(eg.O-rings, gaskets), automotive parts, keypads, electronic rubber parts, etc.
300Ton parameter:
| Model | Unit | 300VF |
| Clamping Force | Ton | 300 |
| Upper Platen Size | mm | 680*680 |
| Lower Platen Size | mm | 700*800 |
| Plunger stroke | mm | 300 |
| Distance of Thermo-plate | mm | 300 |
| Distance of Tie bar | mm | 785*380 |
| Die sinking type | 2RT-3RT-4RT-Track | |
| Max Operating Pressure | Mpa | 20 |
| Motor Power | hp | 10*2 |
| Electric Heating Power | Kw | 24*2 |
| Vacuum Pump Power | Kw | 3*2 |
| Total Power | Kw | 69 |
| Gross weight | Ton | 15.45 |
| Dimension | mm | L3360*W2970*H2850 |
The other capacity:
| Model | Unit | 100VF | 200VF | 250VF | 400VF | 500VF |
| Clamping Force | Ton | 100 | 200 | 250 | 400 | 500 |
| Upper Platen Size | mm | 380*400 | 510*510 | 600*600 | 800*800 | 950*950 |
| Lower Platen Size | mm | 400*460 | 550*560 | 650*600 | 850*850 | 1000*1000 |
| Plunger stroke | mm | 200 | 250 | 250 | 350 | 350 |
| Distance of Thermo - plate |
mm | 200 | 250 | 250 | 350 | 350 |
| Distance of Tie bar | mm | 490*230 | 640*310 | 745*310 | 940*450 | 1105*475 |
| Die sinking type | 2RT-3RT-4RT-Track | |||||
| Max Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 7.5*2 | 10*2 | 10*2 | 15*2 | 15 |
| Electric Heating Power |
Kw | 7.2*2 | 13.5*2 | 15.3*2 | 26.4*2 | 36 |
| Vacuum Pump Power |
Kw | 3 | 3 | 3*2 | 3*2 | 4 |
| Total Power | Kw | 28.4 | 45 | 51.6 | 84.8 | 49 |
| Gross weight | Ton | 5 | 7.8 | 11 | 18 | 14.5 |
| Dimension | mm | 2500*2150*2080 | 2930*2500*2350 | 3190*2930*2495 | 3650*3050*2900 | 1460*3600*3150 |
Product Show:
what product our machine can make?
Related product:
|
|
|
Shipping and packing
Company information
Thailand exhibition show:
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
