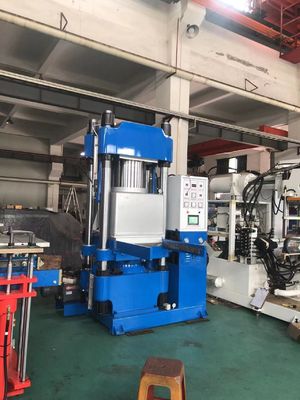

China Factory Price Silicone Rubber products Vacuum Compression Making Machine for making rubber silicone products
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | Juchuan |
| Certification: | ISO9001:2015 |
| Model Number: | JC-VF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 26800-42000one set |
| Packaging Details: | container |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Clamp Force: | 50-1000 | Plunger Stroke: | 200-350 |
|---|---|---|---|
| Heating Plate Distance: | 200-350 | Opening Mold Type: | 2RT3RT4RT |
| Total Power: | 28.4-104 | Gross Weight: | 5-20 |
| High Light: | rubber compression machine 20Mpa,silicone injection molding machine 20Mpa,Clamp Force silicone injection molding machine |
||
Product Description
China Factory Price Silicone Rubber products Vacuum Compression Making Machine for making rubber silicone products
* The double work stations can be used separately or simultaneously. Each station is independent oil circuit design, double oil pump and double motord configuration.
* High quality German vacuumpump withdd fast pumping speed.
* Mechanical design plates, which makes the clamping force more uniform and can be equipped with a variety of demolding structure.
Technical parameter
| Model | 100VF | 200VF | 250VF | 300VF | 300VF | 350VF | 400VF | 500VF | 800HF |
| Clamp Force(Ton) | 100 | 200 | 250 | 300 | 300 | 350 | 400 | 500 | 1200 |
| Upper Platen Size(mm) | 380*400 | 510*510 | 600*600 | 600*600 | 680*680 | 700*700 | 760*900 | 1200*700 | 1600*1100 |
| Lower Platen Size(mm) | 400*460 | 550*560 | 650*600 | 650*600 | 700*800 | 700*700 | 900*1060 | 1200*700 | 1750*1300 |
| Plunger Diameter (mm) | Φ250 | Φ360 | Φ400 | Φ450 | Φ450 | Φ480 | Customized | Customized | Customized |
| Plunger Stroke (mm) | 200 | 250 | 250 | 300 | 300 | 300-400 | 400 | 300 | 350 |
| Heating Plates Distance (mm) | 200 | 250 | 250 | 250 | 300 | 300 | 400 | 300 | 350 |
| Tie Bar Distance (mm) | 490*230 | 640*310 | 745*310 | 745*310 | 785*380 | / | 920*380 | 1321*345 | 1840*570 |
| Mold Opening Type | 2RT- 3RT - 4RT - Track | ||||||||
| Max. Operating Pressure (MPa) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Motor Power (KW) | 5.5*2 | 7.5*2 | 7.5*2 | 11*2 | 11*2 | 11*2 | 11 | 11 | 11 |
| Heating Power (KW) | 7.2*2 | 13.5*2 | 15.3*2 | 24*2 | 24*2 | 24*2 | 25 | 30 | 90 |
| Vacuum Pump Power(KW) | 3 | 3 | 3.2 | 3.2 | 3.2 | 3 | 3 | 3 | 3 |
| Total Power (KW) | 28.4 | 45 | 48.8 | 48.8 | 66.2 | 73 | 39 | 44 | 104 |
| Gross Weight (Ton) | 5 | 7.5 | 11 | 11 | 15.45 | / | / | / | / |
| Machine Size L*W*H (mm) | 2500*2150*2100 | 2930*2500*2350 | 3190*2930*2495 | 3190*2930*2495 | 3360*2970*2850 | Customized | Customized | Customized | Customized |
Company Information
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our Main Products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Trade Show
Our service
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
