China Factory High Quality 500Ton Silicone Baby Feeding Bib Making Machine

China Factory High Quality 500Ton Silicone Baby Feeding Bib Making Machine

Product Details:

Place of Origin: Guangdong China
Brand Name: JUCHUAN
Certification: ISO9001:2015
Model Number: JC-VF

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD 21800-40000one set
Packaging Details: container
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Clamp Force: 50-1000 Plunger Stroke: 200-350
Heating Plate Distance: 200-350 Opening Mold Type: 2RT3RT4RT
Total Power: 28.4-104 Gross Weight: 5-20
High Light:

Silicone Baby Feeding Bib Making Machine

,

Silicone Baby Feeding Bib Making Machine 20MPA

,

500Ton Silicone Baby Feeding Bib Making Machine

Product Description

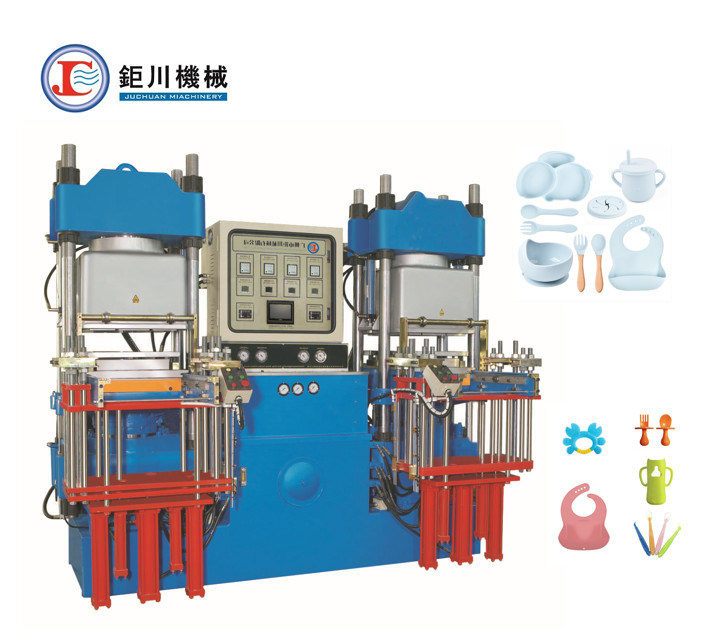

China Factory High Quality 500Ton Silicone Baby Feeding Bib Making Machine

China Factory High Quality 500Ton Silicone Baby Feeding Bib Making Machine 0

China Factory High Quality 500Ton Silicone Baby Feeding Bib Making Machine 1



Machine Features


* This Machine is suitable for complex structure and difficult exhaust rubber and silicone spare parts, such as irregular rubber seals, automotive rubber parts, conductive buttons, and high sensitivity requirement electronic products.



* The double work stations can be used separately or simultaneously. Each station is independent oil circuit design, double oil pump and double motord configuration.



* High quality German vacuumpump withdd fast pumping speed.



* Mechanical design plates, which makes the clamping force more uniform and can be equipped with a variety of demolding structure.





Technical Parameters



Model 100VF 200VF 250VF 300VF 300VF 350VF 400VF 500VF 800HF
Clamp Force(Ton) 100 200 250 300 300 350 400 500 1200
Upper Platen Size(mm) 380*400 510*510 600*600 600*600 680*680 700*700 760*900 1200*700 1600*1100
Lower Platen Size(mm) 400*460 550*560 650*600 650*600 700*800 700*700 900*1060 1200*700 1750*1300
Plunger Diameter (mm) Φ250 Φ360 Φ400 Φ450 Φ450 Φ480 Customized Customized Customized
Plunger Stroke (mm) 200 250 250 300 300 300-400 400 300 350
Heating Plates Distance (mm) 200 250 250 250 300 300 400 300 350
Tie Bar Distance (mm) 490*230 640*310 745*310 745*310 785*380 / 920*380 1321*345 1840*570
Mold Opening Type 2RT- 3RT - 4RT - Track
Max. Operating Pressure (MPa) 20 20 20 20 20 20 20 20 20
Motor Power (KW) 5.5*2 7.5*2 7.5*2 11*2 11*2 11*2 11 11 11
Heating Power (KW) 7.2*2 13.5*2 15.3*2 24*2 24*2 24*2 25 30 90
Vacuum Pump Power(KW) 3 3 3.2 3.2 3.2 3 3 3 3
Total Power (KW) 28.4 45 48.8 48.8 66.2 73 39 44 104
Gross Weight (Ton) 5 7.5 11 11 15.45 / / / /
Machine Size L*W*H (mm) 2500*2150*2100 2930*2500*2350 3190*2930*2495 3190*2930*2495 3360*2970*2850 Customized Customized Customized Customized







Application Products

China Factory High Quality 500Ton Silicone Baby Feeding Bib Making Machine 2China Factory High Quality 500Ton Silicone Baby Feeding Bib Making Machine 3





Company Information

* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.









Our Main Products



Silicone rubber injection molding machine



Vertical hydraulic rubber injection machine



Horizontal silicone rubber injection machine



Liquid silicone injection molding machine



Vacuum compression machine



Silicone rubber hot press machine



China Factory High Quality 500Ton Silicone Baby Feeding Bib Making Machine 4

China Factory High Quality 500Ton Silicone Baby Feeding Bib Making Machine 5



Trade Show

China Factory High Quality 500Ton Silicone Baby Feeding Bib Making Machine 6

China Factory High Quality 500Ton Silicone Baby Feeding Bib Making Machine 7



Our service



1. Free technology training: you can come for inspection and training for free.



2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.



3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)



4. Online remote control for software problems, whatspp or wechat for video checking.

China Factory High Quality 500Ton Silicone Baby Feeding Bib Making Machine 8
