Product Details:

Place of Origin: Guangdong China
Brand Name: Juchuan
Certification: SGS CE ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD 21800-40000one set
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Clamp Force: 50-1000 Plunger Stroke: 200-350
Heating Plate Distance: 200-350 Opening Mold Type: 2RT3RT4RT
Total Power: 28.4-104 Gross Weight: 5-20
High Light:

Rubber Whorled Vacuum Compression Molding Machine

,

Rubber Whorled Oil Cap Making Mould Machine

,

Oil Cap Making Mould Machine 500 Ton

Product Description

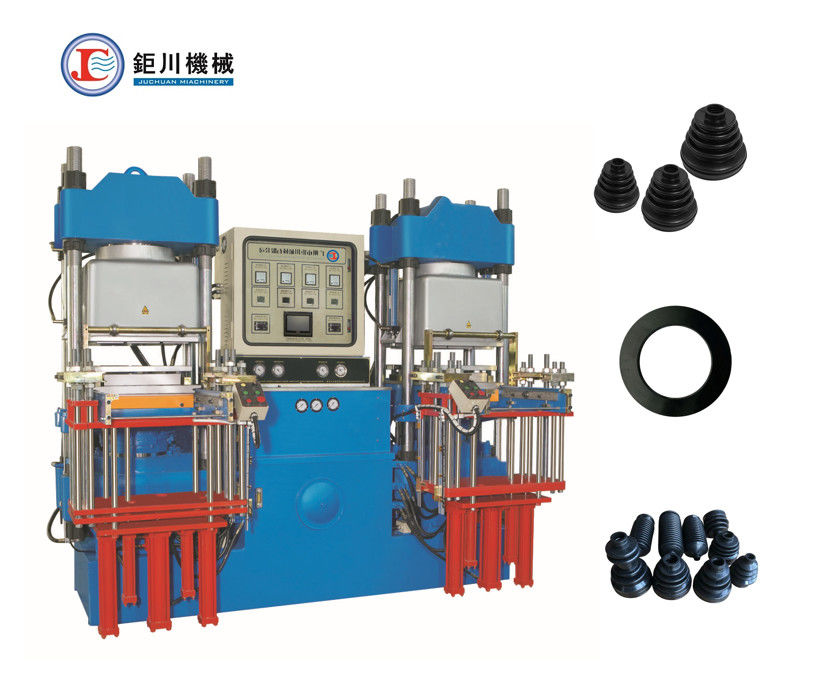

Rubber Whorled Oil Cap Making Mould Machine 500 Ton Vacuum Compression Molding Machine For Car Industry




Specific Characteristic:

1. Vacuum capacity: able to achieve high degree of vacuum. A standard vacuum method is used to make consistently high quality products.



2. Open the mold design: a new type of patent guide rail. Special design can be 90 degrees open angle, easy to operate.



3. Mold handling design: in the mold handling agencies to join a special design. It is durable and quiet. Fast and outdated.



4. Hydraulic System Design: The system uses high-pressure pump and low-pressure pump, which can shut down two presses at the same time. The system isless noise, stable performance, long service life.





5. Alignment: provide two different mold calibration speed: fast and slow, the user can choose to use according to the actual situation. It makes calibration more secure and accurate.


Flow Of Machine Motions:

  1. Close the mold and load the mold

  2. After loading the mold, the main cylinder goes up to the predetermined position. Lower the vacuum hood. Suck out the air unit a state of vacuum is reached. The main cylinder goes up. Increase the pressure to expel bubbles out.

  3. After bubbles are expelled completely, the state of vacuum exists no more. Lift the vacuum mask and curing.

  4. Lower the main cylinder and unload the mold. Open the mold.

  5. Take out the final product and put new material in.

Main Feature:



1. Every work station can be used independently with respectively hydraulic and power motor.

2. Special design movement platen with consistent 3. clamping force for better molded part quality.

3. High vacuuming/degassing speed.

4. Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)

5. Adaptable with different mold model.

6. Suitable for sealing parts(eg.O-rings, gaskets), automotive parts, keypads, electronic rubber parts, etc.





Model Unit 100VF 200VF 250VF 300VF 400VF 500VF
Clamping Force Ton 100 200 250 300 400 500
Upper Platen Size mm 380*400 510*510 600*600 680*680 800*800 950*950
Lower Platen Size mm 400*460 550*560 650*600 700*800 850*850 1000*1000
Plunger stroke mm 200 250 250 300 350 350
Distance of Thermo
- plate
mm 200 250 250 300 350 350
Distance of Tie bar mm 490*230 640*310 745*310 785*380 940*450 1105*475
Die sinking type 2RT-3RT-4RT-Track
Max Operating
Pressure
Mpa 20 20 20 20 20 20
Motor Power hp 7.5*2 10*2 10*2 10*2 15*2 15
Electric Heating
Power
Kw 7.2*2 13.5*2 15.3*2 24*2 26.4*2 36
Vacuum Pump
Power
Kw 3 3 3*2 3*2 3*2 4
Total Power Kw 28.4 45 51.6 69 84.8 49
Gross weight Ton 5 7.8 11 15.45 18 14.5
Dimension mm 2500*2150*2080 2930*2500*2350 3190*2930*2495 3360*2970*2850 3650*3050*2900 1460*3600*3150

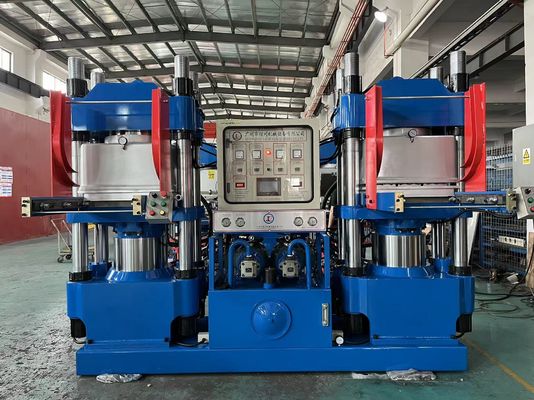

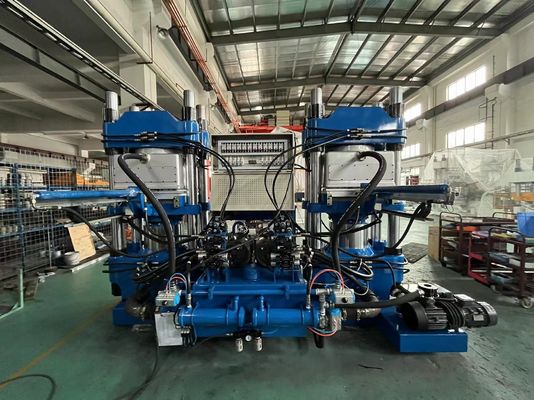

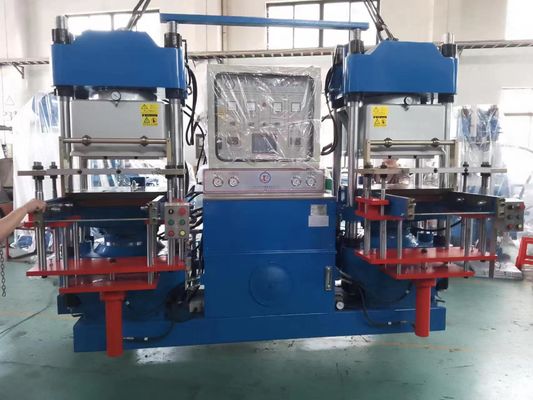

Product Show:
Hydraulic Vacuum Compression Molding Machine 2RT - 3RT - 4RT - Track Long Service Life 0

Finished Product:
Rubber Whorled Oil Cap Making Mould Machine 500 Ton Vacuum Compression Molding Machine For Car Industry 1
