250 Ton hydraulic Rubber Seal Vacuum Compression Molding Machine For UPVC Pipes
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | Juchuan |
| Certification: | SGS CE ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | SD 21800-40000one set |
| Delivery Time: | 50days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Clamp Force: | 50-1000 | Plunger Stroke: | 200-350 |
|---|---|---|---|
| Heating Plate Distance: | 200-350 | Opening Mold Type: | 2RT3RT4RT |
| Total Power: | 28.4-104 | Gross Weight: | 5-20 |
| High Light: | Rubber Seal Vacuum Compression Molding Machine,UPVC Pipes hydraulic rubber press machine,250 Ton hydraulic rubber press machine |
||
Product Description
| Clamp Force: | 250 Ton | Upper Plate Size: | 600*600mm |
|---|---|---|---|
| Lower Plate Size: | 650*600mm | Die Sinking Type: | 2RT-3RT-4RT-Track |
| Dimension: | L3190*W2930*H2495mm | Tie Bar Distance: | 785mm*380mm |
| Gross Weight: | 11Ton | ||
| High Light: |
rubber compression moulding machine,rubber compression molding machine |
||

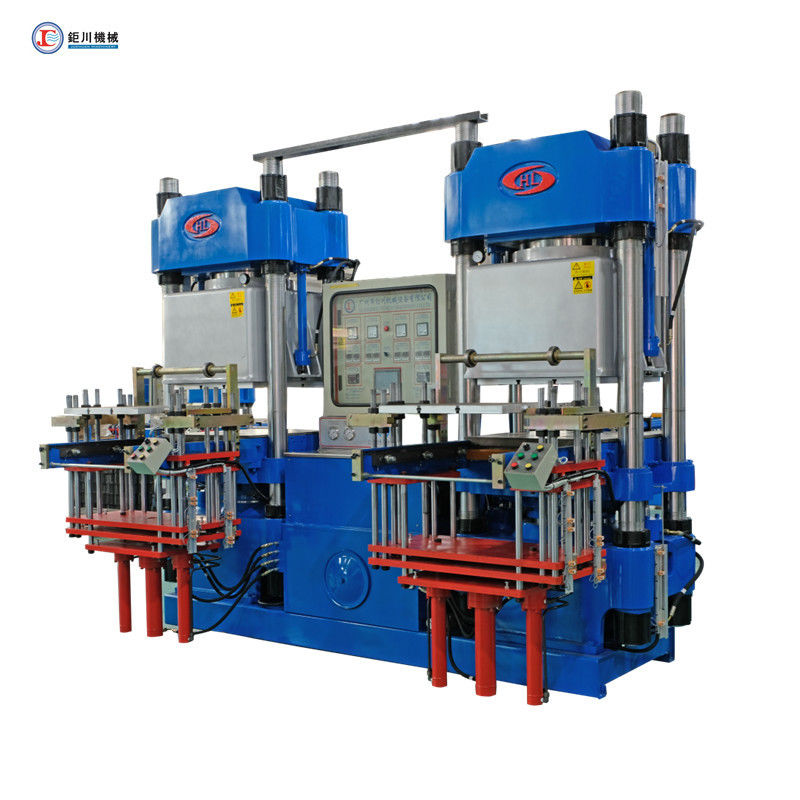

Hydraulic Rubber Vacuum Compression Molding Machine For Making Rubber Seals For Upvc Pipes
Main Feature:
1. Every work station can be used independently with respectively hydraulic and power motor.
2. Special design movement platen with consistent 3. clamping force for better molded part quality.
3. High vacuuming/degassing speed.
4. Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)
5. Adaptable with different mold model.
6. Suitable for sealing parts(eg.O-rings, gaskets), automotive parts, keypads, electronic rubber parts, etc.
4RT Features:
The 4RT surpasses traditional top opening mold that can be used for taking out the final product when there are triple or four mold plates with the design of opening mold, pushing out the mold in between, and rising thimble to eject the final production.
4RT Machine motions flow:
- Unload the mold
- M1 goes up to open the mold
- M2 goes up and separates from the mold
- M3 follow the K goes backward
- M2 goes down
- L goes up take out the finished product, clean and place new material for re-start.
- L goes down; M2 goes up, M3 follow the bottom plate goes forward.
- M2&M1 go down.
- Mold in, main ram goes up and molding than main ram goes down and mold-out when completed the process.
250Ton parameter:
| Model | Unit | 250VF |
| Clamping Force | Ton | 250 |
| Upper Platen Size | mm | 600*600 |
| Lower Platen Size | mm | 650*600 |
| Plunger stroke | mm | 250 |
| Distance of Thermo-plate | mm | 250 |
| Distance of Tie bar | mm | 745*310 |
| Die sinking type | 2RT-3RT-4RT-Track | |
| Max Operating Pressure | Mpa | 20 |
| Motor Power | hp | 10*2 |
| Electric Heating Power | Kw | 15.3*2 |
| Vacuum Pump Power | Kw | 3*2 |
| Total Power | Kw | 51.6 |
| Gross weight | Ton | 11 |
| Dimension | mm | L3190*W2930*H2495 |
The other parameter:
| Model | Unit | 100VF | 200VF | 300VF | 400VF | 500VF |
| Clamping Force | Ton | 100 | 200 | 300 | 400 | 500 |
| Upper Platen Size | mm | 380*400 | 510*510 | 680*680 | 800*800 | 950*950 |
| Lower Platen Size | mm | 400*460 | 550*560 | 700*800 | 850*850 | 1000*1000 |
| Plunger stroke | mm | 200 | 250 | 300 | 350 | 350 |
| Distance of Thermo - plate |
mm | 200 | 250 | 300 | 350 | 350 |
| Distance of Tie bar | mm | 490*230 | 640*310 | 785*380 | 940*450 | 1105*475 |
| Die sinking type | 2RT-3RT-4RT-Track | |||||
| Max Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 7.5*2 | 10*2 | 10*2 | 15*2 | 15 |
| Electric Heating Power |
Kw | 7.2*2 | 13.5*2 | 24*2 | 26.4*2 | 36 |
| Vacuum Pump Power |
Kw | 3 | 3 | 3*2 | 3*2 | 4 |
| Total Power | Kw | 28.4 | 45 | 69 | 84.8 | 49 |
| Gross weight | Ton | 5 | 7.8 | 15.45 | 18 | 14.5 |
| Dimension | mm | 2500*2150*2080 | 2930*2500*2350 | 3360*2970*2850 | 3650*3050*2900 | 1460*3600*3150 |
Product Show:

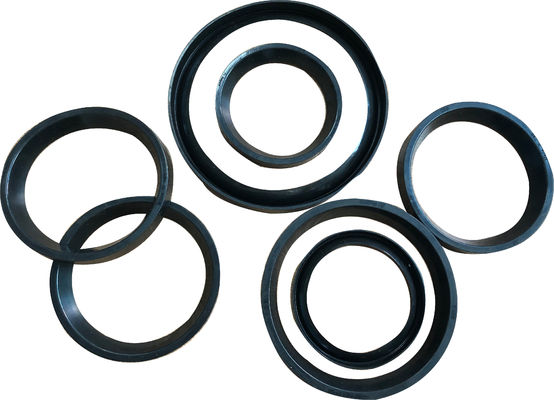

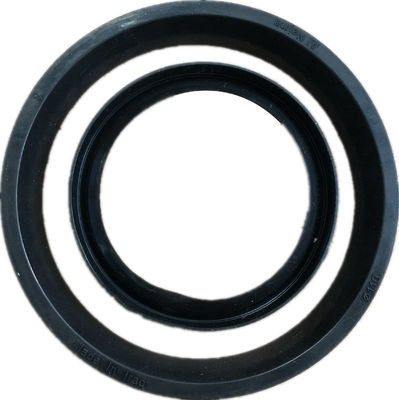

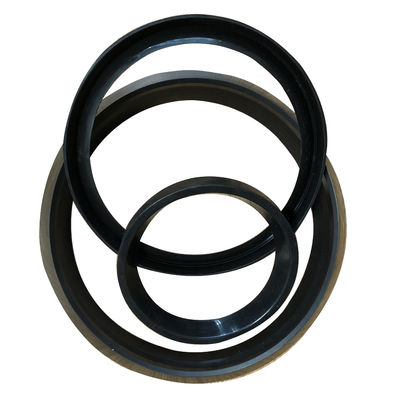

Finished Product:
