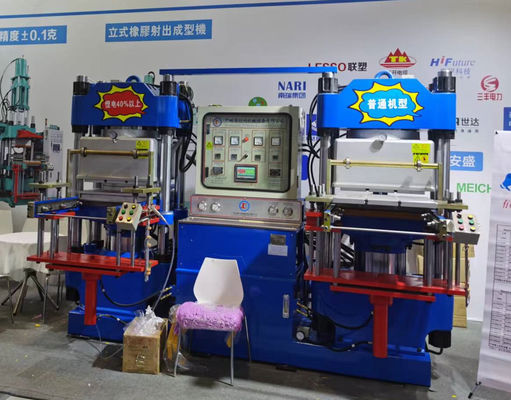

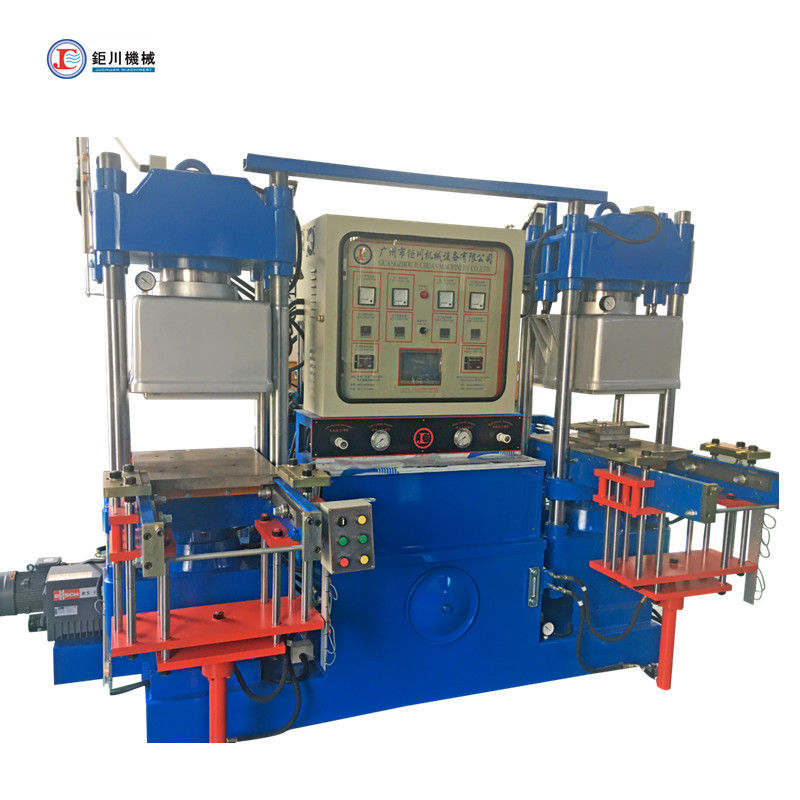

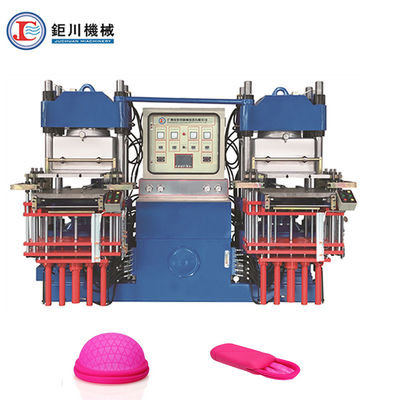

High productive Blue Vacuum Press Silicone Rubber Machine with CE for making rubber silicone products
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | Juchuan |
| Certification: | SGS CE ISO9001 |
| Model Number: | JC - VF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | SD 21400/set |
| Packaging Details: | container |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Sets per Month |
|
Detail Information |
|||
| Color: | Blue Or As Your Choice | Clamp Force(Ton): | 100 - 800 |
|---|---|---|---|
| Plunger Stroke: | 200 - 350 | Heating Plates Distance(mm): | 200 - 350 |
| Mold Opening Type: | 2RT-3RT-4RT-Track | Motor Power: | 5.5*2 - 11 |
| Vacuum Pump Power(KW): | 3 - 3.2 | Gross Weight(Ton): | 5 - 15.45 |
| High Light: | Vaccum Compression Silicone Rubber Injection Molding Machine,Vaccum Compression Molding Machine,Silicone Rubber Injection Molding Machine SGS |
||
Product Description
| Clamp Force: | 200 Ton | Upper Plate Size: | 510x510mm |
|---|---|---|---|
| Lower Plate Size: | 550x560mm | Plunger Stroke: | 250mm |
| Heating Plate Size: | 250mm | Tie Bar Distance: | 640x310mm |
| High Light: |
rubber compression machine,rubber compression moulding machine |
||
Complicated Parts Vaccum Compression Molding Machine Easy Dmolding For Sealing Parts
Specific Characteristic:
- Vacuum Capability: It is capable of being high degree of vacuum. A standard vacuum method is used to make consistent high quality products.
- Mold Opening Design: A patent is granted for a new type rail mold opening. The opening angle is up to 90 degrees. It is very convenient for operation. Another feature of the new rail mold opening is that there is no need to remove the base of the rail mold opening while replacing molds. It promotes the work efficiency and safety.
- Mold Loading / Unloading Design: Incorporate a special design into the mechanism of mold loading / unloading. It is durable, quiet. speedy and stale.
- Hydraulic System Design: The system employs both high and low pressure pumps and is able to close both presses simultaneously. The system is quiet, reliable with minimum maintenance required.
- Alignment: Two speeds of mold calibration are provided for users to choose form, fast and slow. It makes the calibration more safe and more accurate.
Flow Of Machine Motions:
- Close the mold and load the mold
- After loading the mold, the main cylinder goes up to the predetermined position. Lower the vacuum hood. Suck out the air unit a state of vacuum is reached. The main cylinder goes up. Increase the pressure to expel bubbles out.
- After bubbles are expelled completely, the state of vacuum exists no more. Lift the vacuum mask and curing.
- Lower the main cylinder and unload the mold. Open the mold.
- Take out the final product and put new material in.
Main Feature:
1. Every work station can be used independently with respectively hydraulic and power motor.
2. Special design movement platen with consistent 3. clamping force for better molded part quality.
3. High vacuuming/degassing speed.
4. Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)
5. Adaptable with different mold model.
6. Suitable for sealing parts(eg.O-rings, gaskets), automotive parts, keypads, electronic rubber parts, etc.
| Model | Unit | 200VF | 250VF | 300VF | 400VF | 500VF |
| Clamping Force | Ton | 200 | 250 | 300 | 400 | 500 |
| Upper Platen Size | mm | 510*510 | 600*600 | 680*680 | 800*800 | 950*950 |
| Lower Platen Size | mm | 550*560 | 650*600 | 700*800 | 850*850 | 1000*1000 |
| Plunger stroke | mm | 250 | 250 | 300 | 350 | 350 |
|
Distance of Thermo - plate |
mm | 250 | 250 | 300 | 350 | 350 |
| Distance of Tie bar | mm | 640*310 | 745*310 | 785*380 | 940*450 | 1105*475 |
| Die sinking type | 2RT-3RT-4RT-Track | |||||
|
Max Operating Pressure |
Mpa | 20 | 20 | 20 | 20 | 20 |
| Motor Power | hp | 10*2 | 10*2 | 10*2 | 15*2 | 15 |
|
Electric Heating Power |
Kw | 13.5*2 | 15.3*2 | 24*2 | 26.4*2 | 36 |
|
Vacuum Pump Power |
Kw | 3 | 3*2 | 3*2 | 3*2 | 4 |
| Total Power | Kw | 45 | 51.6 | 69 | 84.8 | 49 |
| Gross weight | Ton | 7.8 | 11 | 15.45 | 18 | 14.5 |
| Dimension | mm |
2930*2500 *2350 |
3190*2930 *2495 |
3360*2970 *2850 |
3650*3050 *2900 |
1460*3600 *3150 |
* Guangzhou JuChuan Machinery Co.,Ltd has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products:
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine

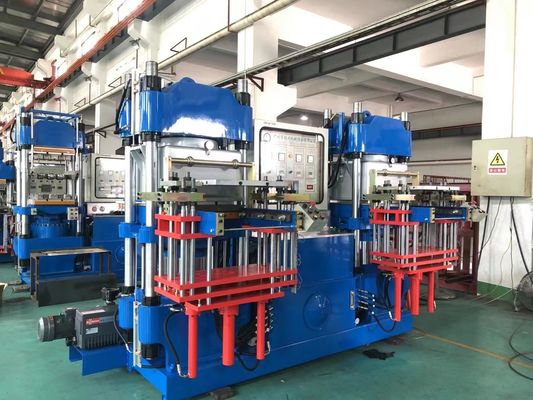

Our Factory:
