Product Details:

Place of Origin: Guangdong, China
Brand Name: JuChuan
Model Number: JC-HF1

Payment & Shipping Terms:

Price: $16,800.00/sets >=1 sets
Packaging Details: shrink film packing
Supply Ability: 1000 Set/Sets per Month injection machine
Get Best Price Contact Now

Detail Information

Condition: New Style: VERTICAL
Ejector Stroke(mm): 250 Mm Ejector Force(kN): 2000 KN
Theoretical Shot Volume(cm³): 1000 Cm³ Injection Rate (g/s): 100 G/s
Machine Type: Hydraulic Injection Weight (g): 100 G
Screw Diameter (mm): 35 Mm Distance Between Tie Bars: 350
Weight (KG): 8000 Kg Type: Plate Vulcanizing Machine
Open Stroke(mm): 250 Mm Power (kW): 24 KW
Warranty: 1 Year Key Selling Points: Competitive Price
Applicable Industries: Manufacturing Plant Showroom Location: None
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, Pump, PLC
Automatic: Yes After-sales Service Provided: Overseas Service Center Available
Clamp Force: 300ton Upper Platen Size (mm): 680*680
Lower Platen Size(mm): 700*800 Plunger Stroke: 300mm
Heating Plates Distance: 300mm Max Operating Pressure: 20MPa
Tie Bar Distance: 785x380mm Vacuum Pump Capacity: 3*2KW
Port: Guangzhou

Product Description

Rubber Product Making Machinery Rubber Silicone Vacuum Molding Machine To Make Rubber Parts



 Rubber Product Making Machinery Rubber Silicone Vacuum Molding Machine To Make Rubber Parts 0





Advanced Vacuum Compression Molding Machine Technology:

  • Special insertion device: can be customized according to customer requirements. It is mainly used to lock the second and third layers without separation when the three-layer mold is opened.
  • There is a separate pressure gauge on the vacuum cover to show the pumping pressure, which is convenient for timely observation of the pumping state.
  • Mainly applicable to: rubber silicone fittings with complex structure and difficult exhaust.



Vacuum plate vulcanizing machine Features:

  1. using dual motor double pump double oil circuit System design, two working positions are independently controlled and operated independently.
  2. the front top opening and closing moldIn the way, the mold is pushed out from the clamping mechanism, and the mold is opened in front of the machine to facilitate the taking of the product;
  3. the use of high vacuum vacuum cover design, the mold can be in a near-complete vacuum environment, improve mold exhaust performance;
  4. The vacuum cover is completed above the vacuum of -650mmHG within 4 seconds. It is not suitable for forming, and the precision finished product is most suitable;
  5. Reduce the vulcanizing time, improve the products qualified rate, improve the working efficiency of the machine.


Vacuum plate vulcanizing machine application:

  • O-ring, pressing, keyboard, roller, medical drug plug, shockproof products, black rubber products, daily necessities, gaskets, conductive products, electronic products, etc.
  • Do not apply to the production of long and large insulator products or other products. When the rubber injection machine is opened, the opening is upward, which is suitable for lifting and removing the product by driving.



Main Technical Parameters:

Model Unit 300VF
Clamping Force Ton 300
Upper Platen Size mm 680*680
Lower Platen Size mm 700*800
Plunger stroke mm 300
Distance of Thermo-plate mm 300
Distance of Tie bar mm 785*380
Die sinking type 2RT-3RT-4RT-Track
Max Operating Pressure Mpa 20
Motor Power hp 10*2(7.5KW*2)
Electric Heating Power Kw 24*2
Vacuum Pump Power Kw 3*2
Total Power Kw 69
Gross weight Ton 15.45
Dimension mm L3360*W2970*H2850



Other Vacuum Compression Machine Parameters:

Model Unit 200VF 250VF 300VF 400VF 500VF
Clamping Force Ton 200 250 300 400 500
Upper Platen Size mm 510*510 600*600 680*680 800*800 950*950
Lower Platen Size mm 550*560 650*600 700*800 850*850 1000*1000
Plunger stroke mm 250 250 300 350 350

Distance of Thermo

- plate

mm 250 250 300 350 350
Distance of Tie bar mm 640*310 745*310 785*380 940*450 1105*475
Die sinking type 2RT-3RT-4RT-Track

Max Operating

Pressure

Mpa 20 20 20 20 20
Motor Power hp 10*2 10*2 10*2 15*2 15

Electric Heating

Power

Kw 13.5*2 15.3*2 24*2 26.4*2 36

Vacuum Pump

Power

Kw 3 3*2 3*2 3*2 4
Total Power Kw 45 51.6 69 84.8 49
Gross weight Ton 7.8 11 15.45 18 14.5
Dimension mm 2930*2500*2350 3190*2930*2495 3360*2970*2850 3650*3050*2900 1460*3600*3150
Product show

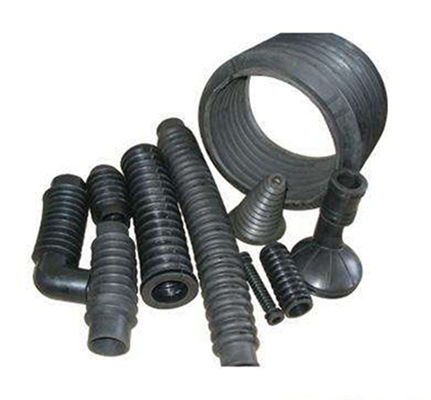

 what product our machine can make?

Rubber Product Making Machinery Rubber Silicone Vacuum Molding Machine To Make Rubber Parts 1









Related Products

Related product:



Rubber Product Making Machinery Rubber Silicone Vacuum Molding Machine To Make Rubber Parts 2 Rubber Product Making Machinery Rubber Silicone Vacuum Molding Machine To Make Rubber Parts 3

Rubber Product Making Machinery Rubber Silicone Vacuum Molding Machine To Make Rubber Parts 4



Packaging & Shipping

 Shipping and packing

 Rubber Product Making Machinery Rubber Silicone Vacuum Molding Machine To Make Rubber Parts 5





Company Information

Company information



Rubber Product Making Machinery Rubber Silicone Vacuum Molding Machine To Make Rubber Parts 6Rubber Product Making Machinery Rubber Silicone Vacuum Molding Machine To Make Rubber Parts 7



Rubber Product Making Machinery Rubber Silicone Vacuum Molding Machine To Make Rubber Parts 8



Rubber Product Making Machinery Rubber Silicone Vacuum Molding Machine To Make Rubber Parts 9



Thailand exhibition show:

Rubber Product Making Machinery Rubber Silicone Vacuum Molding Machine To Make Rubber Parts 10



Our Services



Our service:

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.
