Rubber Products Vacuum Compression Molding Machine For Making Rubber Gaskets

Rubber Products Vacuum Compression Molding Machine For Making Rubber Gaskets

Product Details:

Place of Origin: China
Brand Name: JUCHUAN
Certification: ISO9001:2015
Model Number: JC-VF

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD 25000 - 40000/set
Packaging Details: container
Delivery Time: 45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Sets per Month
Get Best Price Contact Now

Detail Information

Clamp Force(Ton): 100 - 1200 Platen Size(mm): 400*460 - 1600*2200
Plunger Stroke(mm): 200 - 350 Heating Plates Distance(mm): 200 - 550
Tie Bar Distance(mm): 490*230 - 1105*475 Mold Opening Type: 2RT-3RT-4RT-Track-Suspension
Max. Operating Pressure(MPa): 20 Motor Power(KW): 5.5*2 - 18.5
Total Power(KW): 25.4 - 144.5 Gross Weight(Ton): 5 - 28.5
Key Selling Points: Competitive Price Showroom Location: None
Applicable Industries: Manufacturing Plant Clamp Force: 100~1200 Ton
Plunger Stroke: 200~350 Mm Gross Weight: 5~28.5 Ton
Power: 45kw After-sales Service Provided: Video Technical Support
Local Service Location: South Africa Marketing Type: New Product 2020
Port: Guangzhou

Product Description

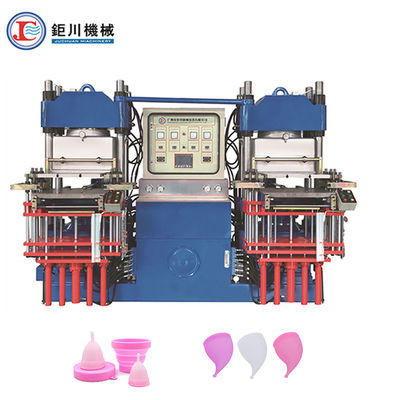

Rubber Products Vacuum Compression Molding Machine For Making Rubber Gaskets

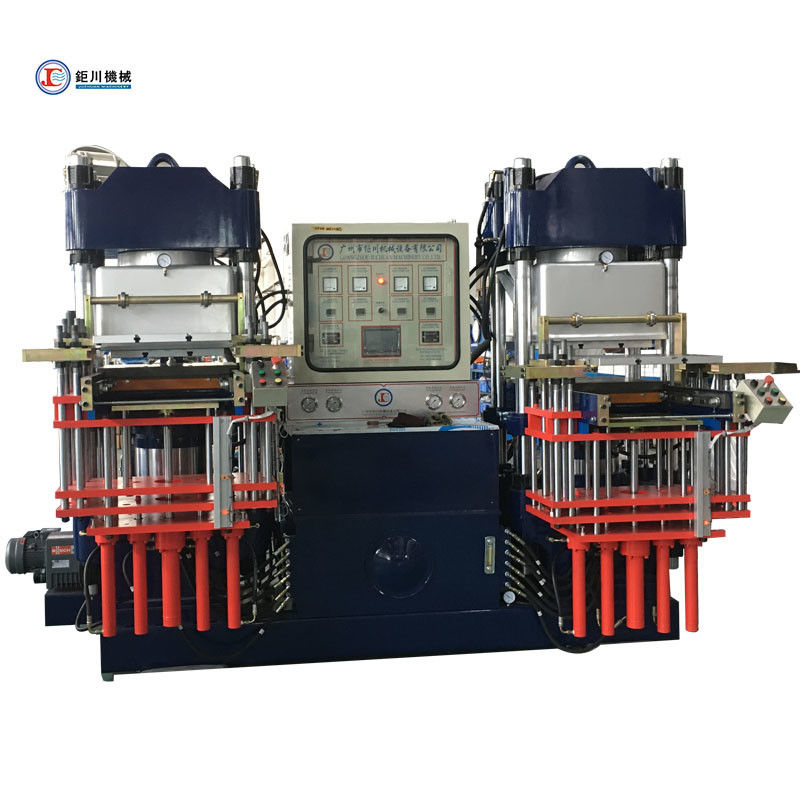

Rubber Products Vacuum Compression Molding Machine For Making Rubber Gaskets 2



Product Description



2RT Machine motion flow:

1. Setup the mold (initial status)

2. Supply the material and start the process(close the mold)

3. Load the mold

4. The main ram goes up to the predetermined position ready for entering a state of vacuum

5. Lower the vacuum mask. At the same time, suck out the air until a state of vacuum is reached.

6. The main ram goes up. Increase the pressure to expel bubbles out.

7. After the state of vacuum exist mo more, lift the vacuum hood and curing.

8. After curing, lower the main ram.

9. Unload the mold, open the mold.

10. Take out the final product and put new material in.


Technical parameter


Model Unit 100VF 200VF 250VF 300VF
Clamping Force Ton 100 200 250 300
Upper Platen Size mm 380*400 510*510 600*600 680*680
Lower Platen Size mm 400*460 550*560 650*600 700*800
Plunger stroke mm 200 250 250 300
Distance of Thermo-plate mm 200 250 250 300
Distance of Tie bar mm 490*230 640*310 745*310 785*380
Die sinking type 2RT-3RT-4RT-Track
Max Operating Pressure Mpa 20 20 20 20
Motor Power hp 7.5*2 10*2 10*2 10*2
Electric Heating Power Kw 7.2*2 13.5*2 15.3*2 24*2
Vacuum Pump Power Kw 3 3 3*2 3*2
Total Power Kw 28.4 45 51.6 69
Gross weight Ton 5 7.8 11 15.45
Dimension mm L2500*W2150*H2080 L2930*W2500*H2350 L3190*W2930*H2495 L3360*W2970*H2850

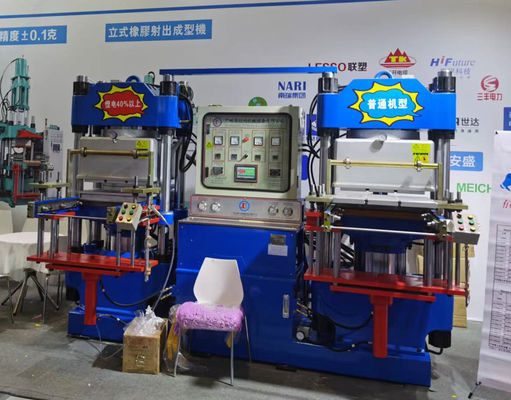

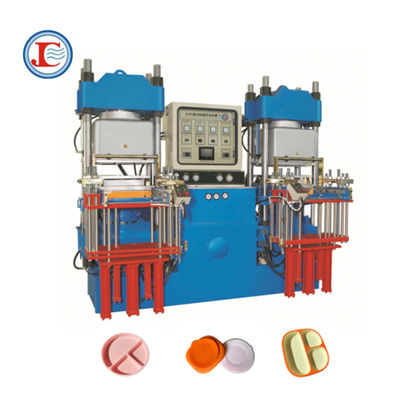

Product show


what products our machines can produce?

rubber productssilicone products

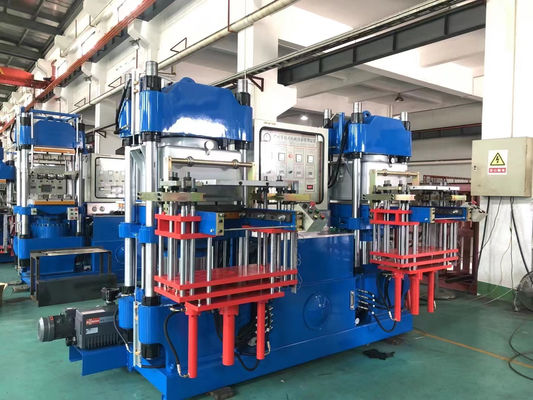

Company Information


* Guangzhou JuChuan Machinery Co.,Ltd has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.





Our main products

Silicone rubber injection molding machine

Vertical hydraulic rubber injection machine

Horizontal silicone rubber injection machine

Liquid silicone injection molding machine

Vacuum compression machine

Silicone rubber hot press machine
















Our service:

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.
