400T Rubber Vacuum Vulcanizing Press Machine Silicone Ear Protection Swimming Hat Adult Child Making Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | JUCHUAN |
| Certification: | ISO9001-2015 |
| Model Number: | JC-VF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 24000-40000/set |
| Packaging Details: | container |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Sets per Month |
|
Detail Information |
|||
| Clamp Force(Ton): | 100 - 800 | Plunger Stroke(mm): | 200 - 350 |
|---|---|---|---|
| Mold Opening Type: | 2RT-3RT-4RT-Track | Max. Operating Pressure(MPa): | 20 |
| Motor Power(KW): | 5.5*2-11 | Heating Power(KW): | 7.2*2 - 90 |
| Gross Weight(Ton): | 5 - 15.45 | Vacuum Pump Power(KW): | 3 - 3.2 |
| Heating Powe(KW): | 7.2*2 | ||
| High Light: | Vacuum Compression Molding Machine 380v,200 Ton Silicone Mitt Molding Machine,Silicone Mitt Molding Machine 380v |
||
Product Description

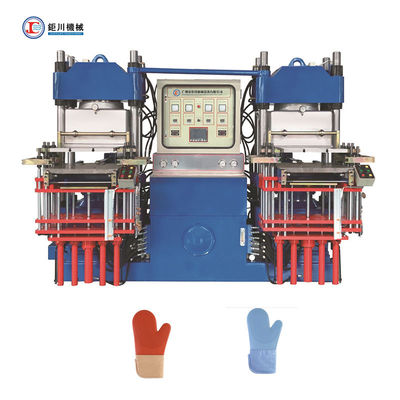

200 Ton Vacuum Compression Molding Machine
For Silicone Oven Heat Resistant Mitt
Technical parameter:
| Model | Unit | 100VF | 200VF | 250VF | 300VF |
| Clamping Force | Ton | 100 | 200 | 250 | 300 |
| Upper Platen Size | mm | 380*400 | 510*510 | 600*600 | 680*680 |
| Lower Platen Size | mm | 400*460 | 550*560 | 650*600 | 700*800 |
| Plunger stroke | mm | 200 | 250 | 250 | 300 |
| Distance of Thermo-plate | mm | 200 | 250 | 250 | 300 |
| Distance of Tie bar | mm | 490*230 | 640*310 | 745*310 | 785*380 |
| Die sinking type | 2RT-3RT-4RT-Track | ||||
| Max Operating Pressure | Mpa | 20 | 20 | 20 | 20 |
| Motor Power | hp | 7.5*2 | 10*2 | 10*2 | 10*2 |
| Electric Heating Power | Kw | 7.2*2 | 13.5*2 | 15.3*2 | 24*2 |
| Vacuum Pump Power | Kw | 3 | 3 | 3*2 | 3*2 |
| Total Power | Kw | 28.4 | 45 | 51.6 | 69 |
| Gross weight | Ton | 5 | 7.8 | 11 | 15.45 |
| Dimension | mm | L2500*W2150*H2080 | L2930*W2500*H2350 | L3190*W2930*H2495 | L3360*W2970*H2850 |
what products our machines can produce?
* Guangzhou JuChuan Machinery Co.,Ltd has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.
Our main products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Exhibition
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
