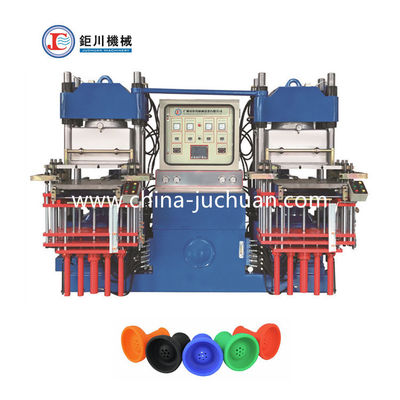

Customized Silicone-Mold-Making-Machine/Rubber Silicone Vulcanizing Machine For Hookah Silicone Bowl
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | juchuan |
| Certification: | iso |
Payment & Shipping Terms:
| Price: | $25,000.00 - $46,800.00/sets |
|---|---|
| Packaging Details: | shrink film paking |
| Supply Ability: | 1000 Set/Sets per Month vacuum press machine |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 5 Years |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Machine Type: | Vacuum Vulcanizing Press |
| Voltage: | 380v | Dimension(L*W*H): | 3190*2930*2495mm |
| Weight: | 11ton | Warranty: | 1 Year |
| Power (kW): | 51.6kw | Key Selling Points: | Famous Brand PLC |
| Showroom Location: | None | Applicable Industries: | Manufacturing Plant |
| Distance Of Tie Bar(mm): | 745*310 | Plunger Stroke(mm): | 250 |
| Upper Platen Size (mm): | 600*600 | Lower Platen Size(mm): | 650*600 |
| Heating Power: | 153.kw *2 | Total Power(W): | 51.6KW |
| Power: | 46kw | Marketing Type: | New Product 2020 |
| After-sales Service Provided: | Online Support, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | None | Port: | Guangzhou |
Product Description
Customized Silicone-Mold-Making-Machine/Rubber Silicone Vulcanizing Machine For Hookah Silicone Bowl
2RT Machine motion flow:
1. Setup the mold (initial status)
2. Supply the material and start the process(close the mold)
3. Load the mold
4. The main ram goes up to the predetermined position ready for entering a state of vacuum
5. Lower the vacuum mask. At the same time, suck out the air until a state of vacuum is reached.
6. The main ram goes up. Increase the pressure to expel bubbles out.
7. After the state of vacuum exist mo more, lift the vacuum hood and curing.
8. After curing, lower the main ram.
9. Unload the mold, open the mold.
10. Take out the final product and put new material in.
Technical parameter:
| Model | Unit | 100VF | 200VF | 250VF | 300VF |
| Clamping Force | Ton | 100 | 200 | 250 | 300 |
| Upper Platen Size | mm | 380*400 | 510*510 | 600*600 | 680*680 |
| Lower Platen Size | mm | 400*460 | 550*560 | 650*600 | 700*800 |
| Plunger stroke | mm | 200 | 250 | 250 | 300 |
| Distance of Thermo-plate | mm | 200 | 250 | 250 | 300 |
| Distance of Tie bar | mm | 490*230 | 640*310 | 745*310 | 785*380 |
| Die sinking type | 2RT-3RT-4RT-Track | ||||
| Max Operating Pressure | Mpa | 20 | 20 | 20 | 20 |
| Motor Power | hp | 7.5*2 | 10*2 | 10*2 | 10*2 |
| Electric Heating Power | Kw | 7.2*2 | 13.5*2 | 15.3*2 | 24*2 |
| Vacuum Pump Power | Kw | 3 | 3 | 3*2 | 3*2 |
| Total Power | Kw | 28.4 | 45 | 51.6 | 69 |
| Gross weight | Ton | 5 | 7.8 | 11 | 15.45 |
| Dimension | mm | L2500*W2150*H2080 | L2930*W2500*H2350 | L3190*W2930*H2495 | L3360*W2970*H2850 |
what products our machines can produce?
Guangzhou JuChuan Machinery Co.,Ltd, our factoryhas 22 years experience for the silicone rubber injection molding machines.
We sold machines to Thailand, Malaysia, Vietnam, Israel, Russia, Germany, Afghanistan, and Sudan before.
Our main products:
1.Silicone rubber injection molding machine,
2.Vertical hydraulic rubber injection machine,
3.Horizontal silicone rubber injection machine,
4.Liquid silicone injection molding machine,
5.Vacuum compression machine
6.Silicone rubber hot press machine.
Thailand exhibition show:
Our service:
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
